Aluminum Spacer 1/2'' OD x .192'' ID x 1-7/16'' Long

Aluminum Spacer 1/2'' OD x .192'' ID x 1-7/16'' Long
Title:
Aluminum Spacer 1/2'' OD x .192'' ID x 1-7/16'' Long
SKU: SP50-10-92
2-3 day lead time
Unit Price$2.97
Quantity Price Each (USD)
1-24
$2.97
25-249 $1.78
250-2499 $0.89
2500+ $0.30
Select Length:
Select Material:
Select Finish:
Title:
Aluminum Spacer 1/2'' OD x .192'' ID x 1-7/16'' Long
SKU: SP50-10-92
Aluminum Spacer 1/2'' OD x .192'' ID x 1-7/16'' Long
Description:

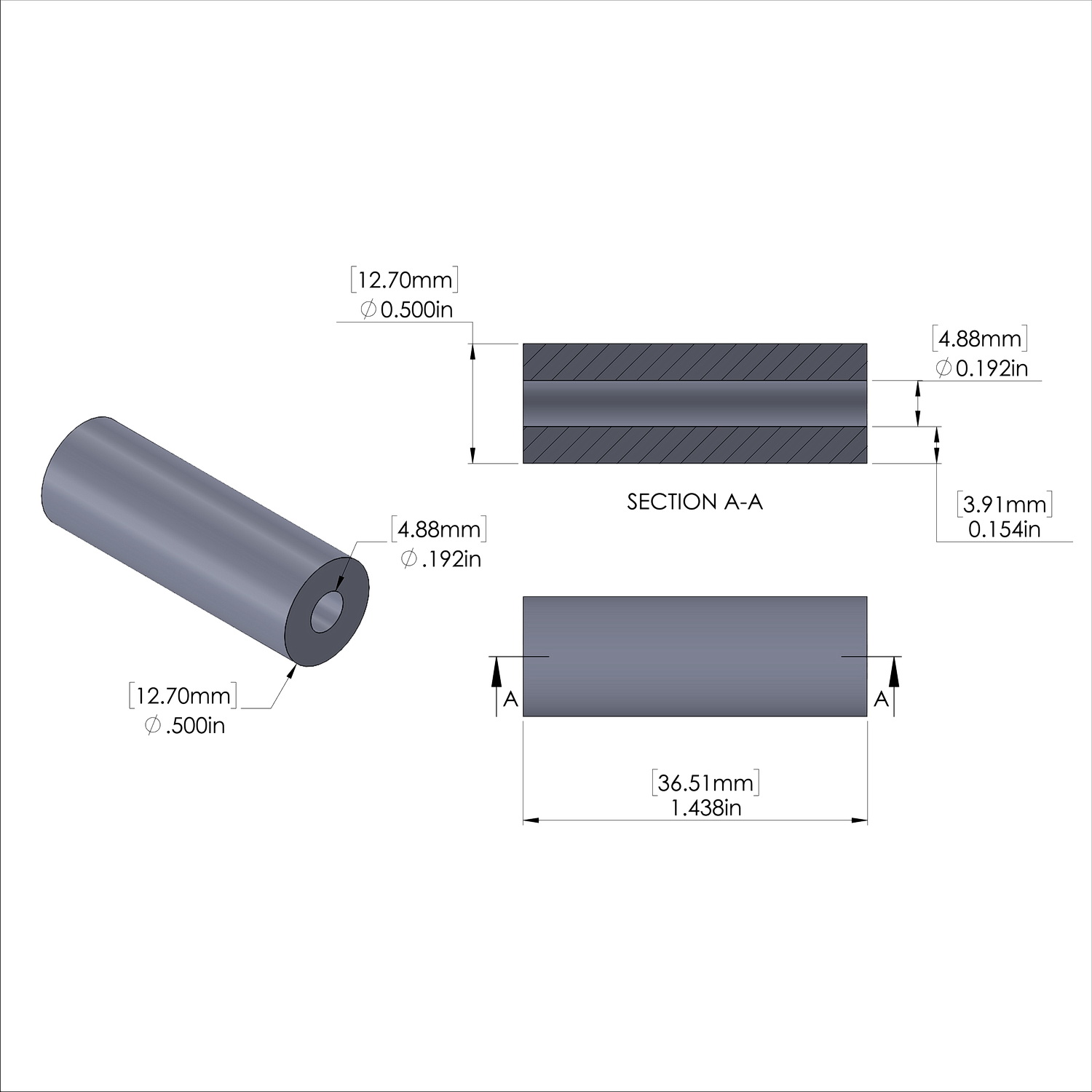

OD = 0.5'' (1/2'') 12.7mm   (Standard tolerance: +/-.005'', +/-.125mm)ID = 0.192'' 4.92mm   (Standard tolerance: +/-.003'', +/-.075mm)L = 1.438'' (1-7/16'') 36.513mm   (Standard tolerance: +/-.005'', +/-.125mm)Wall Thickness = 0.15'' 3.91mmWeight = 23.58 lbs/M 10.71 kg/K
Title:
Aluminum Spacer 1/2'' OD x .192'' ID x 1-7/16'' Long
SKU: SP50-10-92
Sku
SP50-10-92
Inside Diameter
0.192''
Outside Diameter
1/2''
Material
Aluminum
Material Grade
6061-T6
Finish
Plain Aluminum
Length
1-7/16''
Outer Diameter
1/2'' (12.7mm)
Screw/Bolt Size #10 Screw
Outside Diameter Tolerance +/-.005'', +/-.125mm
Inside Diameter Tolerance +/-.003'', +/-.075mm
Length Standard Tolerance +/-.005'', +/-.125mm
