Aluminum Spacer 1/2'' OD x .257'' ID x 1-1/8'' Long

Aluminum Spacer 1/2'' OD x .257'' ID x 1-1/8'' Long
Title:
Aluminum Spacer 1/2'' OD x .257'' ID x 1-1/8'' Long
SKU: SP50-14-72
2-3 day lead time
Unit Price $1.74
Quantity Price Each (USD)
1-24
$1.74
25-249 $1.04
250-2499 $0.52
2500+ $0.17
Select Length:
Select Material:
Select Finish:
Title:
Aluminum Spacer 1/2'' OD x .257'' ID x 1-1/8'' Long
SKU: SP50-14-72
Aluminum Spacer 1/2'' OD x .257'' ID x 1-1/8'' Long
Description:

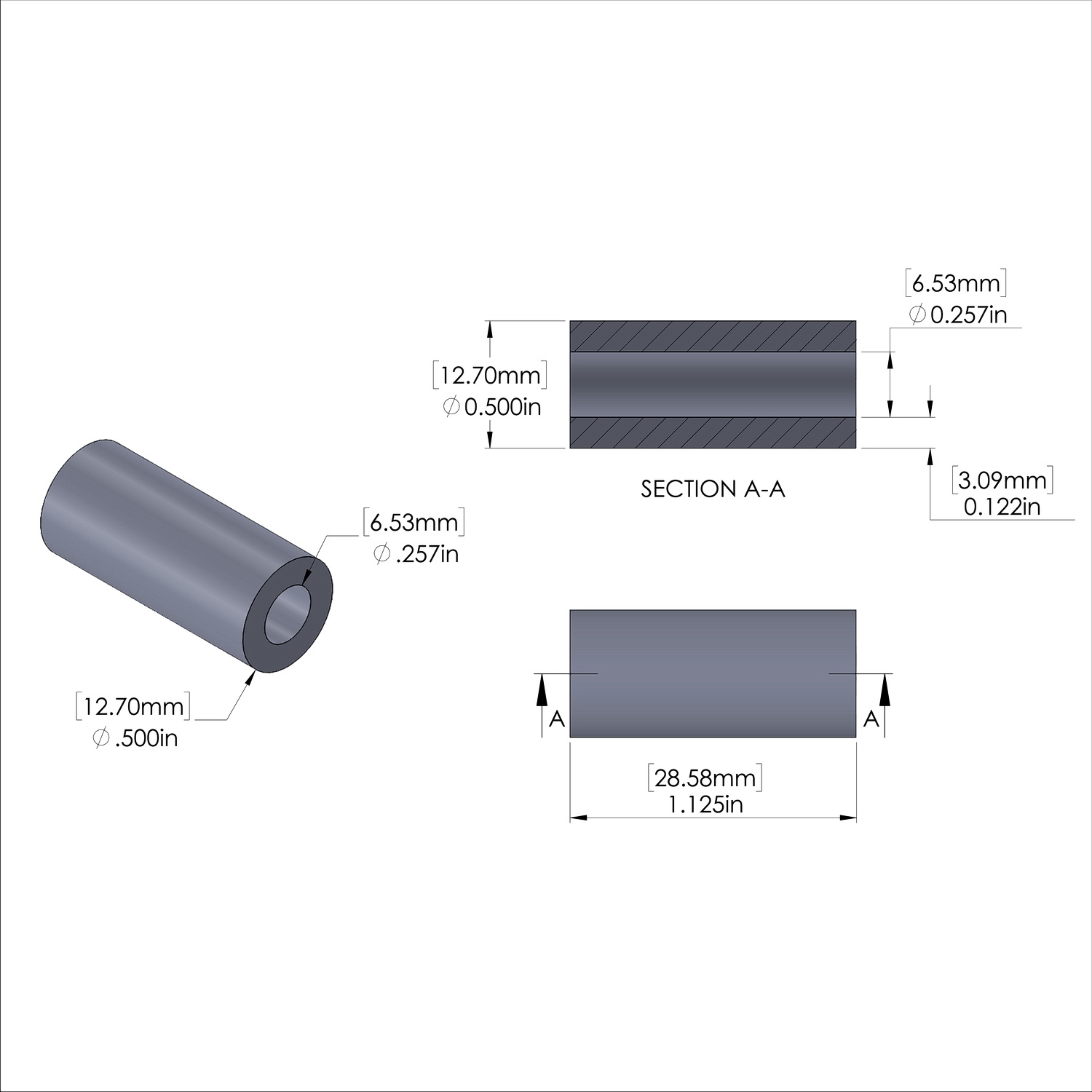

OD = 0.5'' (1/2'') 12.7mm   (Standard tolerance: +/-.005'', +/-.125mm)ID = 0.257'' 6.53mm   (Standard tolerance: +/-.003'', +/-.075mm)L = 1.125'' (1-1/8'') 28.575mm   (Standard tolerance: +/-.005'', +/-.125mm)Wall Thickness = 0.12'' 3.08mmWeight = 15.93 lbs/M 7.23 kg/K
Title:
Aluminum Spacer 1/2'' OD x .257'' ID x 1-1/8'' Long
SKU: SP50-14-72
Sku
SP50-14-72
Inside Diameter
0.257''
Outside Diameter
1/2''
Material
Aluminum
Material Grade
6061-T6
Finish
Plain Aluminum
Length
1-1/8''
Outer Diameter
1/2'' (12.7mm)
Screw/Bolt Size 1/4" Bolt
Outside Diameter Tolerance +/-.005'', +/-.125mm
Inside Diameter Tolerance +/-.003'', +/-.075mm
Length Standard Tolerance +/-.005'', +/-.125mm
