Aluminum Spacer 1/2'' OD x .319'' ID x 1 5/32

Aluminum Spacer 1/2'' OD x .319'' ID x 1 5/32
Title:
Aluminum Spacer 1/2'' OD x .319'' ID x 1 5/32
SKU: SP50-16-74
2-3 day lead time
Unit Price $1.78
Quantity Price Each (USD)
1-24
$1.78
25-249 $1.07
250-2499 $0.53
2500+ $0.18
Select Length:
Select Material:
Title:
Aluminum Spacer 1/2'' OD x .319'' ID x 1 5/32
SKU: SP50-16-74
Aluminum Spacer 1/2'' OD x .319'' ID x 1 5/32
Description:

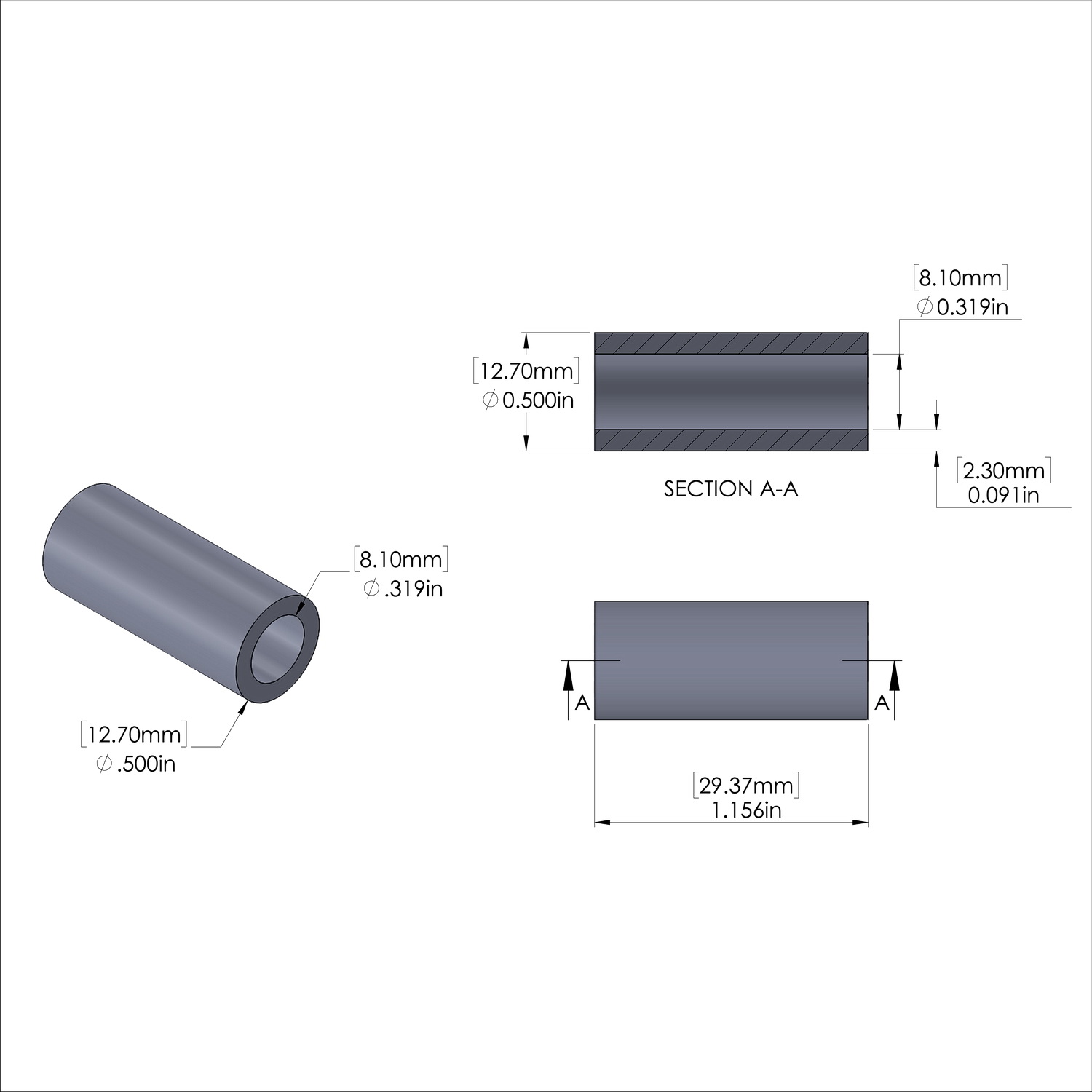

OD = 0.5'' (1/2'') 12.7mm   (Standard tolerance: +/-.005'', +/-.125mm)ID = 0.319'' 8.1mm   (Standard tolerance: +/-.003'', +/-.075mm)L = 1.25'' (1-5/32'') 29.36mm   (Standard tolerance: +/-.005'', +/-.125mm)Wall Thickness = 0.09'' 2.29mmWeight = 14.26 lbs/M 6.48 kg/K
Title:
Aluminum Spacer 1/2'' OD x .319'' ID x 1 5/32
SKU: SP50-16-74
Sku
SP50-16-74
Inside Diameter
0.319''
Outside Diameter
1/2''
Material
Aluminum
Material Grade
6061-T6
Length
1-5/32''
Outer Diameter
1/2'' (12.7mm)
Screw/Bolt Size 5/16" Bolt
Outside Diameter Tolerance +/-.005'', +/-.125mm
Inside Diameter Tolerance +/-.003'', +/-.075mm
Length Standard Tolerance +/-.005'', +/-.125mm
