Title:
Aluminum Spacer 1/2'' OD x .319'' ID x 9/64'' Long
SKU:
SP50-16-9
Description:

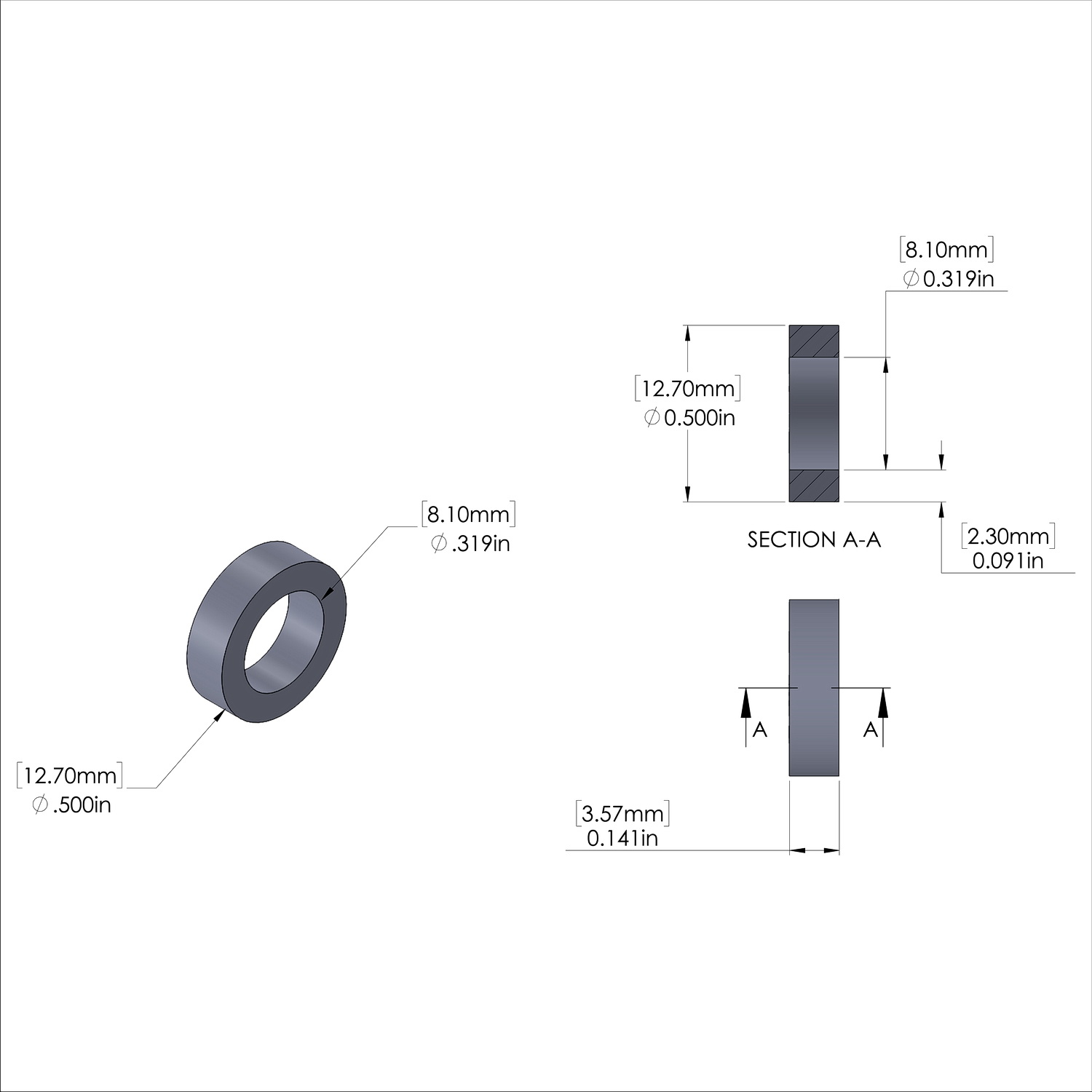

OD = 0.5'' (1/2'') 12.7mm (Standard tolerance: +/-.005'', +/-.125mm)ID = 0.319'' 8.1mm (Standard tolerance: +/-.003'', +/-.075mm)L = 0.141'' (9/64'') 3.581mm (Standard tolerance: +/-.005'', +/-.125mm)Wall Thickness = 0.09'' 2.29mmWeight = 1.61 lbs/M 0.73 kg/K
Title:
Aluminum Spacer 1/2'' OD x .319'' ID x 9/64'' Long
SKU:
SP50-16-9
| Sku |
SP50-16-9
|
| Inside Diameter |
0.319''
|
| Outside Diameter |
1/2''
|
| Material |
Aluminum
|
| Material Grade |
6061-T6
|
| Length |
9/64''
|
| Outer Diameter |
1/2'' (12.7mm)
|
| Screw/Bolt Size | 5/16" Bolt |
| Outside Diameter Tolerance | +/-.005'', +/-.125mm |
| Inside Diameter Tolerance | +/-.003'', +/-.075mm |
| Length Standard Tolerance | +/-.005'', +/-.125mm |
