Title:
Aluminum Spacer 1/4'' OD x .115'' ID x .380'' Long
SKU:
SP25-4-.380
2-3 day lead time
Unit Price$0.50
| Quantity | Price Each (USD) |
|---|---|
| 1-24 | $0.50 |
| 25-249 | $0.30 |
| 250-2499 | $0.15 |
| 2500+ | $0.05 |
Title:
Aluminum Spacer 1/4'' OD x .115'' ID x .380'' Long
SKU:
SP25-4-.380
Description:

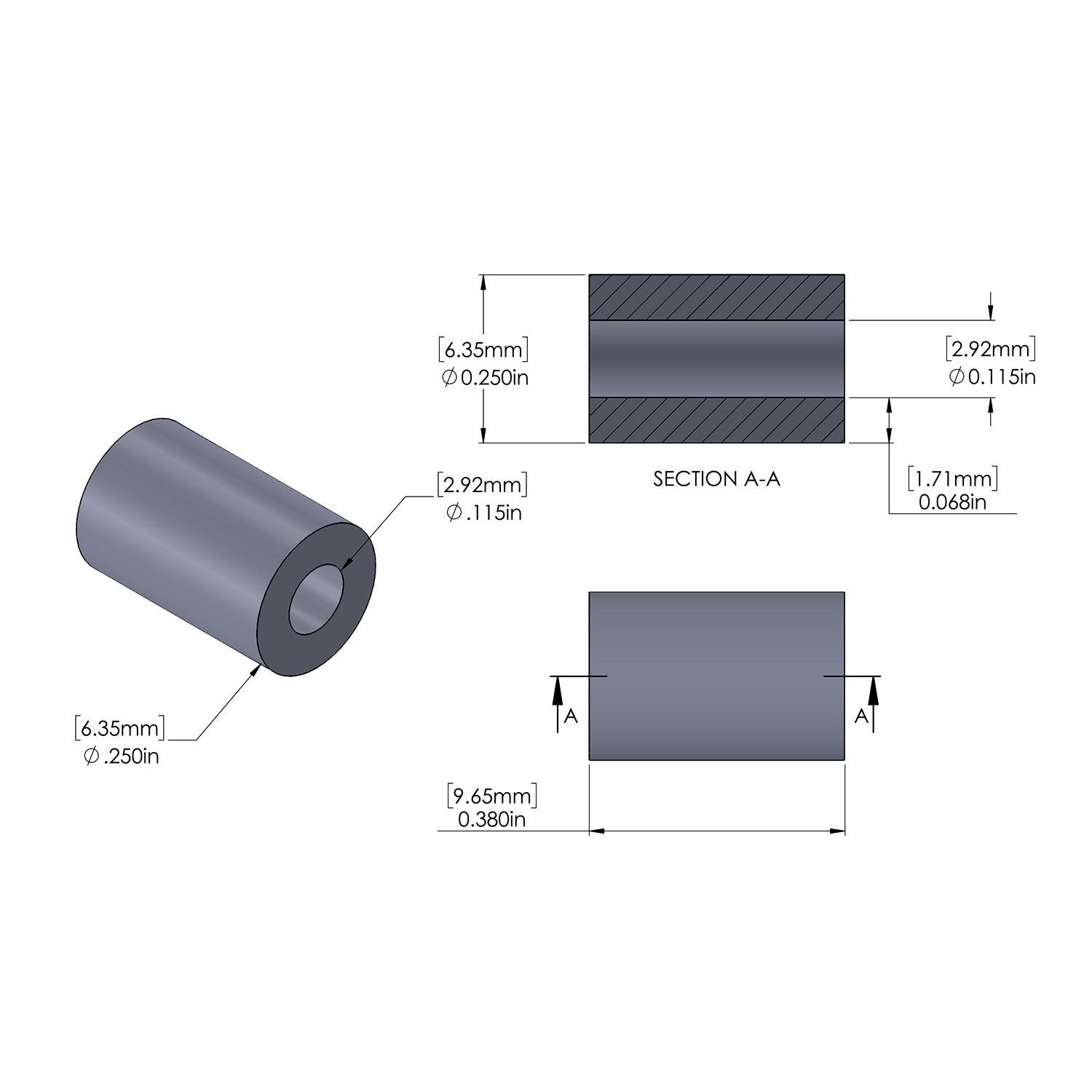

OD = 0.25'' (1/4'') 6.35mm (Standard tolerance: +/-.005'', +/-.125mm)ID = 0.115'' 2.92mm (Standard tolerance: +/-.003'', +/-.075mm)L = 0..380'' 9.65mm (Standard tolerance: +/-.005'', +/-.125mm)Wall Thickness = 0.06'' 1.71mmWeight = 1.45 lbs/M 0.659 kg/K
Title:
Aluminum Spacer 1/4'' OD x .115'' ID x .380'' Long
SKU:
SP25-4-.380
| Sku |
SP25-4-.380
|
| Inside Diameter |
0.115''
|
| Outside Diameter |
1/4''
|
| Material |
Aluminum
|
| Material Grade |
6061-T6
|
| Outer Diameter |
1/4'' (6.35mm)
|
| Screw/Bolt Size | #4 Screw |
| Outside Diameter Tolerance | +/-.005'', +/-.125mm |
| Inside Diameter Tolerance | +/-.003'', +/-.075mm |
| Length Standard Tolerance | +/-.005'', +/-.125mm |
