Aluminum Spacer 1/4'' OD x .141'' ID x 11/16'' Long

Aluminum Spacer 1/4'' OD x .141'' ID x 11/16'' Long
Title:
Aluminum Spacer 1/4'' OD x .141'' ID x 11/16'' Long
SKU: SP25-6-44
2-3 day lead time
Unit Price$0.66
Quantity Price Each (USD)
1-24
$0.66
25-249 $0.40
250-2499 $0.20
2500+ $0.07
Select Length:
Select Material:
Select Finish:
Title:
Aluminum Spacer 1/4'' OD x .141'' ID x 11/16'' Long
SKU: SP25-6-44
Aluminum Spacer 1/4'' OD x .141'' ID x 11/16'' Long
Description:

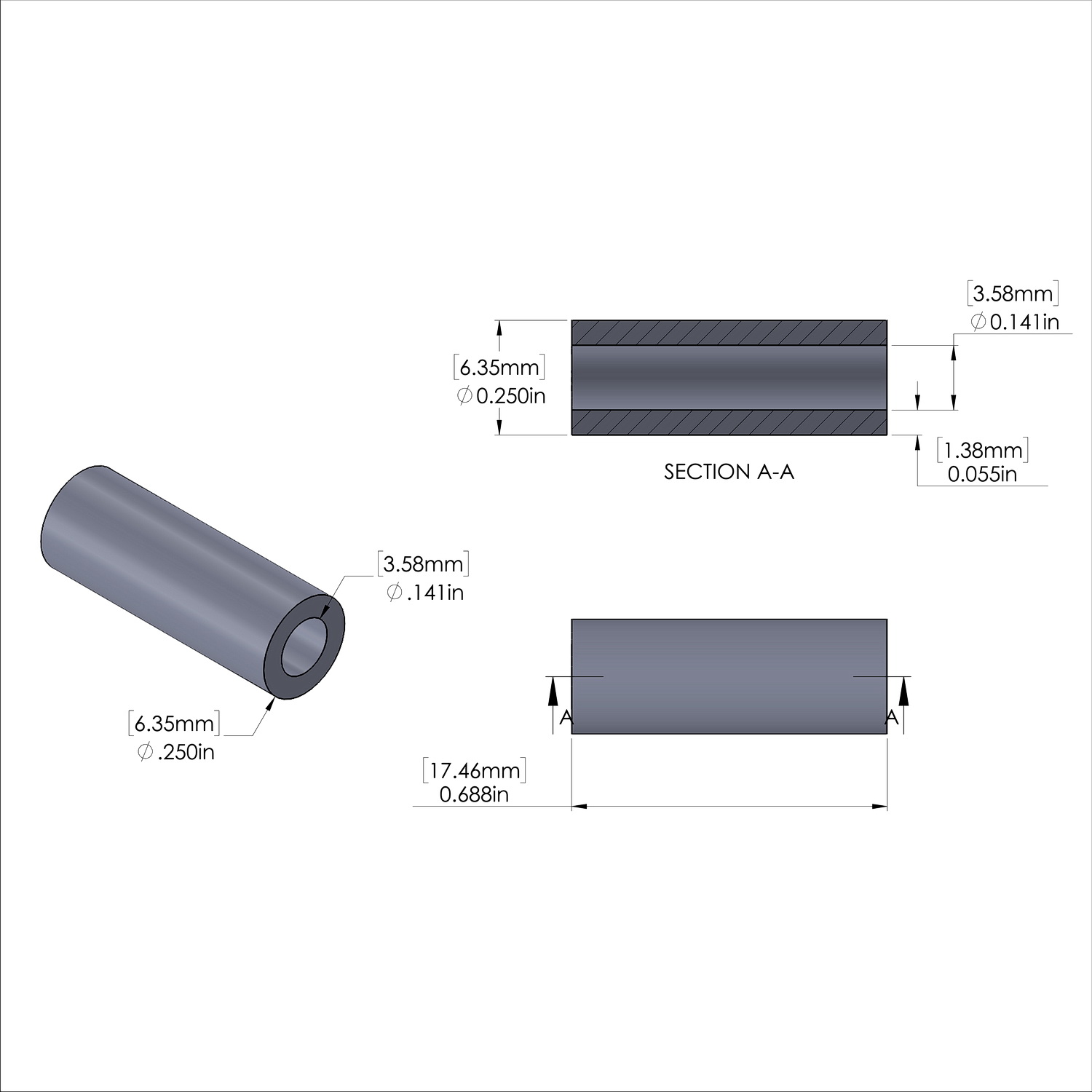

OD = 0.25'' (1/4'') 6.35mm   (Standard tolerance: +/-.005'', +/-.125mm)ID = 0.141'' 3.58mm   (Standard tolerance: +/-.003'', +/-.075mm)L = 0.688'' (11/16'') 17.463mm   (Standard tolerance: +/-.005'', +/-.125mm)Wall Thickness = 0.05'' 1.38mmWeight = 2.26 lbs/M 1.02 kg/K
Title:
Aluminum Spacer 1/4'' OD x .141'' ID x 11/16'' Long
SKU: SP25-6-44
Sku
SP25-6-44
Inside Diameter
0.141''
Outside Diameter
1/4''
Material
Aluminum
Material Grade
6061-T6
Length
11/16''
Outer Diameter
1/4'' (6.35mm)
Screw/Bolt Size #6 Screw
Outside Diameter Tolerance +/-.005'', +/-.125mm
Inside Diameter Tolerance +/-.003'', +/-.075mm
Length Standard Tolerance +/-.005'', +/-.125mm
