Title:
Aluminum Spacer 1/4'' OD x .141'' ID x 9/64'' Long
SKU:
SP25-6-9
Description:

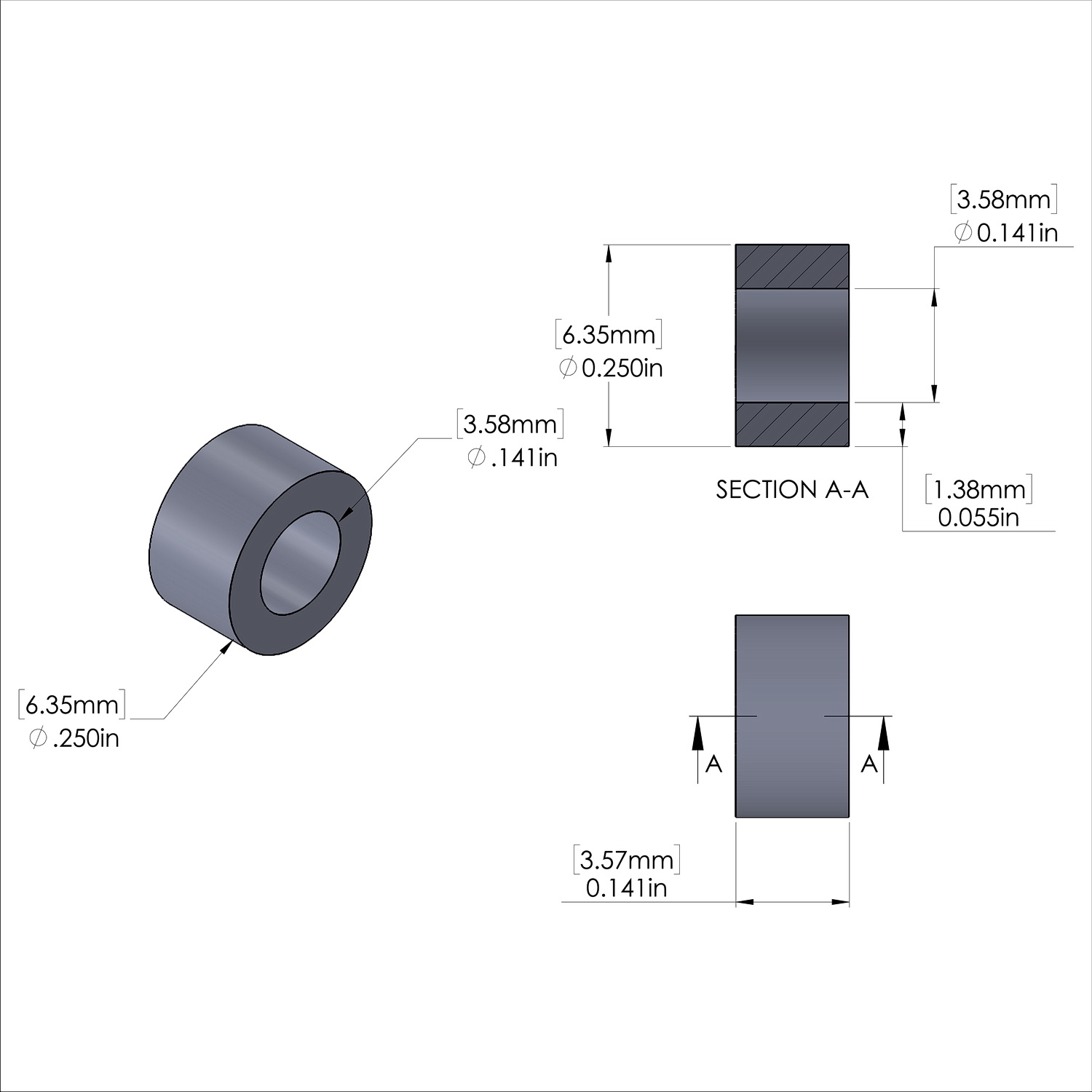

OD = 0.25'' (1/4'') 6.35mm (Standard tolerance: +/-.005'', +/-.125mm)ID = 0.141'' 3.58mm (Standard tolerance: +/-.003'', +/-.075mm)L = 0.141'' (9/64'') 3.581mm (Standard tolerance: +/-.005'', +/-.125mm)Wall Thickness = 0.05'' 1.38mmWeight = 0.46 lbs/M 0.21 kg/K
Title:
Aluminum Spacer 1/4'' OD x .141'' ID x 9/64'' Long
SKU:
SP25-6-9
| Sku |
SP25-6-9
|
| Inside Diameter |
0.141''
|
| Outside Diameter |
1/4''
|
| Material |
Aluminum
|
| Material Grade |
6061-T6
|
| Length |
9/64''
|
| Outer Diameter |
1/4'' (6.35mm)
|
| Screw/Bolt Size | #6 Screw |
| Outside Diameter Tolerance | +/-.005'', +/-.125mm |
| Inside Diameter Tolerance | +/-.003'', +/-.075mm |
| Length Standard Tolerance | +/-.005'', +/-.125mm |
