Aluminum Spacer 1/4'' OD x .172'' ID x 1.000'' Long

Aluminum Spacer 1/4'' OD x .172'' ID x 1.000'' Long
Title:
Aluminum Spacer 1/4'' OD x .172'' ID x 1.000'' Long
SKU: SP25-8-64
2-3 day lead time
Unit Price$0.73
Quantity Price Each (USD)
1-24
$0.73
25-249 $0.44
250-2499 $0.22
2500+ $0.07
Select Length:
Select Material:
Select Finish:
Title:
Aluminum Spacer 1/4'' OD x .172'' ID x 1.000'' Long
SKU: SP25-8-64
Aluminum Spacer 1/4'' OD x .172'' ID x 1.000'' Long
Description:

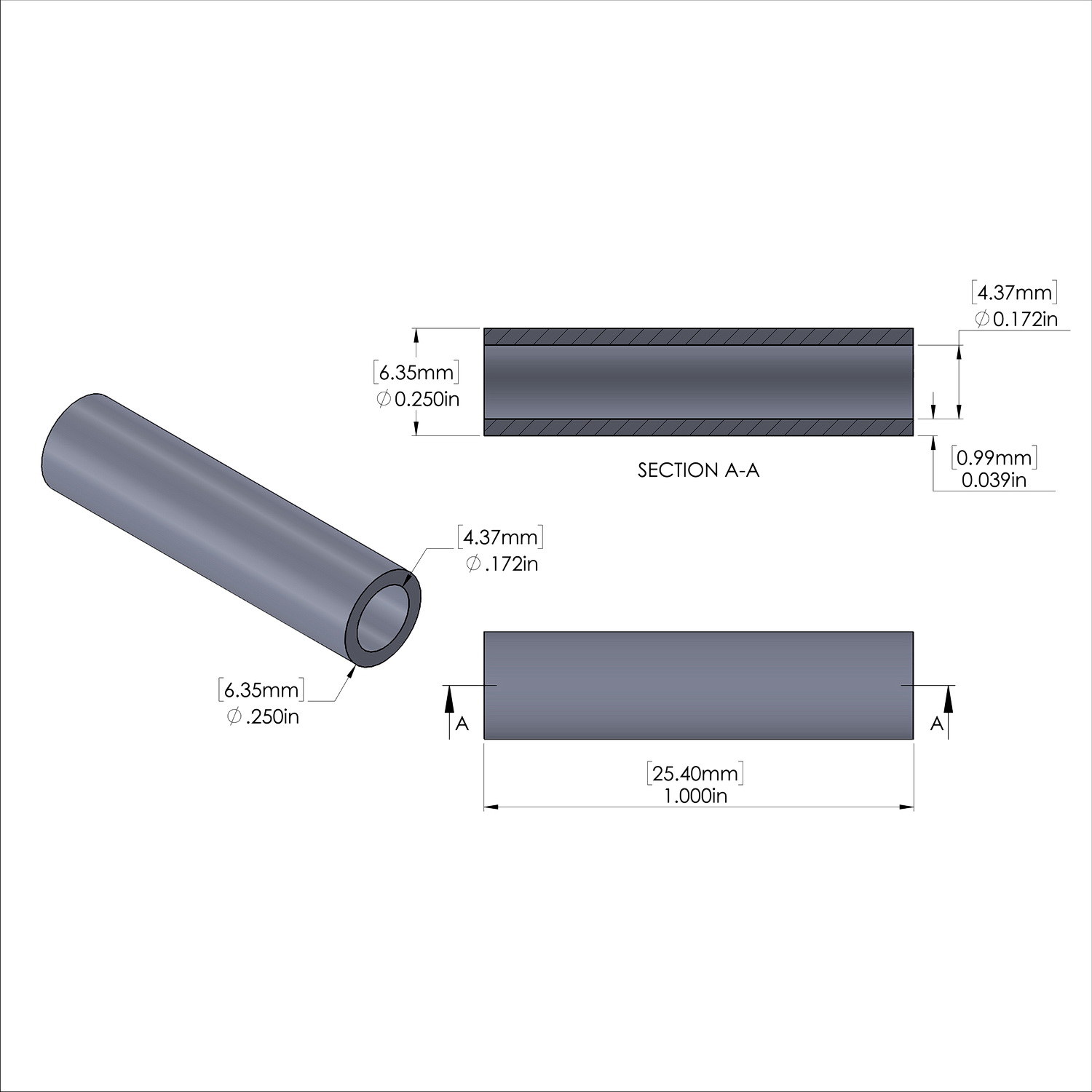

OD = 0.25'' (1/4'') 6.35mm   (Standard tolerance: +/-.005'', +/-.125mm)ID = 0.172'' 4.37mm   (Standard tolerance: +/-.003'', +/-.075mm)L = 1'' (1'') 25.4mm   (Standard tolerance: +/-.005'', +/-.125mm)Wall Thickness = 0.03'' 0.99mmWeight = 2.53 lbs/M 1.15 kg/K
Title:
Aluminum Spacer 1/4'' OD x .172'' ID x 1.000'' Long
SKU: SP25-8-64
Sku
SP25-8-64
Inside Diameter
0.172''
Outside Diameter
1/4''
Material
Aluminum
Material Grade
6061-T6
Length
1''
Outer Diameter
1/4'' (6.35mm)
Screw/Bolt Size #8 Screw
Outside Diameter Tolerance +/-.005'', +/-.125mm
Inside Diameter Tolerance +/-.003'', +/-.075mm
Length Standard Tolerance +/-.005'', +/-.125mm
