Title:

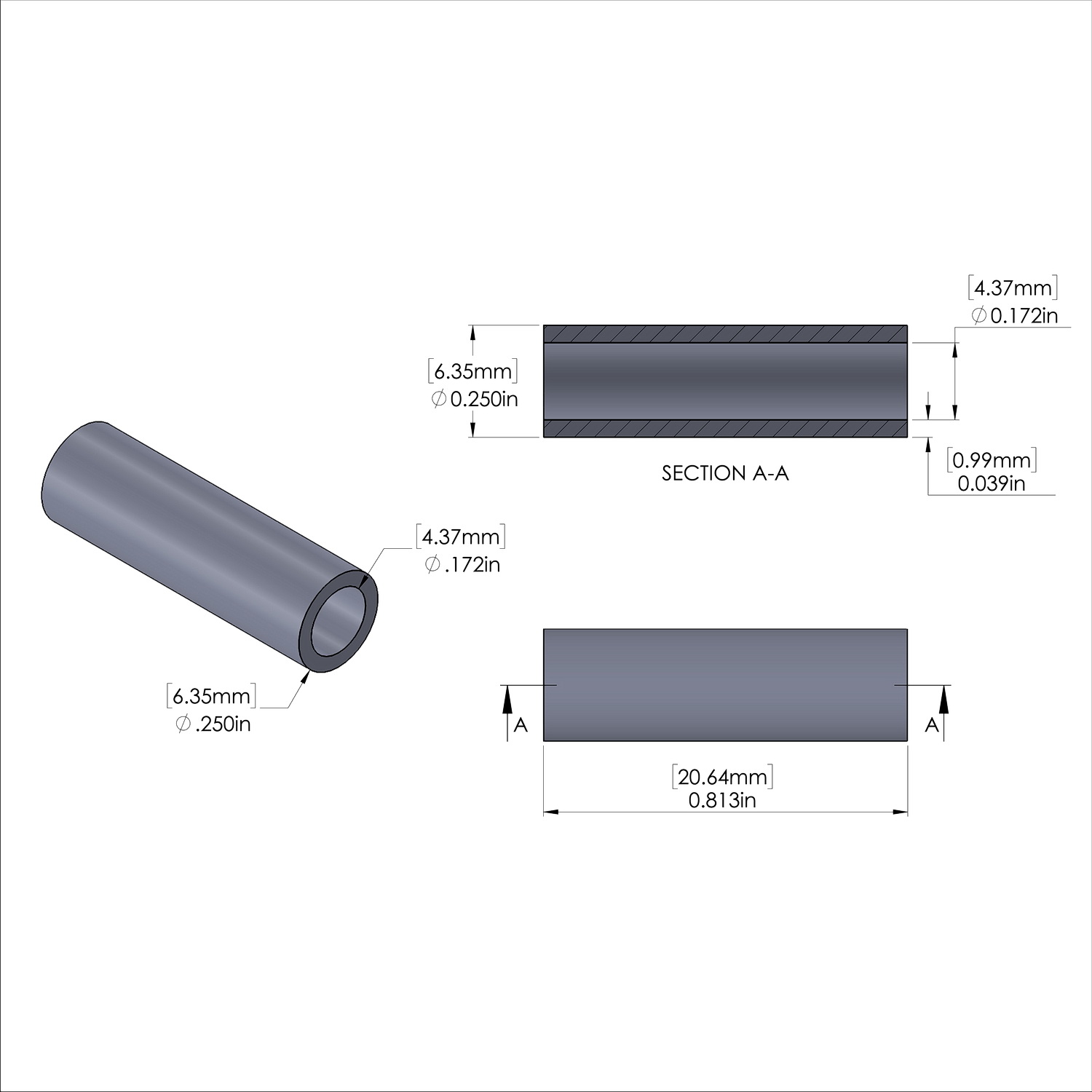

Aluminum Spacer 1/4'' OD x .172'' ID x 13/16'' Long
SKU:
SP25-8-52
Description:
OD = 0.25'' (1/4'') 6.35mm (Standard tolerance: +/-.005'', +/-.125mm)ID = 0.172'' 4.37mm (Standard tolerance: +/-.003'', +/-.075mm)L = 0.813'' (13/16'') 20.638mm (Standard tolerance: +/-.005'', +/-.125mm)Wall Thickness = 0.03'' 0.99mmWeight = 2.06 lbs/M 0.93 kg/K
Title:
Aluminum Spacer 1/4'' OD x .172'' ID x 13/16'' Long
SKU:
SP25-8-52
| Sku |
SP25-8-52
|
| Inside Diameter |
0.172''
|
| Outside Diameter |
1/4''
|
| Material |
Aluminum
|
| Material Grade |
6061-T6
|
| Length |
13/16''
|
| Outer Diameter |
1/4'' (6.35mm)
|
| Screw/Bolt Size | #8 Screw |
| Outside Diameter Tolerance | +/-.005'', +/-.125mm |
| Inside Diameter Tolerance | +/-.003'', +/-.075mm |
| Length Standard Tolerance | +/-.005'', +/-.125mm |
