Aluminum Spacer 1/4'' OD x .172'' ID x 17/64'' Long

Aluminum Spacer 1/4'' OD x .172'' ID x 17/64'' Long, Plain Aluminum Fi

  1. Home
  2. Aluminum Spacer 1/4'' OD x .172'' ID x 17/64'' Long, Plain Aluminum Finish
Aluminum Spacer 1/4'' OD x .172'' ID x 17/64'' Long, Plain Aluminum Finish
Title:
Aluminum Spacer 1/4'' OD x .172'' ID x 17/64'' Long, Plain Aluminum Finish
SKU: SP25-8-17
2-3 day lead time
Unit Price$0.58
Quantity Price Each (USD)
1-24
$0.58
25-249 $0.41
250-2499 $0.35
2500+ $0.29
Select Length:
Select Material:
Select Finish:

Plain Aluminum

Title:
Aluminum Spacer 1/4'' OD x .172'' ID x 17/64'' Long, Plain Aluminum Finish
SKU: SP25-8-17
Aluminum Spacer 1/4'' OD x .172'' ID x 17/64'' Long, Plain Aluminum Finish
Description:

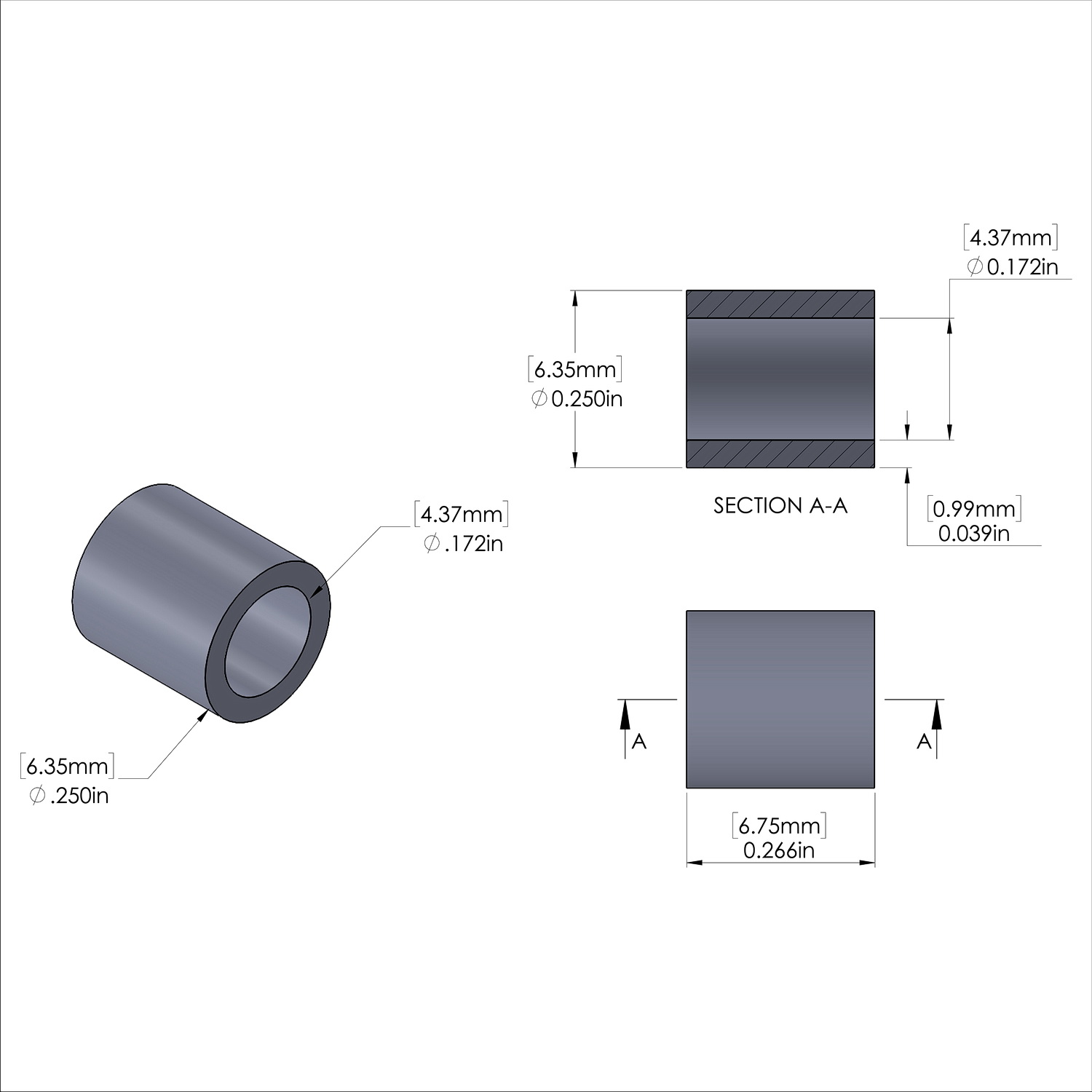

OD = 0.25'' (1/4'') 6.35mm   (Standard tolerance: +/-.005'', +/-.125mm)ID = 0.172'' 4.37mm   (Standard tolerance: +/-.003'', +/-.075mm)L = 0.266'' (17/64'') 6.746mm   (Standard tolerance: +/-.005'', +/-.125mm)Wall Thickness = 0.03'' 0.99mmWeight = 0.67 lbs/M 0.31 kg/K
Title:
Aluminum Spacer 1/4'' OD x .172'' ID x 17/64'' Long, Plain Aluminum Finish
SKU: SP25-8-17
Sku
SP25-8-17
Finish
Plain Aluminum
Material
Aluminum
Inside Diameter
0.172''
Outside Diameter
1/4''
Material Grade
6061-T6
Length
17/64''
Outer Diameter
1/4'' (6.35mm)
Screw/Bolt Size #8 Screw
Outside Diameter Tolerance +/-.005'', +/-.125mm
Inside Diameter Tolerance +/-.003'', +/-.075mm
Length Standard Tolerance +/-.005'', +/-.125mm
