Aluminum Spacer 1/4'' OD x .172'' ID x .800'' Long

Aluminum Spacer 1/4'' OD x .172'' ID x .800'' Long
Title:
Aluminum Spacer 1/4'' OD x .172'' ID x .800'' Long
SKU: SP25-8-.800
2-3 day lead time
Unit Price$4.92
Quantity Price Each (USD)
1-24
$4.92
25-249 $2.95
250-2499 $1.48
2500+ $0.49
Select Length:
Select Finish:
Title:
Aluminum Spacer 1/4'' OD x .172'' ID x .800'' Long
SKU: SP25-8-.800
Aluminum Spacer 1/4'' OD x .172'' ID x .800'' Long
Description:

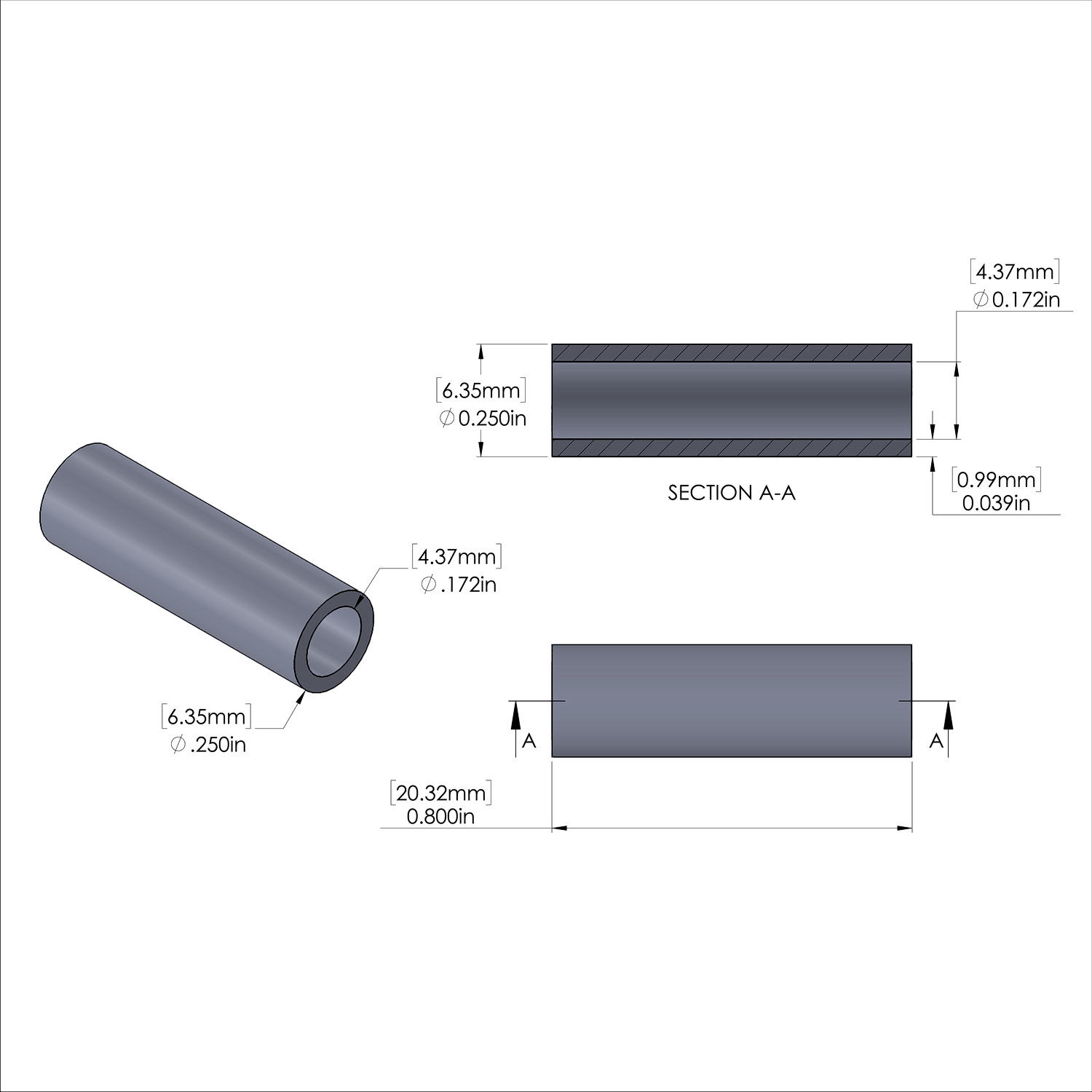

OD = 0.25'' (1/4'') 6.35mm   (Standard tolerance: +/-.005'', +/-.125mm)ID = 0.172'' 4.37mm   (Standard tolerance: +/-.003'', +/-.075mm)L = 0.800''  20.32mm   (Standard tolerance: +/-.005'', +/-.125mm)Wall Thickness = 0.03'' 0.99mmWeight = 2.06 lbs/M 0.93 kg/K
Title:
Aluminum Spacer 1/4'' OD x .172'' ID x .800'' Long
SKU: SP25-8-.800
Sku
SP25-8-.800
Inside Diameter
0.172''
Outside Diameter
1/4''
Material
Aluminum
Material Grade
6061-T6
Outer Diameter
1/4'' (6.35mm)
Screw/Bolt Size #8 Screw
Outside Diameter Tolerance +/-.005'', +/-.125mm
Inside Diameter Tolerance +/-.003'', +/-.075mm
Length Standard Tolerance +/-.005'', +/-.125mm
