Aluminum Spacer 1/4'' OD x .192'' ID x 9/32'' Long

Aluminum Spacer 1/4'' OD x .192'' ID x 9/32'' Long
Title:
Aluminum Spacer 1/4'' OD x .192'' ID x 9/32'' Long
SKU: SP25-10-18
2-3 day lead time
Unit Price $0.60
Quantity Price Each (USD)
1-24
$0.60
25-249 $0.36
250-2499 $0.18
2500+ $0.06
Select Length:
Select Material:
Select Finish:
Title:
Aluminum Spacer 1/4'' OD x .192'' ID x 9/32'' Long
SKU: SP25-10-18
Aluminum Spacer 1/4'' OD x .192'' ID x 9/32'' Long
Description:

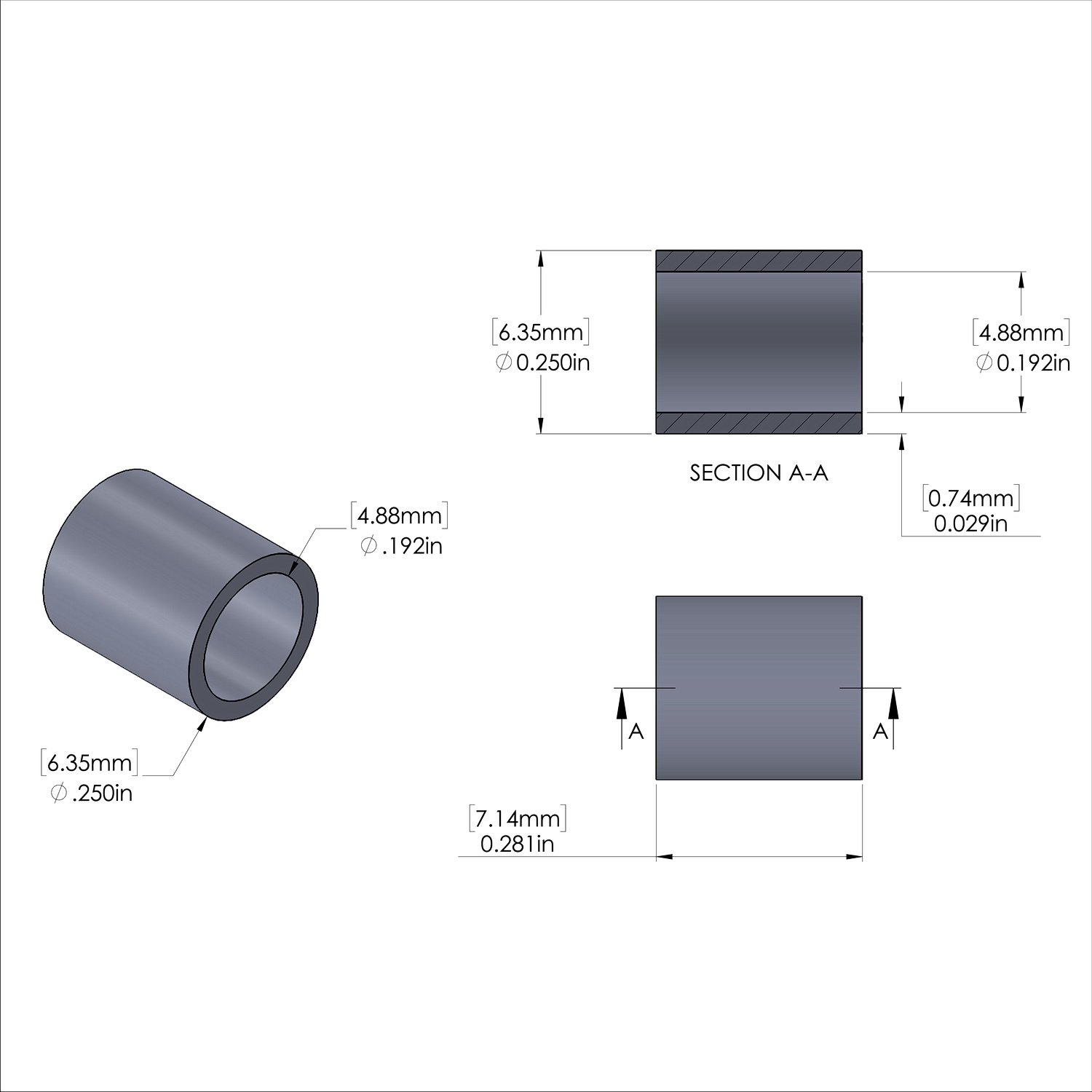

OD = 0.250'' (1/4'') 6.35mm   (Standard tolerance: +/-.005'', +/-.125mm)ID = 0.192'' 4.92mm   (Standard tolerance: +/-.003'', +/-.075mm)L = 0.281'' (9/32'') 7.137mm   (Standard tolerance: +/-.005'', +/-.125mm)Wall Thickness = 0.06'' 1.53mmWeight = .6 lbs/M 0.3 kg/K
Title:
Aluminum Spacer 1/4'' OD x .192'' ID x 9/32'' Long
SKU: SP25-10-18
Sku
SP25-10-18
Inside Diameter
0.192''
Outside Diameter
1/4''
Material
Aluminum
Material Grade
6061-T6
Length
9/32''
Outer Diameter
1/4'' (6.35mm)
Screw/Bolt Size #10 Screw
Outside Diameter Tolerance +/-.005'', +/-.125mm
Inside Diameter Tolerance +/-.003'', +/-.075mm
Length Standard Tolerance +/-.005'', +/-.125mm
Title:
Aluminum Spacer 1/4'' OD x .192'' ID x 9/32'' Long
SKU: SP25-10-18
Title:
Aluminum Spacer 1/4'' OD x .192'' ID x 9/32'' Long
SKU: SP25-10-18
Title:
Aluminum Spacer 1/4'' OD x .192'' ID x 9/32'' Long
SKU: SP25-10-18
