Aluminum Spacer 15.7mm OD x 12.2mm ID x 22.3mm Long, Plain Aluminum Fi
Title:
Aluminum Spacer 15.7mm OD x 12.2mm ID x 22.3mm Long, Plain Aluminum Finish
SKU:
SPAS16-12-22.3
2-3 day lead time
Unit Price$4.06
| Quantity | Price Each (USD) |
|---|---|
| 1-24 | $4.06 |
| 25-249 | $2.84 |
| 250-2499 | $2.44 |
| 2500+ | $2.03 |
Title:
Aluminum Spacer 15.7mm OD x 12.2mm ID x 22.3mm Long, Plain Aluminum Finish
SKU:
SPAS16-12-22.3
Description:

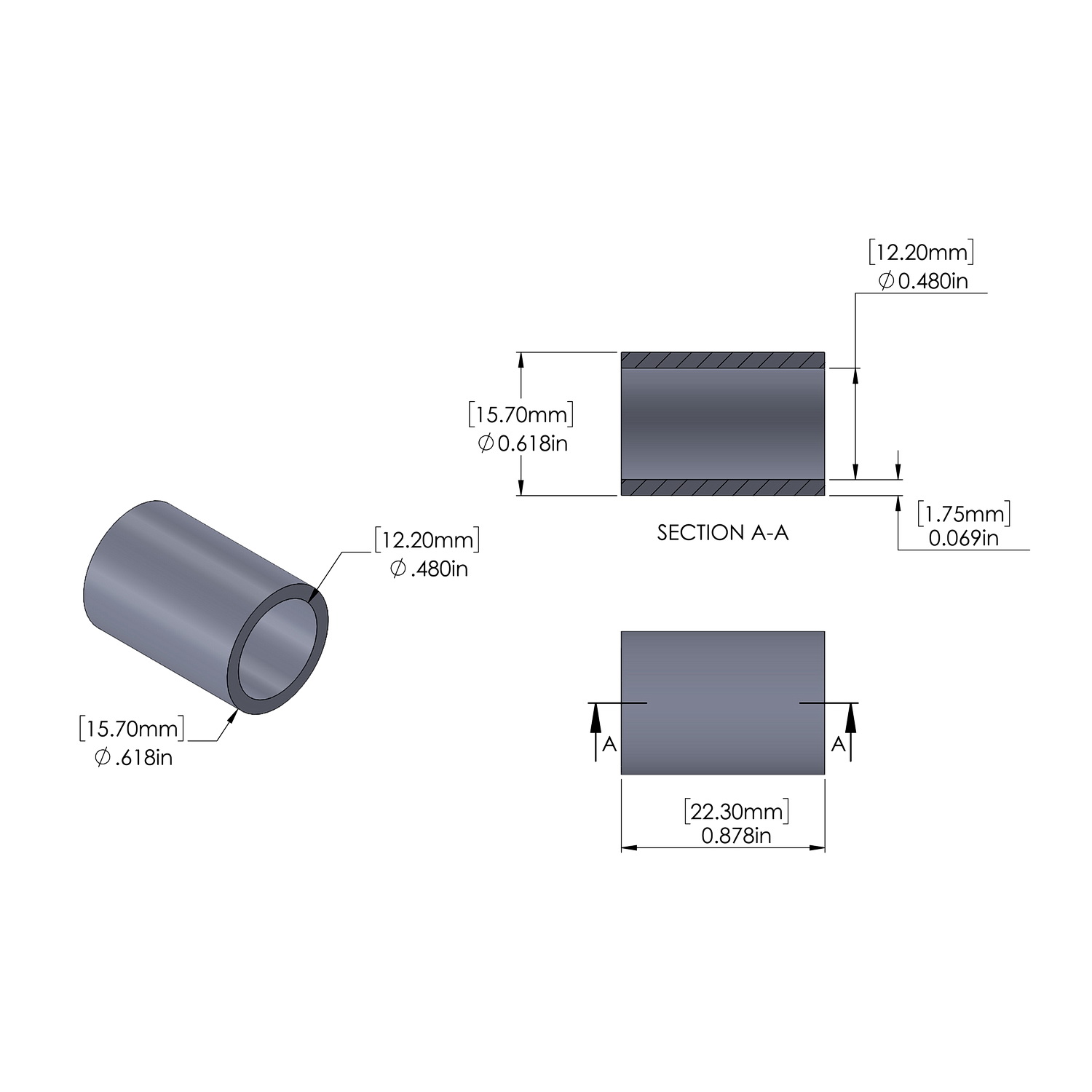

OD = 0.625'' (5/8'') 15.88mm (Standard tolerance: +/-.005'', +/-.125mm)ID = 0.480'' 12.2mm (Standard tolerance: +/-.003'', +/-.075mm)L = 0.878'' 22.3mm (Standard tolerance: +/-.005'', +/-.125mm)Wall Thickness = 0.073'' 1.84mmWeight = 10.5 lbs/M 4.75 kg/K
Title:
Aluminum Spacer 15.7mm OD x 12.2mm ID x 22.3mm Long, Plain Aluminum Finish
SKU:
SPAS16-12-22.3
| Sku |
SPAS16-12-22.3
|
| Finish |
Plain Aluminum
|
| Material |
Aluminum
|
| Inside Diameter |
12.2mm
|
| Outside Diameter |
15.7mm
|
| Material Grade |
6061-T6
|
| Length |
22.3mm
|
| Outer Diameter |
5/8'' (16mm)
|
| Screw/Bolt Size | 3/8" Bolt |
| Outside Diameter Tolerance | +/-.005'', +/-.125mm |
| Inside Diameter Tolerance | +/-.003'', +/-.075mm |
| Length Standard Tolerance | +/-.005'', +/-.125mm |
