Aluminum Spacer 15.7mm OD x 12.2mm ID x 22.4mm Long

Aluminum Spacer 15.7mm OD x 12.2mm ID x 22.4mm Long, Plain Aluminum Fi

  1. Home
  2. Aluminum Spacer 15.7mm OD x 12.2mm ID x 22.4mm Long, Plain Aluminum Finish
Aluminum Spacer 15.7mm OD x 12.2mm ID x 22.4mm Long, Plain Aluminum Finish
Title:
Aluminum Spacer 15.7mm OD x 12.2mm ID x 22.4mm Long, Plain Aluminum Finish
SKU: SPAS16-12-22.4
2-3 day lead time
Unit Price$3.45
Quantity Price Each (USD)
1-24
$3.45
25-249 $2.42
250-2499 $2.07
2500+ $1.73
Select Length:
Select Material:
Select Finish:

Plain Aluminum

Title:
Aluminum Spacer 15.7mm OD x 12.2mm ID x 22.4mm Long, Plain Aluminum Finish
SKU: SPAS16-12-22.4
Aluminum Spacer 15.7mm OD x 12.2mm ID x 22.4mm Long, Plain Aluminum Finish
Description:

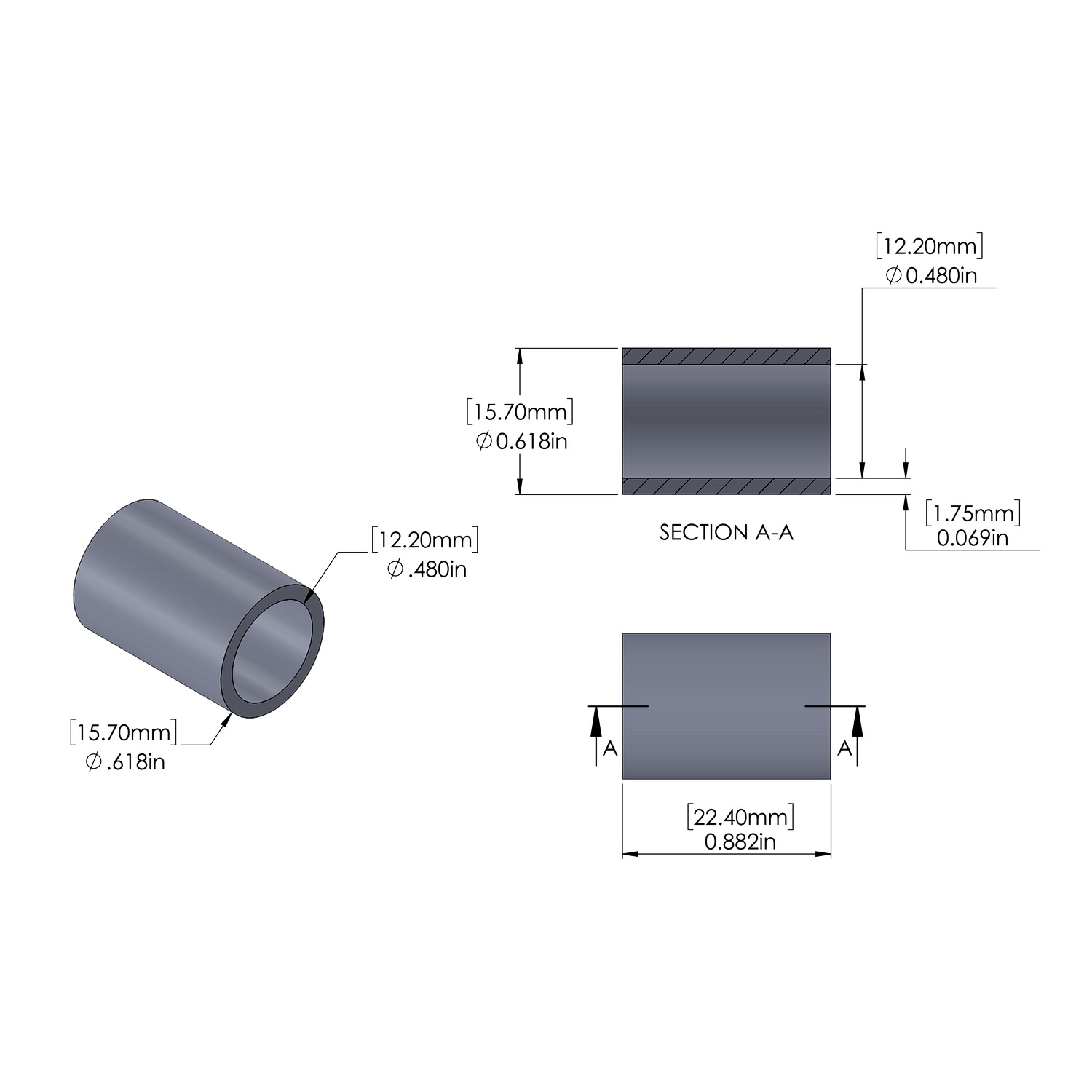

OD = 0.625'' (5/8'') 15.88mm   (Standard tolerance: +/-.005'', +/-.125mm)ID = 0.480'' 12.2mm   (Standard tolerance: +/-.003'', +/-.075mm)L = 0.882''  22.4mm   (Standard tolerance: +/-.005'', +/-.125mm)Wall Thickness = 0.073'' 1.84mmWeight = 11.1 lbs/M 5.05 kg/K
Title:
Aluminum Spacer 15.7mm OD x 12.2mm ID x 22.4mm Long, Plain Aluminum Finish
SKU: SPAS16-12-22.4
Sku
SPAS16-12-22.4
Finish
Plain Aluminum
Material
Aluminum
Inside Diameter
12.2mm
Outside Diameter
15.7mm
Material Grade
6061-T6
Length
22.4mm
Outer Diameter
5/8'' (16mm)
Screw/Bolt Size 3/8" Bolt
Outside Diameter Tolerance +/-.005'', +/-.125mm
Inside Diameter Tolerance +/-.003'', +/-.075mm
Length Standard Tolerance +/-.005'', +/-.125mm
