Aluminum Spacer 15.8mm OD x 10.2mm ID x 21.672mm Long

Aluminum Spacer 15.8mm OD x 10.2mm ID x 21.672mm Long, Plain Aluminum

Aluminum Spacer 15.8mm OD x 10.2mm ID x 21.672mm Long, Plain Aluminum Finish
Title:
Aluminum Spacer 15.8mm OD x 10.2mm ID x 21.672mm Long, Plain Aluminum Finish
SKU: SPAS16-10-21.672
2-3 day lead time
Unit Price$2.65
Quantity Price Each (USD)
1-24
$2.65
25-249 $1.85
250-2499 $1.59
2500+ $1.32
Select Length:
Select Material:
Select Finish:

Plain Aluminum

Title:
Aluminum Spacer 15.8mm OD x 10.2mm ID x 21.672mm Long, Plain Aluminum Finish
SKU: SPAS16-10-21.672
Aluminum Spacer 15.8mm OD x 10.2mm ID x 21.672mm Long, Plain Aluminum Finish
Description:

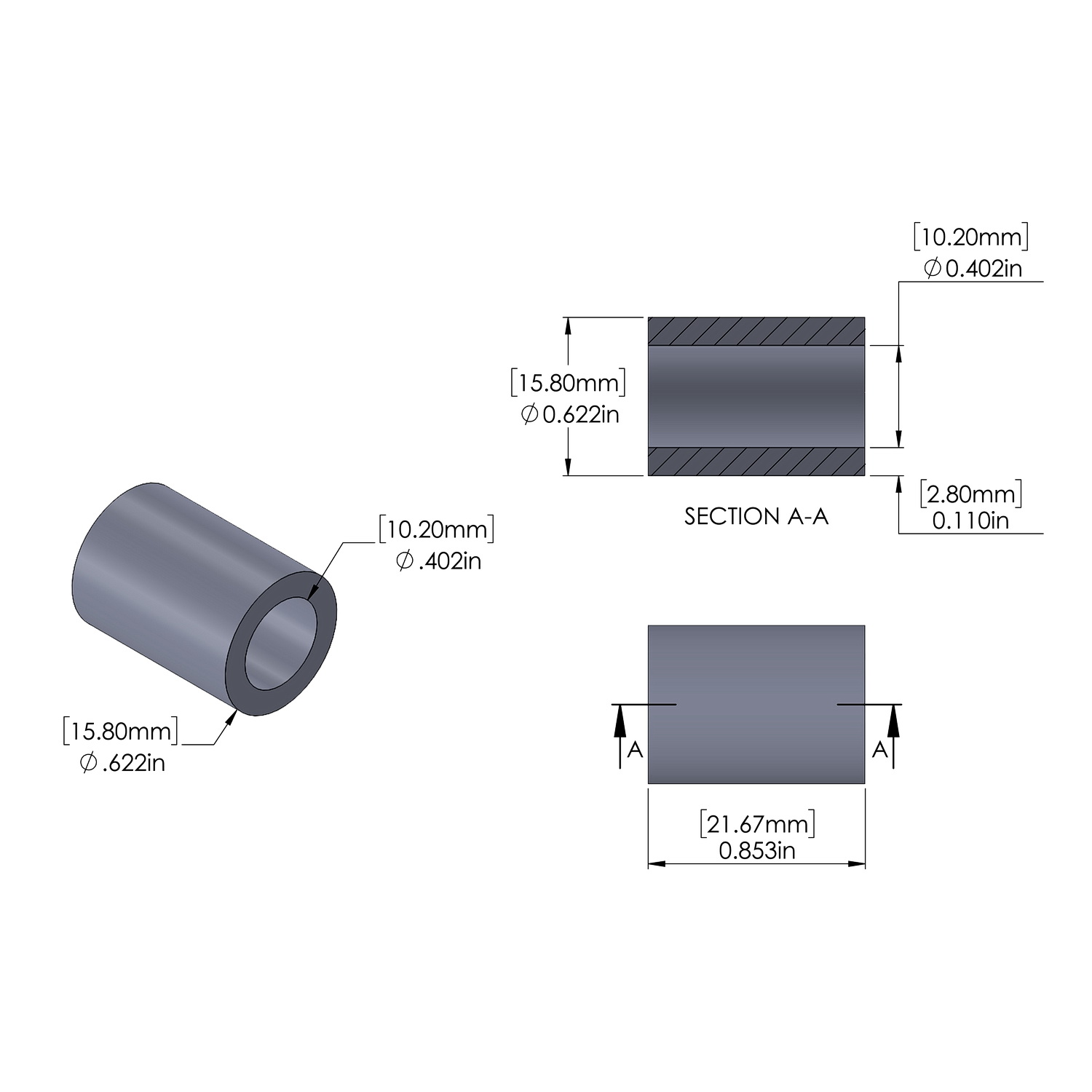

OD = 0.625'' (5/8'') 15.88mm   (Standard tolerance: +/-.005'', +/-.125mm)ID = 0.402'' 10.2mm   (Standard tolerance: +/-.003'', +/-.075mm)L = 0.853''  21.672mm   (Standard tolerance: +/-.005'', +/-.125mm)Wall Thickness = 0.112'' 2.84mmWeight = 16.58 lbs/M 7.53 kg/K
Title:
Aluminum Spacer 15.8mm OD x 10.2mm ID x 21.672mm Long, Plain Aluminum Finish
SKU: SPAS16-10-21.672
Sku
SPAS16-10-21.672
Finish
Plain Aluminum
Material
Aluminum
Inside Diameter
10.2mm
Outside Diameter
15.8mm
Material Grade
6061-T6
Length
21.672mm
Outer Diameter
5/8'' (16mm)
Screw/Bolt Size 3/8" Bolt
Outside Diameter Tolerance +/-.005'', +/-.125mm
Inside Diameter Tolerance +/-.003'', +/-.075mm
Length Standard Tolerance +/-.005'', +/-.125mm
