Aluminum Spacer 1/8'' OD x .067ID x 3/16'' Long, Plain Aluminum Finish
Title:
Aluminum Spacer 1/8'' OD x .067ID x 3/16'' Long, Plain Aluminum Finish
SKU: SP13-.067-12
2-3 day lead time
Unit Price$0.75
Quantity Price Each (USD)
1-24
$0.75
25-249 $0.53
250-2499 $0.45
2500+ $0.38
Select Length:
Select Material:
Select Finish:

Black Anodized

Plain Aluminum

Title:
Aluminum Spacer 1/8'' OD x .067ID x 3/16'' Long, Plain Aluminum Finish
SKU: SP13-.067-12
Aluminum Spacer 1/8'' OD x .067ID x 3/16'' Long, Plain Aluminum Finish
Description:

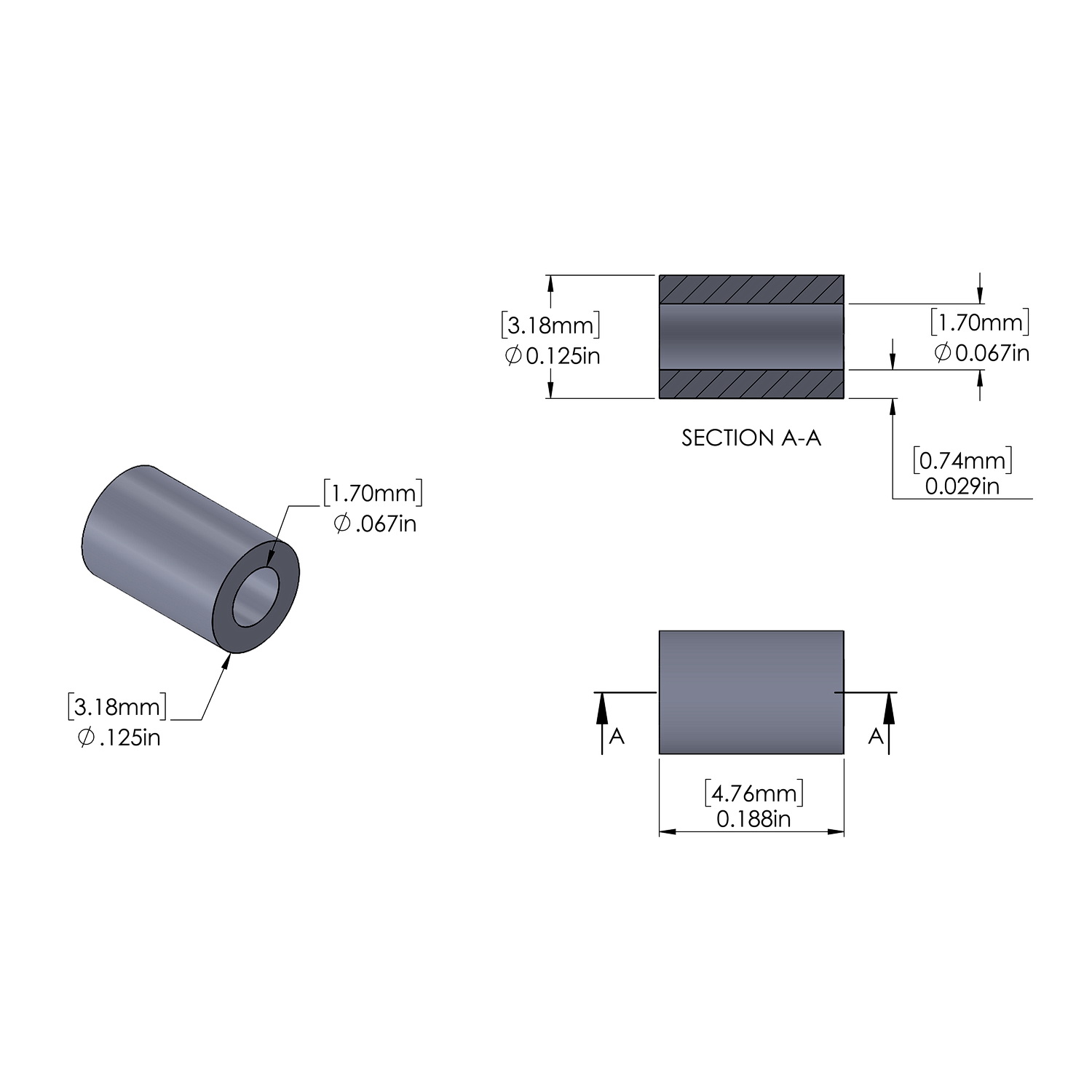

OD = 0.125'' (1/8'') 3.18mm   (Standard tolerance: +/-.005'', +/-.125mm)ID = 0.067'' 1.702mm   (Standard tolerance: +/-.003'', +/-.075mm)L = 0.188'' (3/16'') 4.763mm   (Standard tolerance: +/-.005'', +/-.125mm)Wall Thickness = 0.029'' .737mmWeight = 0.73 lbs/M 0.35 kg/K
Title:
Aluminum Spacer 1/8'' OD x .067ID x 3/16'' Long, Plain Aluminum Finish
SKU: SP13-.067-12
Sku
SP13-.067-12
Finish
Plain Aluminum
Material
Aluminum
Inside Diameter
0.067''
Outside Diameter
1/8''
Material Grade
6061-T6
Length
3/16''
Outer Diameter
1/8'' (3.17mm)
Screw/Bolt Size #2 Screw
Outside Diameter Tolerance +/-.005'', +/-.125mm
Inside Diameter Tolerance +/-.003'', +/-.075mm
Length Standard Tolerance +/-.005'', +/-.125mm
