Aluminum Spacer 1/8'' OD x .0905ID x 3/16'' Long

Aluminum Spacer 1/8'' OD x .0905ID x 3/16'' Long
Title:
Aluminum Spacer 1/8'' OD x .0905ID x 3/16'' Long
SKU: SP13-2-12
2-3 day lead time
Unit Price$0.56
Quantity Price Each (USD)
1-24
$0.56
25-249 $0.34
250-2499 $0.17
2500+ $0.06
Select Length:
Select Material:
Select Finish:
Title:
Aluminum Spacer 1/8'' OD x .0905ID x 3/16'' Long
SKU: SP13-2-12
Aluminum Spacer 1/8'' OD x .0905ID x 3/16'' Long
Description:

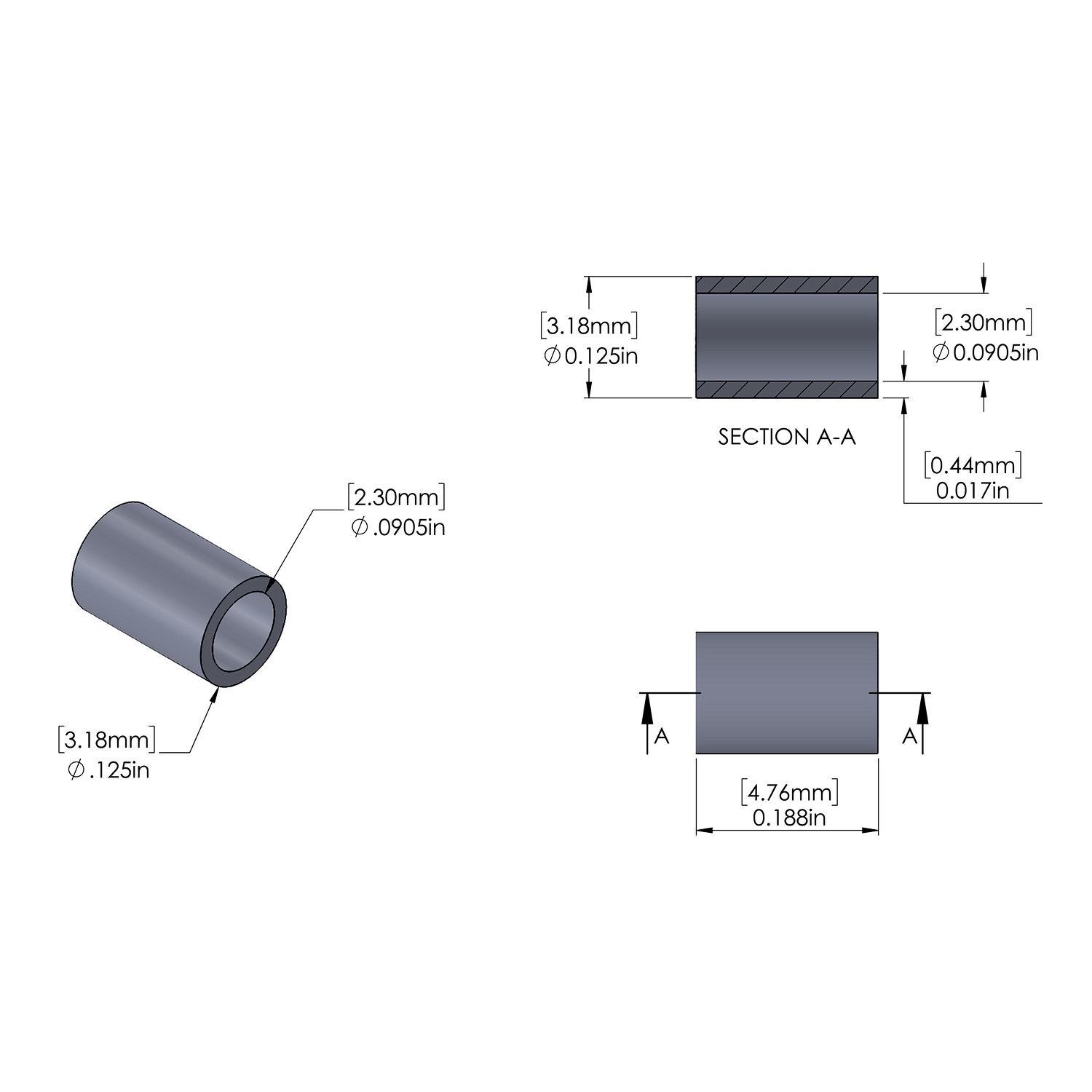

OD = 0.125'' (1/8'') 3.18mm   (Standard tolerance: +/-.005'', +/-.125mm)ID = 0.0905'' 2.3mm   (Standard tolerance: +/-.003'', +/-.075mm)L = 0.188'' (3/16'') 4.763mm   (Standard tolerance: +/-.005'', +/-.125mm)Wall Thickness = 0.018'' .457mmWeight = 0.71 lbs/M 0.32 kg/K
Title:
Aluminum Spacer 1/8'' OD x .0905ID x 3/16'' Long
SKU: SP13-2-12
Sku
SP13-2-12
Inside Diameter
0.0905''
Outside Diameter
1/8''
Material
Aluminum
Material Grade
6061-T6
Finish
Plain Aluminum
Length
3/16''
Outer Diameter
1/8'' (3.17mm)
Screw/Bolt Size #2 Screw
Outside Diameter Tolerance +/-.005'', +/-.125mm
Inside Diameter Tolerance +/-.003'', +/-.075mm
Length Standard Tolerance +/-.005'', +/-.125mm
