Aluminum Spacer 3/16'' OD x .0905'' ID x 13/64'' Long

Aluminum Spacer 3/16'' OD x .0905'' ID x 13/64'' Long, Plain Aluminum

  1. Home
  2. Aluminum Spacer 3/16'' OD x .0905'' ID x 13/64'' Long, Plain Aluminum Finish
Aluminum Spacer 3/16'' OD x .0905'' ID x 13/64'' Long, Plain Aluminum Finish
Title:
Aluminum Spacer 3/16'' OD x .0905'' ID x 13/64'' Long, Plain Aluminum Finish
SKU: SP19-2-13
2-3 day lead time
Unit Price$0.73
Quantity Price Each (USD)
1-24
$0.73
25-249 $0.51
250-2499 $0.44
2500+ $0.36
Select Length:
Select Material:
Select Finish:

Plain Aluminum

Title:
Aluminum Spacer 3/16'' OD x .0905'' ID x 13/64'' Long, Plain Aluminum Finish
SKU: SP19-2-13
Aluminum Spacer 3/16'' OD x .0905'' ID x 13/64'' Long, Plain Aluminum Finish
Description:

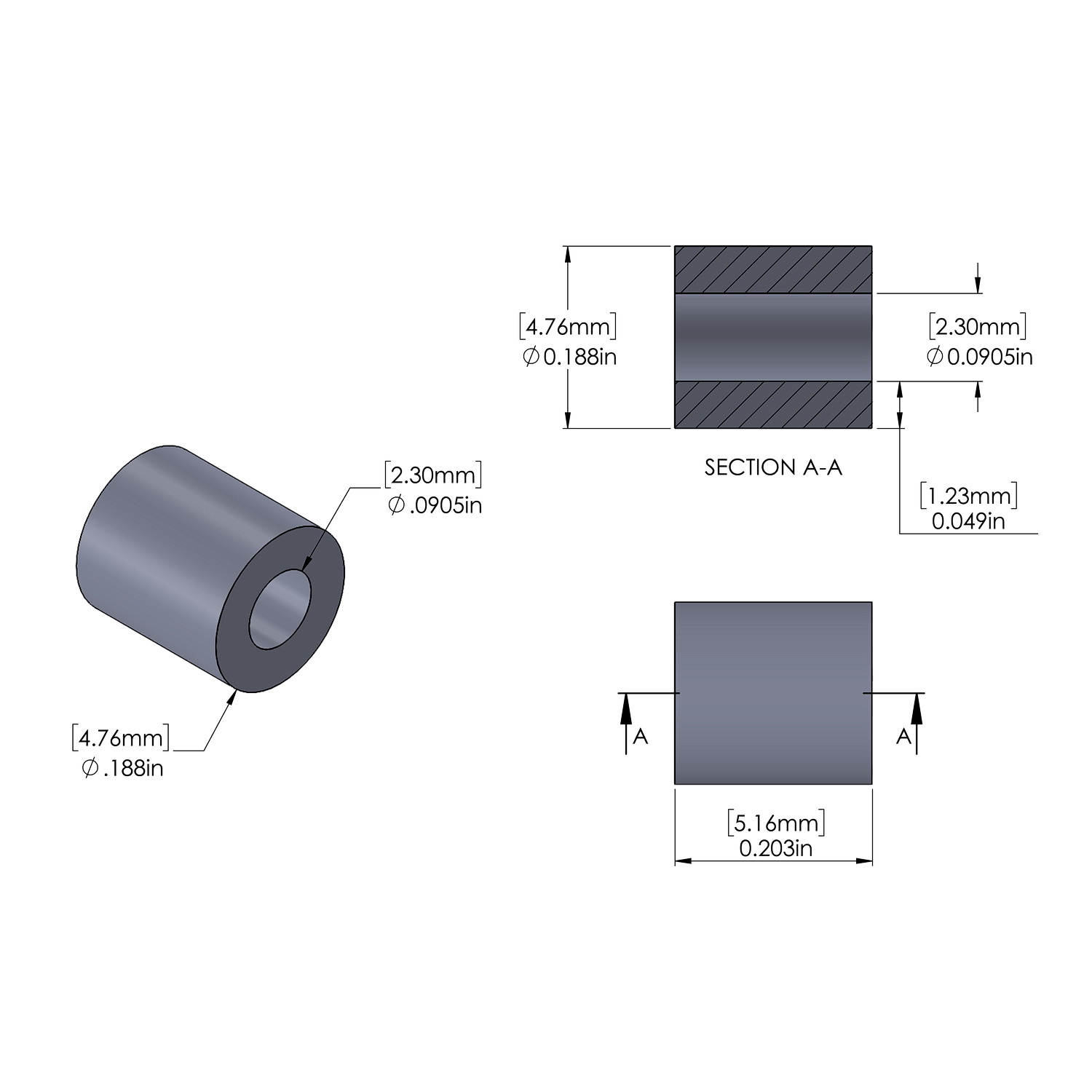

OD = 0.187'' (3/16'') 4.8mm   (Standard tolerance: +/-.005'', +/-.125mm)ID = 0.0905'' 2.3mm   (Standard tolerance: +/-.0025'', +/-.064mm)L = 0.2031''(13/64'')  5.16mm   (Standard tolerance: +/-.005'', +/-.125mm)Wall Thickness = 0.048'' 1.23mmWeight = 0.26 lbs/M 0.118 kg/K
Title:
Aluminum Spacer 3/16'' OD x .0905'' ID x 13/64'' Long, Plain Aluminum Finish
SKU: SP19-2-13
Sku
SP19-2-13
Finish
Plain Aluminum
Material
Aluminum
Inside Diameter
0.0905''
Outside Diameter
3/16''
Material Grade
6061-T6
Length
13/64''
Outer Diameter
3/16'' (4.8mm)
Screw/Bolt Size #2 Screw
Outside Diameter Tolerance +/-.005'', +/-.125mm
Inside Diameter Tolerance +/-.0025'', +/-.064mm
Length Standard Tolerance +/-.005'', +/-.125mm
