Aluminum Spacer 3/16'' OD x .115'' ID x 5/16'' Long

Aluminum Spacer 3/16'' OD x .115'' ID x 5/16'' Long, Plain Aluminum Fi

  1. Home
  2. Aluminum Spacer 3/16'' OD x .115'' ID x 5/16'' Long, Plain Aluminum Finish
Aluminum Spacer 3/16'' OD x .115'' ID x 5/16'' Long, Plain Aluminum Finish
Title:
Aluminum Spacer 3/16'' OD x .115'' ID x 5/16'' Long, Plain Aluminum Finish
SKU: SP19-4-20
2-3 day lead time
Unit Price$0.46
Quantity Price Each (USD)
1-24
$0.46
25-249 $0.32
250-2499 $0.28
2500+ $0.23
Select Length:
Select Material:
Select Finish:

Black Anodized

Plain Aluminum

Title:
Aluminum Spacer 3/16'' OD x .115'' ID x 5/16'' Long, Plain Aluminum Finish
SKU: SP19-4-20
Aluminum Spacer 3/16'' OD x .115'' ID x 5/16'' Long, Plain Aluminum Finish
Description:

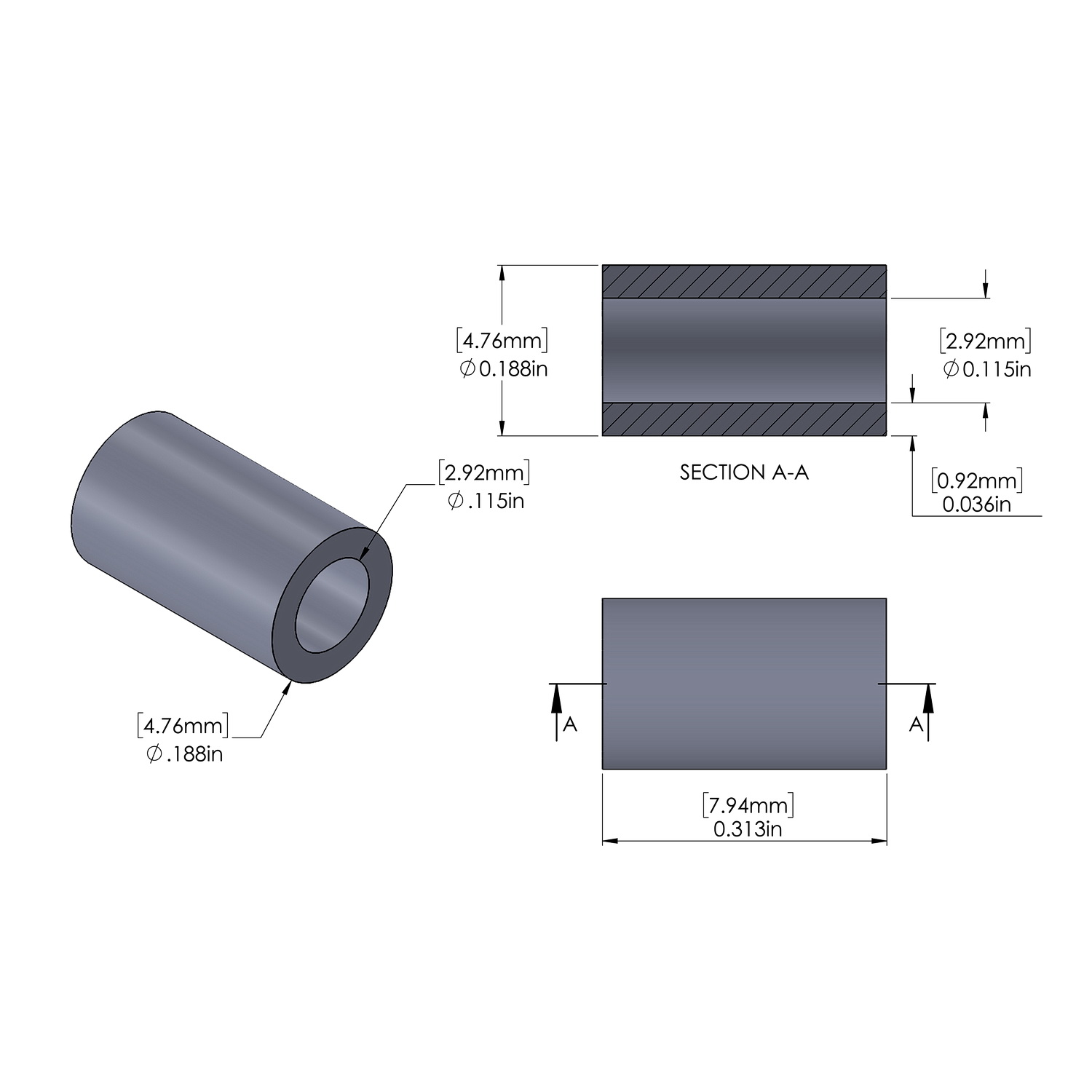

OD = 0.187'' (3/16'') 4.8mm   (Standard tolerance: +/-.005'', +/-.125mm)ID = 0.115'' 2.92mm   (Standard tolerance: +/-.003'', +/-.075mm)L = 0.313'' (5/16'') 7.938mm   (Standard tolerance: +/-.005'', +/-.125mm)Wall Thickness = 0.036'' .914mmWeight = .53 lbs/M 0.24 kg/K
Title:
Aluminum Spacer 3/16'' OD x .115'' ID x 5/16'' Long, Plain Aluminum Finish
SKU: SP19-4-20
Sku
SP19-4-20
Finish
Plain Aluminum
Material
Aluminum
Inside Diameter
0.115''
Outside Diameter
3/16''
Material Grade
6061-T6
Length
5/16''
Outer Diameter
3/16'' (4.8mm)
Screw/Bolt Size #4 Screw
Outside Diameter Tolerance +/-.005'', +/-.125mm
Inside Diameter Tolerance +/-.003'', +/-.075mm
Length Standard Tolerance +/-.005'', +/-.125mm
