Aluminum Spacer 3/16'' OD x .115'' ID x 9/32'' Long

Aluminum Spacer 3/16'' OD x .115'' ID x 9/32'' Long
Title:
Aluminum Spacer 3/16'' OD x .115'' ID x 9/32'' Long
SKU: SP19-4-18
2-3 day lead time
Unit Price$0.50
Quantity Price Each (USD)
1-24
$0.50
25-249 $0.30
250-2499 $0.15
2500+ $0.05
Select Length:
Select Material:
Select Finish:
Title:
Aluminum Spacer 3/16'' OD x .115'' ID x 9/32'' Long
SKU: SP19-4-18
Aluminum Spacer 3/16'' OD x .115'' ID x 9/32'' Long
Description:

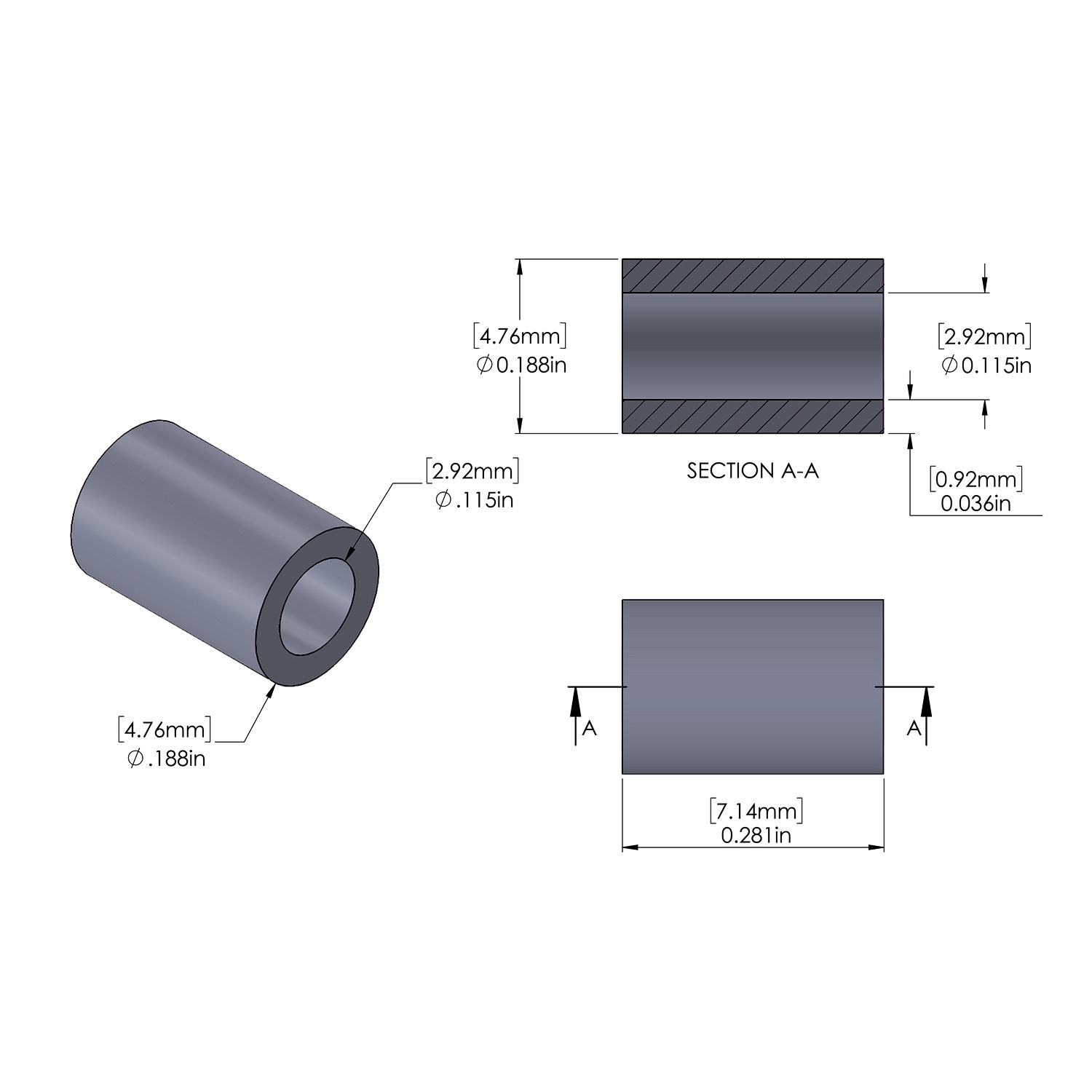

OD = 0.188'' (3/16'') 4.8mm   (Standard tolerance: +/-.005'', +/-.125mm)ID = 0.115'' 2.92mm   (Standard tolerance: +/-.003'', +/-.075mm)L = 0.281'' (9/32'') 7.14mm   (Standard tolerance: +/-.005'', +/-.125mm)Wall Thickness = 0.037'' .93mmWeight = 0.42 lbs/M 0.19 kg/K
Title:
Aluminum Spacer 3/16'' OD x .115'' ID x 9/32'' Long
SKU: SP19-4-18
Sku
SP19-4-18
Inside Diameter
0.115''
Outside Diameter
3/16''
Material
Aluminum
Material Grade
6061-T6
Finish
Plain Aluminum
Length
9/32''
Outer Diameter
3/16'' (4.8mm)
Screw/Bolt Size #4 Screw
Outside Diameter Tolerance +/-.005'', +/-.125mm
Inside Diameter Tolerance +/-.003'', +/-.075mm
Length Standard Tolerance +/-.005'', +/-.125mm
