Aluminum Spacer 3/16'' OD x .141'' ID x 1/2'' Long

Aluminum Spacer 3/16'' OD x .141'' ID x 1/2'' Long
Title:
Aluminum Spacer 3/16'' OD x .141'' ID x 1/2'' Long
SKU: SP19-6-32
2-3 day lead time
Unit Price$0.47
Quantity Price Each (USD)
1-24
$0.47
25-249 $0.28
250-2499 $0.14
2500+ $0.05
Select Length:
Select Material:
Select Finish:
Title:
Aluminum Spacer 3/16'' OD x .141'' ID x 1/2'' Long
SKU: SP19-6-32
Aluminum Spacer 3/16'' OD x .141'' ID x 1/2'' Long
Description:

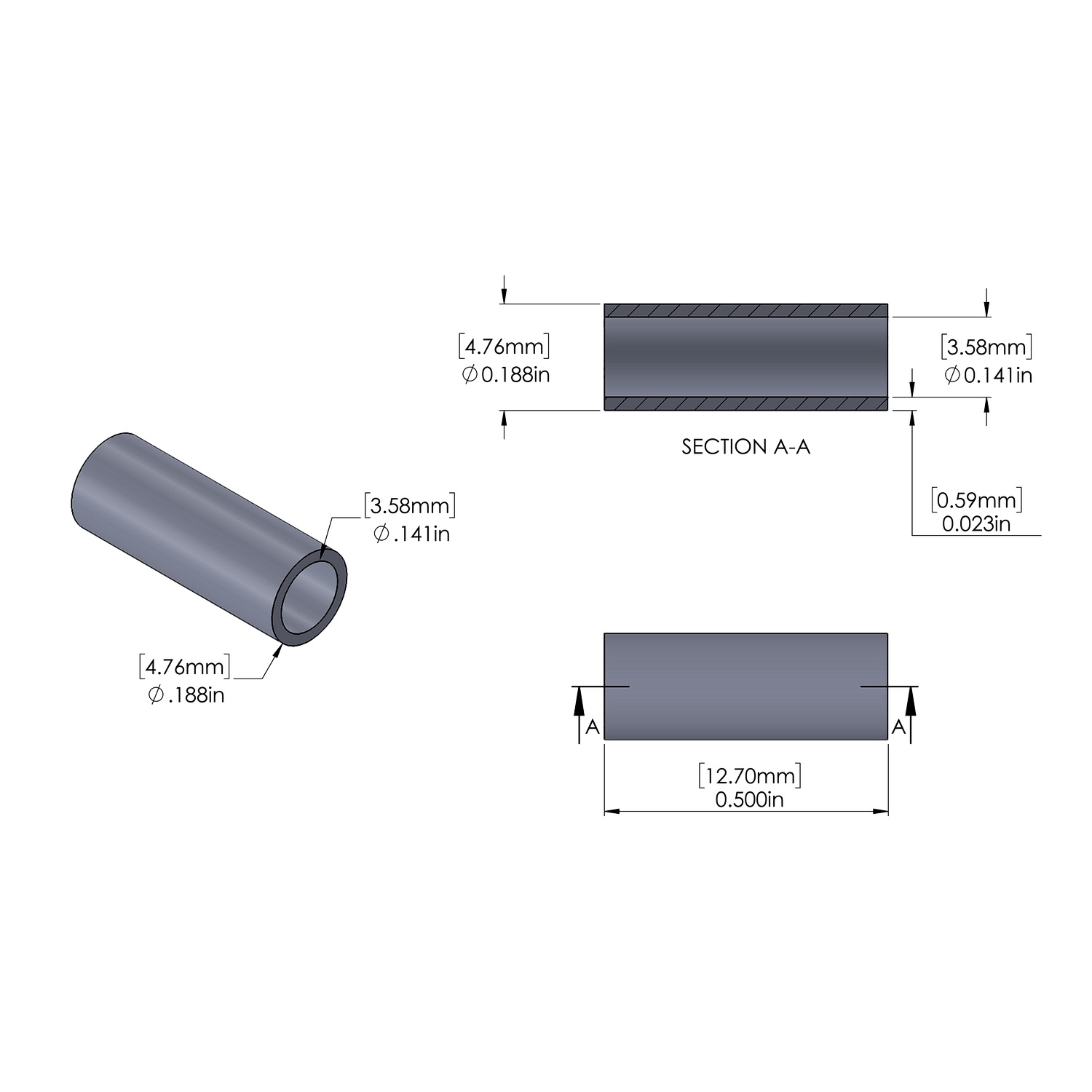

OD = 0.187'' (3/16'') 4.8mm   (Standard tolerance: +/-.005'', +/-.125mm)ID = 0.141'' 3.58mm   (Standard tolerance: +/-.003'', +/-.075mm)L = 0.5'' (1/2'') 12.7mm   (Standard tolerance: +/-.005'', +/-.125mm)Wall Thickness = 0.023'' .584mmWeight = .584 lbs/M 0.266 kg/K
Title:
Aluminum Spacer 3/16'' OD x .141'' ID x 1/2'' Long
SKU: SP19-6-32
Sku
SP19-6-32
Inside Diameter
0.141''
Outside Diameter
3/16''
Material
Aluminum
Material Grade
6061-T6
Finish
Plain Aluminum
Length
1/2''
Outer Diameter
3/16'' (4.8mm)
Screw/Bolt Size #6 Screw
Outside Diameter Tolerance +/-.005'', +/-.125mm
Inside Diameter Tolerance +/-.003'', +/-.075mm
Length Standard Tolerance +/-.005'', +/-.125mm
