Aluminum Spacer 3/16'' OD x .141'' ID x .180'' Long

Aluminum Spacer 3/16'' OD x .141'' ID x .180'' Long, Plain Aluminum Fi

  1. Home
  2. Aluminum Spacer 3/16'' OD x .141'' ID x .180'' Long, Plain Aluminum Finish
Aluminum Spacer 3/16'' OD x .141'' ID x .180'' Long, Plain Aluminum Finish
Title:
Aluminum Spacer 3/16'' OD x .141'' ID x .180'' Long, Plain Aluminum Finish
SKU: SP19-6-.180
2-3 day lead time
Unit Price$1.04
Quantity Price Each (USD)
1-24
$1.04
25-249 $0.73
250-2499 $0.62
2500+ $0.52
Select Length:
Select Material:
Select Finish:

Plain Aluminum

Title:
Aluminum Spacer 3/16'' OD x .141'' ID x .180'' Long, Plain Aluminum Finish
SKU: SP19-6-.180
Aluminum Spacer 3/16'' OD x .141'' ID x .180'' Long, Plain Aluminum Finish
Description:

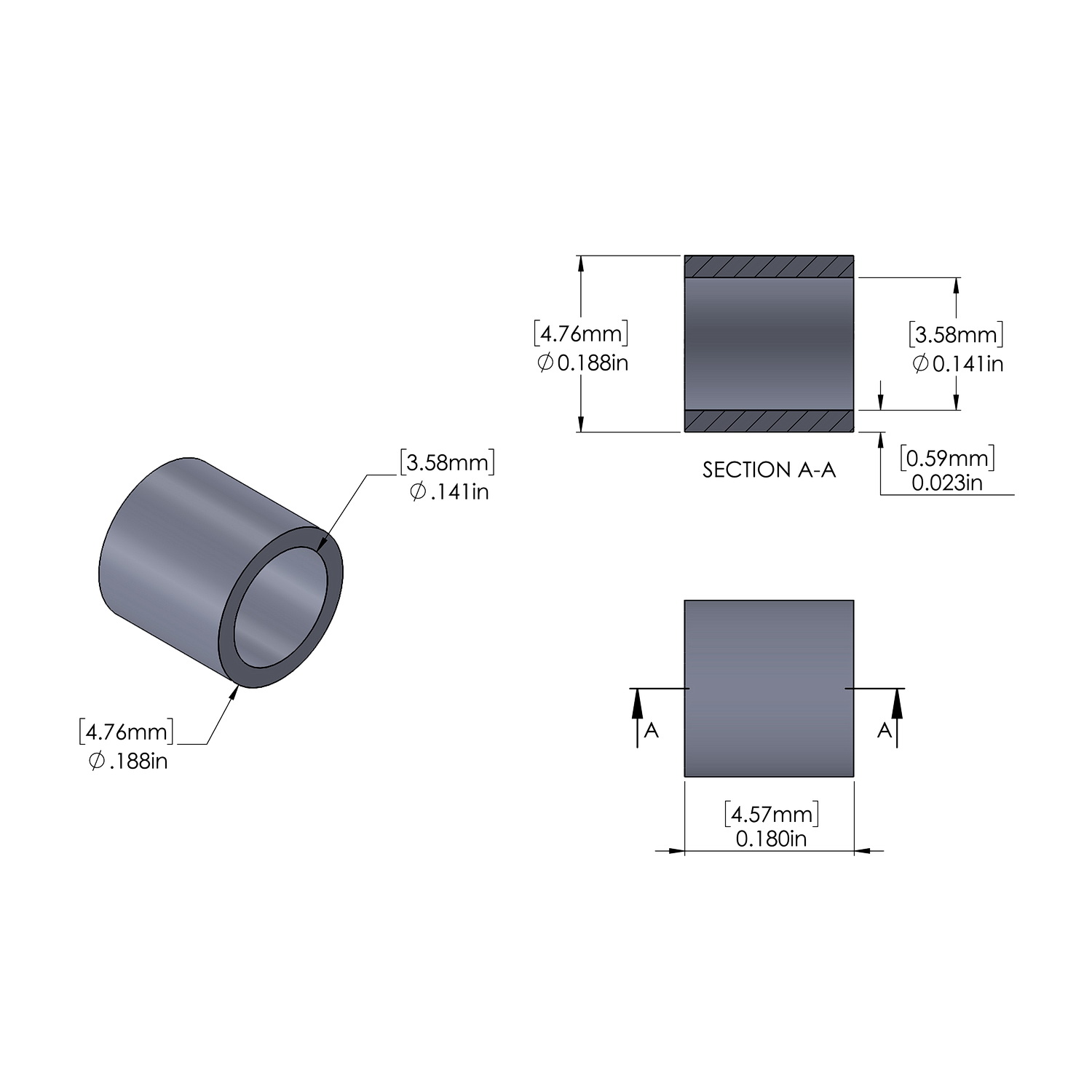

OD = 0.187'' (3/16'') 4.8mm   (Standard tolerance: +/-.005'', +/-.125mm)ID = 0.141'' 3.58mm   (Standard tolerance: +/-.003'', +/-.075mm)L = 0.180''  4.572mm   (Standard tolerance: +/-.005'', +/-.125mm)Wall Thickness = 0.023'' .59mmWeight = 0.31 lbs/M 0.14 kg/K
Title:
Aluminum Spacer 3/16'' OD x .141'' ID x .180'' Long, Plain Aluminum Finish
SKU: SP19-6-.180
Sku
SP19-6-.180
Finish
Plain Aluminum
Material
Aluminum
Inside Diameter
0.141''
Outside Diameter
3/16''
Material Grade
6061-T6
Length
.180''
Outer Diameter
3/16'' (4.8mm)
Screw/Bolt Size #6 Screw
Outside Diameter Tolerance +/-.005'', +/-.125mm
Inside Diameter Tolerance +/-.003'', +/-.075mm
Length Standard Tolerance +/-.005'', +/-.125mm
