Aluminum Spacer 3/16'' OD x .141'' ID x .525'' Long

Aluminum Spacer 3/16'' OD x .141'' ID x .525'' Long, Plain Aluminum Fi

  1. Home
  2. Aluminum Spacer 3/16'' OD x .141'' ID x .525'' Long, Plain Aluminum Finish
Aluminum Spacer 3/16'' OD x .141'' ID x .525'' Long, Plain Aluminum Finish
Title:
Aluminum Spacer 3/16'' OD x .141'' ID x .525'' Long, Plain Aluminum Finish
SKU: SP19-6-.525
2-3 day lead time
Unit Price$1.75
Quantity Price Each (USD)
1-24
$1.75
25-249 $1.23
250-2499 $1.05
2500+ $0.88
Select Length:
Select Material:
Select Finish:

Plain Aluminum

Title:
Aluminum Spacer 3/16'' OD x .141'' ID x .525'' Long, Plain Aluminum Finish
SKU: SP19-6-.525
Aluminum Spacer 3/16'' OD x .141'' ID x .525'' Long, Plain Aluminum Finish
Description:

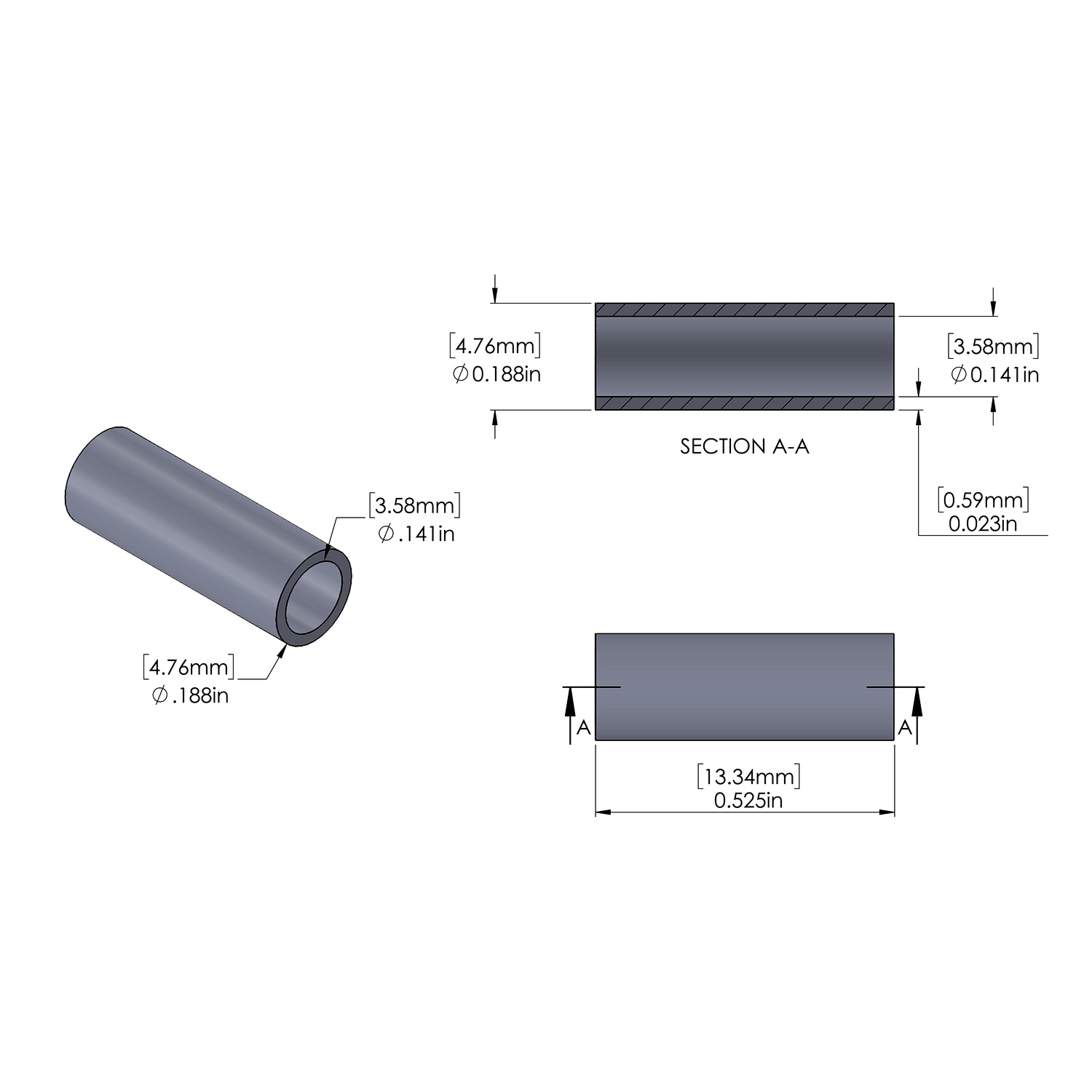

OD = 0.187'' (3/16'') 4.8mm   (Standard tolerance: +/-.005'', +/-.125mm)ID = 0.141'' 3.58mm   (Standard tolerance: +/-.003'', +/-.075mm)L = 0.525''  13.34mm   (Standard tolerance: +/-.005'', +/-.125mm)Wall Thickness = 0.023'' .584mmWeight = .584 lbs/M 0.266 kg/K
Title:
Aluminum Spacer 3/16'' OD x .141'' ID x .525'' Long, Plain Aluminum Finish
SKU: SP19-6-.525
Sku
SP19-6-.525
Finish
Plain Aluminum
Material
Aluminum
Inside Diameter
0.141''
Outside Diameter
3/16''
Material Grade
6061-T6
Length
.525''
Outer Diameter
3/16'' (4.8mm)
Screw/Bolt Size #6 Screw
Outside Diameter Tolerance +/-.005'', +/-.125mm
Inside Diameter Tolerance +/-.003'', +/-.075mm
Length Standard Tolerance +/-.005'', +/-.125mm
Title:
Aluminum Spacer 3/16'' OD x .141'' ID x .525'' Long, Plain Aluminum Finish
SKU: SP19-6-.525
Title:
Aluminum Spacer 3/16'' OD x .141'' ID x .525'' Long, Plain Aluminum Finish
SKU: SP19-6-.525
Title:
Aluminum Spacer 3/16'' OD x .141'' ID x .525'' Long, Plain Aluminum Finish
SKU: SP19-6-.525
