Aluminum Spacer 3/16'' OD x .155'' ID x .170'' Long

Aluminum Spacer 3/16'' OD x .155'' ID x .170'' Long, Plain Aluminum Fi

  1. Home
  2. Aluminum Spacer 3/16'' OD x .155'' ID x .170'' Long, Plain Aluminum Finish
Aluminum Spacer 3/16'' OD x .155'' ID x .170'' Long, Plain Aluminum Finish
Title:
Aluminum Spacer 3/16'' OD x .155'' ID x .170'' Long, Plain Aluminum Finish
SKU: SP19-.155-.170
2-3 day lead time
Unit Price$2.49
Quantity Price Each (USD)
1-24
$2.49
25-249 $1.74
250-2499 $1.49
2500+ $1.25
Select Length:
Select Material:
Select Finish:

Plain Aluminum

Title:
Aluminum Spacer 3/16'' OD x .155'' ID x .170'' Long, Plain Aluminum Finish
SKU: SP19-.155-.170
Aluminum Spacer 3/16'' OD x .155'' ID x .170'' Long, Plain Aluminum Finish
Description:

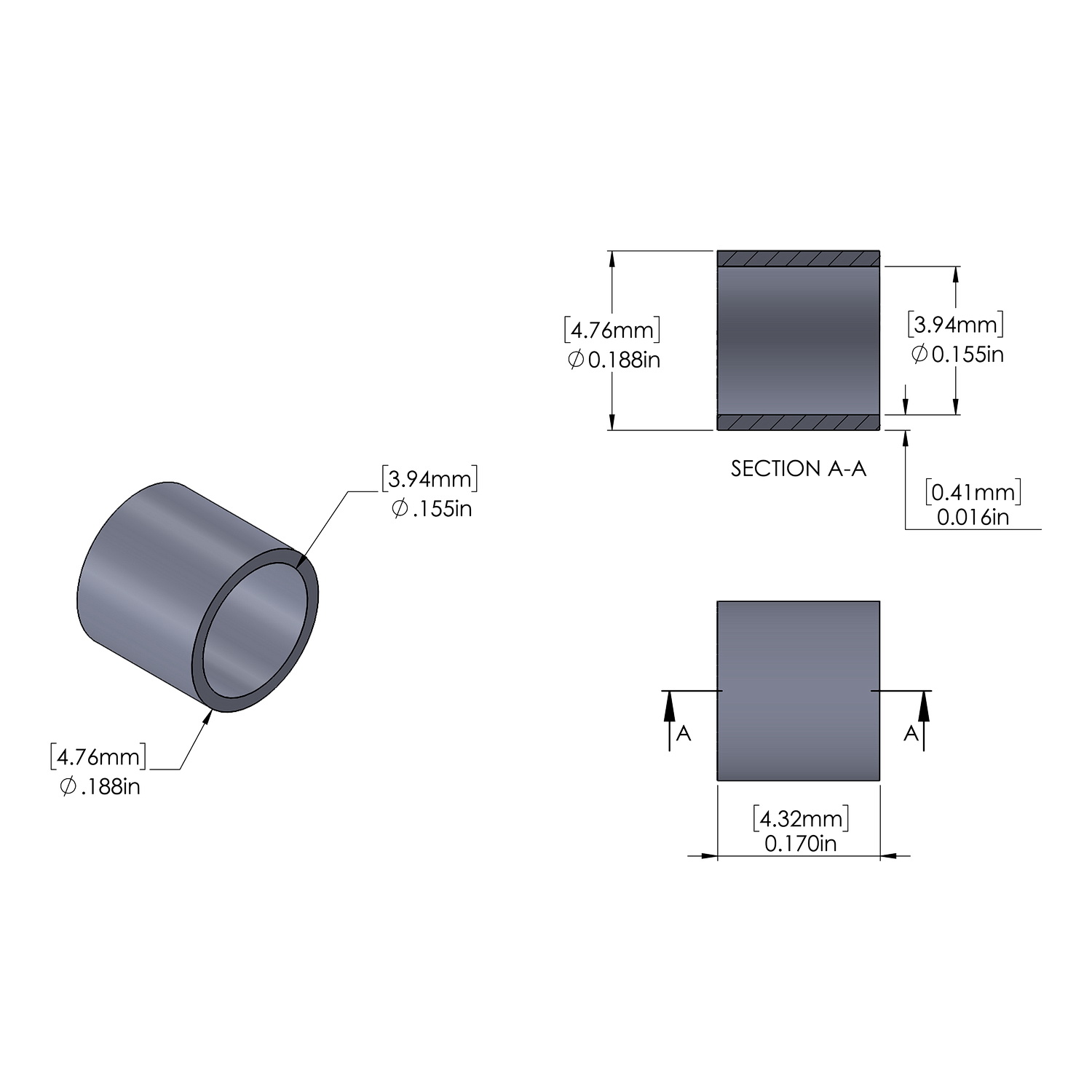

OD = 0.187'' (3/16'') 4.8mm   (Standard tolerance: +/-.005'', +/-.125mm)ID = 0.155'' 3.94mm   (Standard tolerance: +/-.003'', +/-.075mm)L = 0.170''  4.32mm   (Standard tolerance: +/-.005'', +/-.125mm)Wall Thickness = 0.016'' .41mmWeight = 0.145 lbs/M 3.68 kg/K
Title:
Aluminum Spacer 3/16'' OD x .155'' ID x .170'' Long, Plain Aluminum Finish
SKU: SP19-.155-.170
Sku
SP19-.155-.170
Finish
Plain Aluminum
Material
Aluminum
Inside Diameter
0.155''
Outside Diameter
3/16''
Material Grade
6061-T6
Length
.170''
Outer Diameter
3/16'' (4.8mm)
Screw/Bolt Size #6 Screw
Outside Diameter Tolerance +/-.005'', +/-.125mm
Inside Diameter Tolerance +/-.003'', +/-.075mm
Length Standard Tolerance +/-.005'', +/-.125mm
