Title:
Aluminum Spacer 3/8'' OD x .141'' ID x 3/8'' Long
SKU:
SP38-6-24
Description:

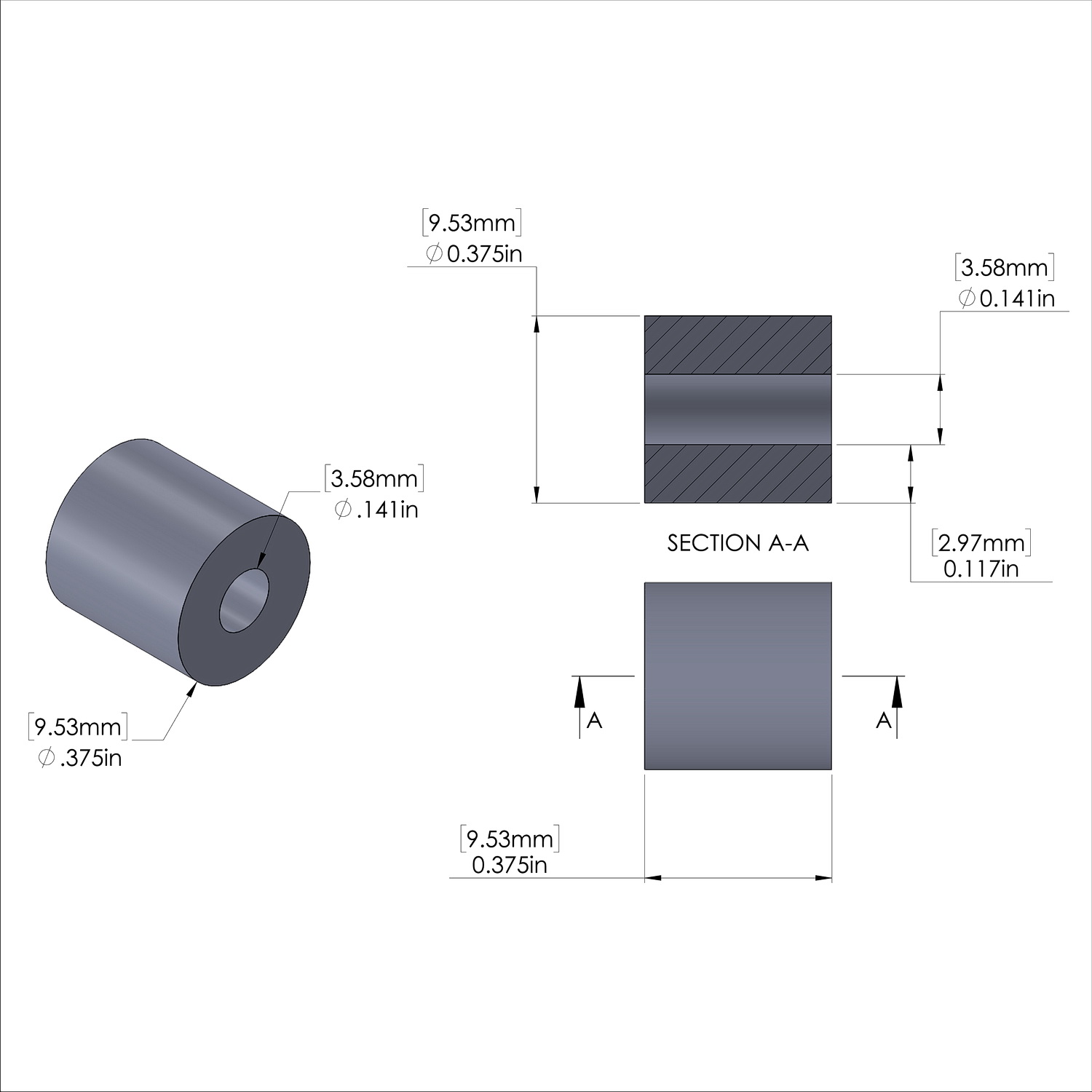

OD = 0.375'' (3/8'') 9.53mm (Standard tolerance: +/-.005'', +/-.125mm)ID = 0.141'' 3.58mm (Standard tolerance: +/-.003'', +/-.075mm)L = 0.375'' (3/8'') 9.525mm (Standard tolerance: +/-.005'', +/-.125mm)Wall Thickness = 0.11'' 2.97mmWeight = 3.49 lbs/M 1.58 kg/K
Title:
Aluminum Spacer 3/8'' OD x .141'' ID x 3/8'' Long
SKU:
SP38-6-24
| Sku |
SP38-6-24
|
| Inside Diameter |
0.141''
|
| Outside Diameter |
3/8''
|
| Material |
Aluminum
|
| Material Grade |
6061-T6
|
| Length |
3/8''
|
| Outer Diameter |
3/8'' (9.5mm)
|
| Screw/Bolt Size | #6 Screw |
| Outside Diameter Tolerance | +/-.005'', +/-.125mm |
| Inside Diameter Tolerance | +/-.003'', +/-.075mm |
| Length Standard Tolerance | +/-.005'', +/-.125mm |
