Aluminum Spacer 3/8'' OD x .172'' ID x 1-7/16'' Long

Aluminum Spacer 3/8'' OD x .172'' ID x 1-7/16'' Long
Title:
Aluminum Spacer 3/8'' OD x .172'' ID x 1-7/16'' Long
SKU: SP38-8-92
2-3 day lead time
Unit Price $1.70
Quantity Price Each (USD)
1-24
$1.70
25-249 $1.02
250-2499 $0.51
2500+ $0.17
Select Length:
Select Material:
Select Finish:
Title:
Aluminum Spacer 3/8'' OD x .172'' ID x 1-7/16'' Long
SKU: SP38-8-92
Aluminum Spacer 3/8'' OD x .172'' ID x 1-7/16'' Long
Description:

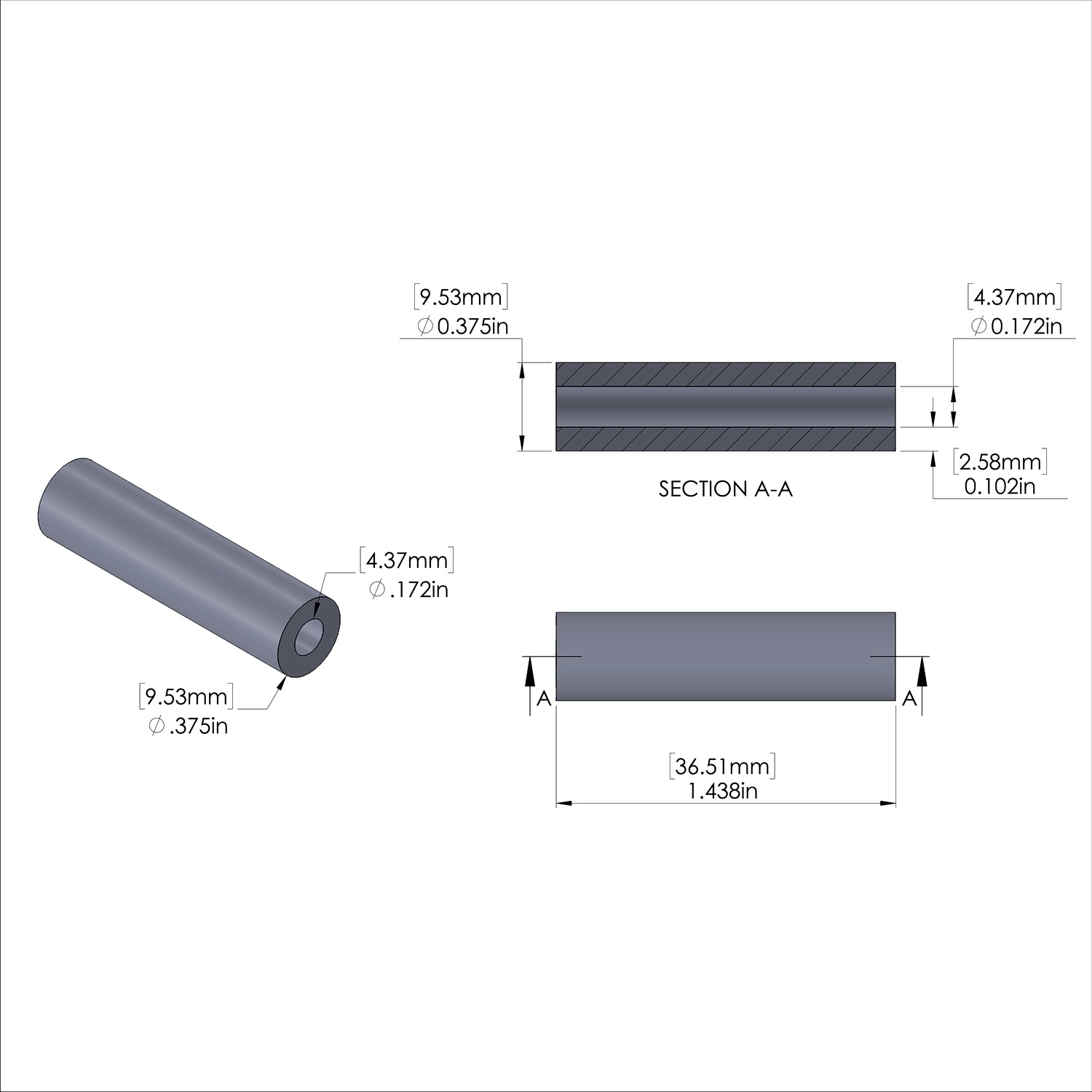

OD = 0.375'' (3/8'') 9.53mm   (Standard tolerance: +/-.005'', +/-.125mm)ID = 0.172'' 4.37mm   (Standard tolerance: +/-.003'', +/-.075mm)L = 1.438'' (1-7/16'') 36.513mm   (Standard tolerance: +/-.005'', +/-.125mm)Wall Thickness = 0.1'' 2.57mmWeight = 12.29 lbs/M 5.58 kg/K
Title:
Aluminum Spacer 3/8'' OD x .172'' ID x 1-7/16'' Long
SKU: SP38-8-92
Sku
SP38-8-92
Inside Diameter
0.172''
Outside Diameter
3/8''
Material
Aluminum
Material Grade
6061-T6
Length
1-7/16''
Outer Diameter
3/8'' (9.5mm)
Screw/Bolt Size #8 Screw
Outside Diameter Tolerance +/-.005'', +/-.125mm
Inside Diameter Tolerance +/-.003'', +/-.075mm
Length Standard Tolerance +/-.005'', +/-.125mm
