Aluminum Spacer 3/8'' OD x .172'' ID x 13/32'' Long

Aluminum Spacer 3/8'' OD x .172'' ID x 13/32'' Long
Title:
Aluminum Spacer 3/8'' OD x .172'' ID x 13/32'' Long
SKU: SP38-8-26
2-3 day lead time
Unit Price $0.75
Quantity Price Each (USD)
1-24
$0.75
25-249 $0.45
250-2499 $0.23
2500+ $0.07
Select Length:
Select Material:
Select Finish:
Title:
Aluminum Spacer 3/8'' OD x .172'' ID x 13/32'' Long
SKU: SP38-8-26
Aluminum Spacer 3/8'' OD x .172'' ID x 13/32'' Long
Description:

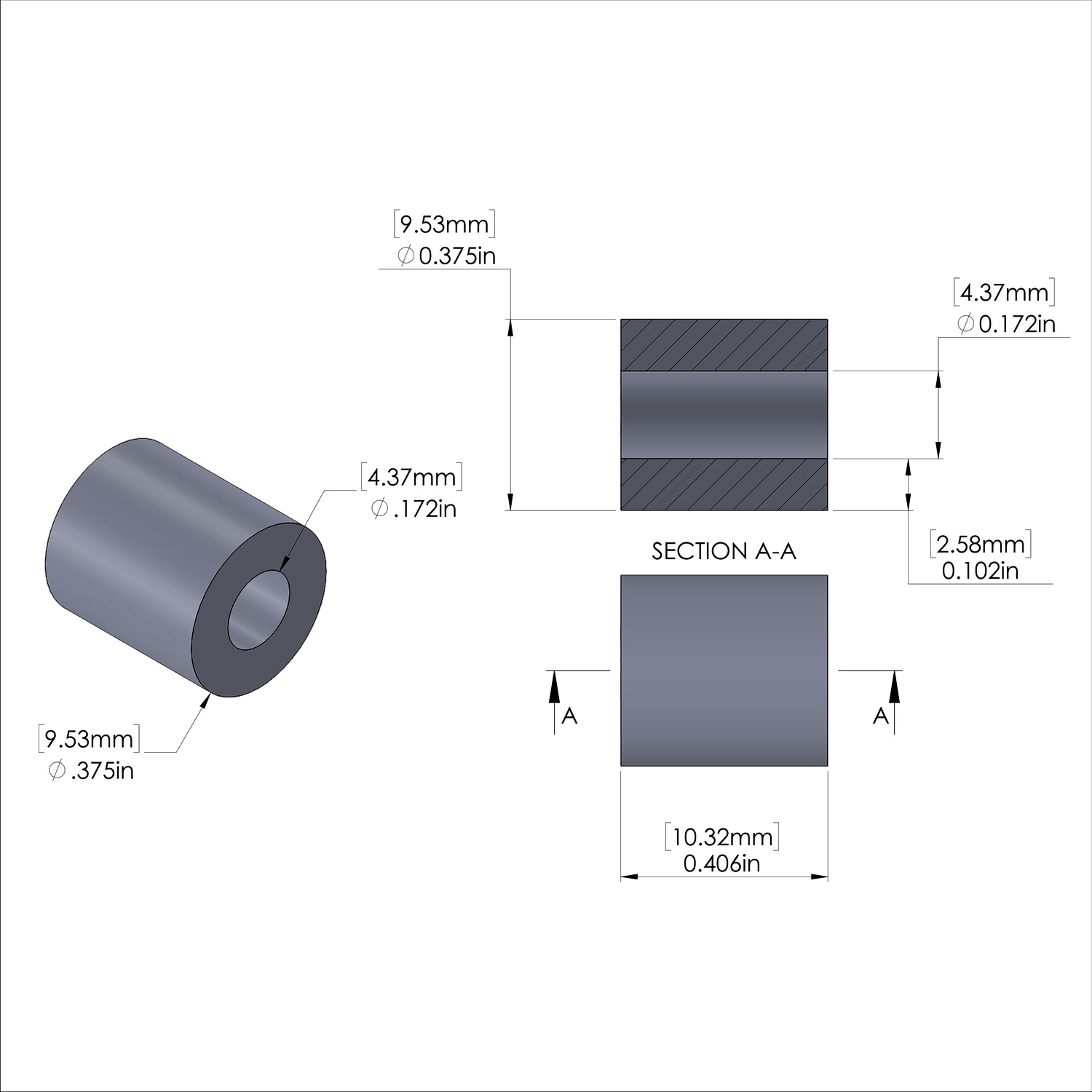

OD = 0.375'' (3/8'') 9.53mm   (Standard tolerance: +/-.005'', +/-.125mm)ID = 0.172'' 4.37mm   (Standard tolerance: +/-.003'', +/-.075mm)L = 0.406'' (13/32'') 10.312mm   (Standard tolerance: +/-.005'', +/-.125mm)Wall Thickness = 0.1'' 2.57mmWeight = 3.47 lbs/M 1.58 kg/K
Title:
Aluminum Spacer 3/8'' OD x .172'' ID x 13/32'' Long
SKU: SP38-8-26
Sku
SP38-8-26
Inside Diameter
0.172''
Outside Diameter
3/8''
Material
Aluminum
Material Grade
6061-T6
Length
13/32''
Outer Diameter
3/8'' (9.5mm)
Screw/Bolt Size #8 Screw
Outside Diameter Tolerance +/-.005'', +/-.125mm
Inside Diameter Tolerance +/-.003'', +/-.075mm
Length Standard Tolerance +/-.005'', +/-.125mm
