Aluminum Spacer 3/8'' OD x .172'' ID x .196'' Long

Aluminum Spacer 3/8'' OD x .172'' ID x .196'' Long
Title:
Aluminum Spacer 3/8'' OD x .172'' ID x .196'' Long
SKU: SP38-8-.196
2-3 day lead time
Unit Price$0.71
Quantity Price Each (USD)
1-24
$0.71
25-249 $0.43
250-2499 $0.21
2500+ $0.07
Select Length:
Select Finish:
Title:
Aluminum Spacer 3/8'' OD x .172'' ID x .196'' Long
SKU: SP38-8-.196
Aluminum Spacer 3/8'' OD x .172'' ID x .196'' Long
Description:

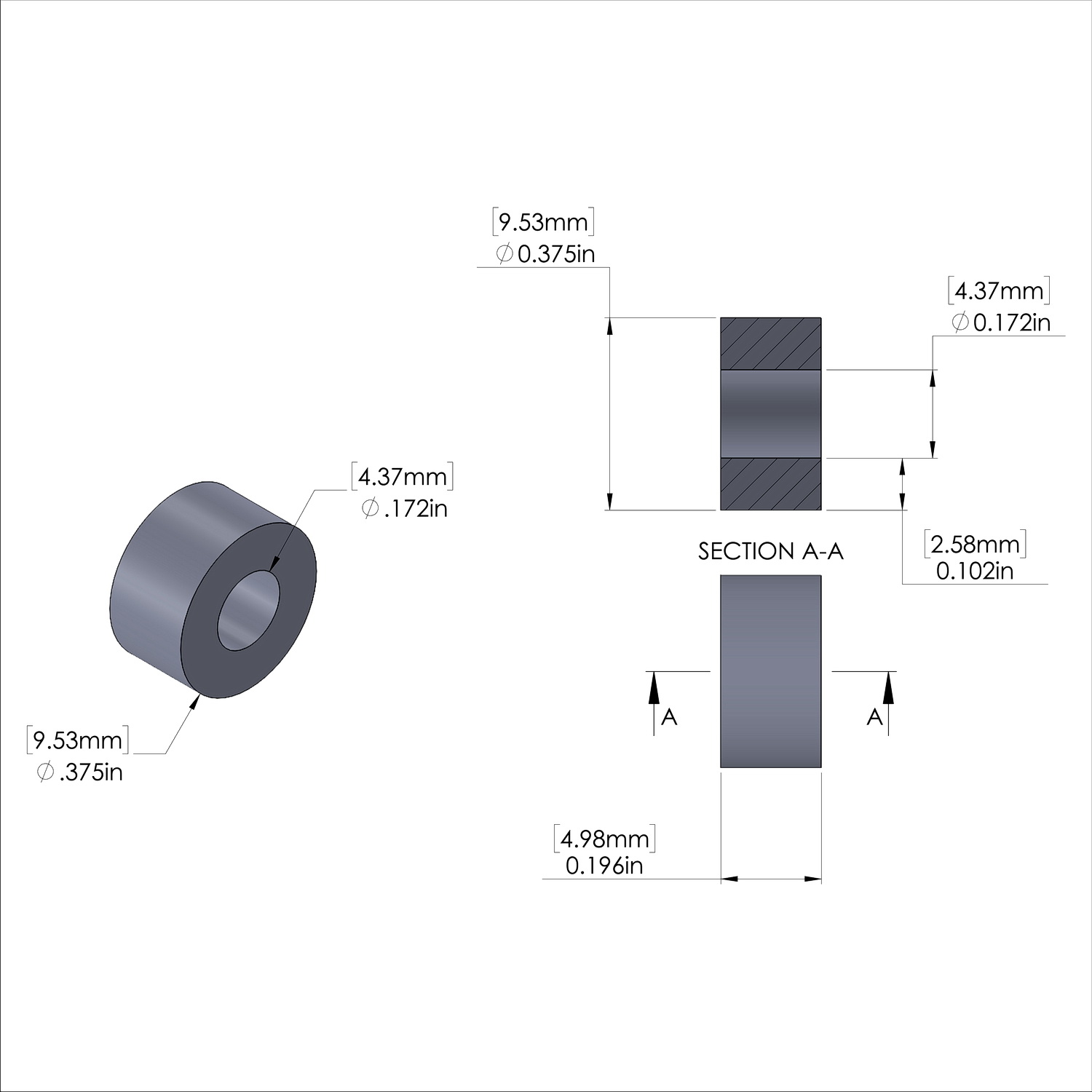

OD = 0.375'' (3/8'') 9.53mm   (Standard tolerance: +/-.005'', +/-.125mm)ID = 0.172'' 4.37mm   (Standard tolerance: +/-.003'', +/-.075mm)L = 0.196''  4.978mm   (Standard tolerance: +/-.005'', +/-.125mm)Wall Thickness = 0.1'' 2.57mmWeight = 1.73 lbs/M 0.79 kg/K
Title:
Aluminum Spacer 3/8'' OD x .172'' ID x .196'' Long
SKU: SP38-8-.196
Sku
SP38-8-.196
Inside Diameter
0.172''
Outside Diameter
3/8''
Material
Aluminum
Material Grade
6061-T6
Outer Diameter
3/8'' (9.5mm)
Screw/Bolt Size #8 Screw
Outside Diameter Tolerance +/-.005'', +/-.125mm
Inside Diameter Tolerance +/-.003'', +/-.075mm
Length Standard Tolerance +/-.005'', +/-.125mm
