Aluminum Spacer 3/8'' OD x .192'' ID x 1.000'' Long

Aluminum Spacer 3/8'' OD x .192'' ID x 1.000'' Long
Title:
Aluminum Spacer 3/8'' OD x .192'' ID x 1.000'' Long
SKU: SP38-10-64
2-3 day lead time
Unit Price $1.05
Quantity Price Each (USD)
1-24
$1.05
25-249 $0.63
250-2499 $0.32
2500+ $0.10
Select Length:
Select Material:
Select Finish:
Title:
Aluminum Spacer 3/8'' OD x .192'' ID x 1.000'' Long
SKU: SP38-10-64
Aluminum Spacer 3/8'' OD x .192'' ID x 1.000'' Long
Description:

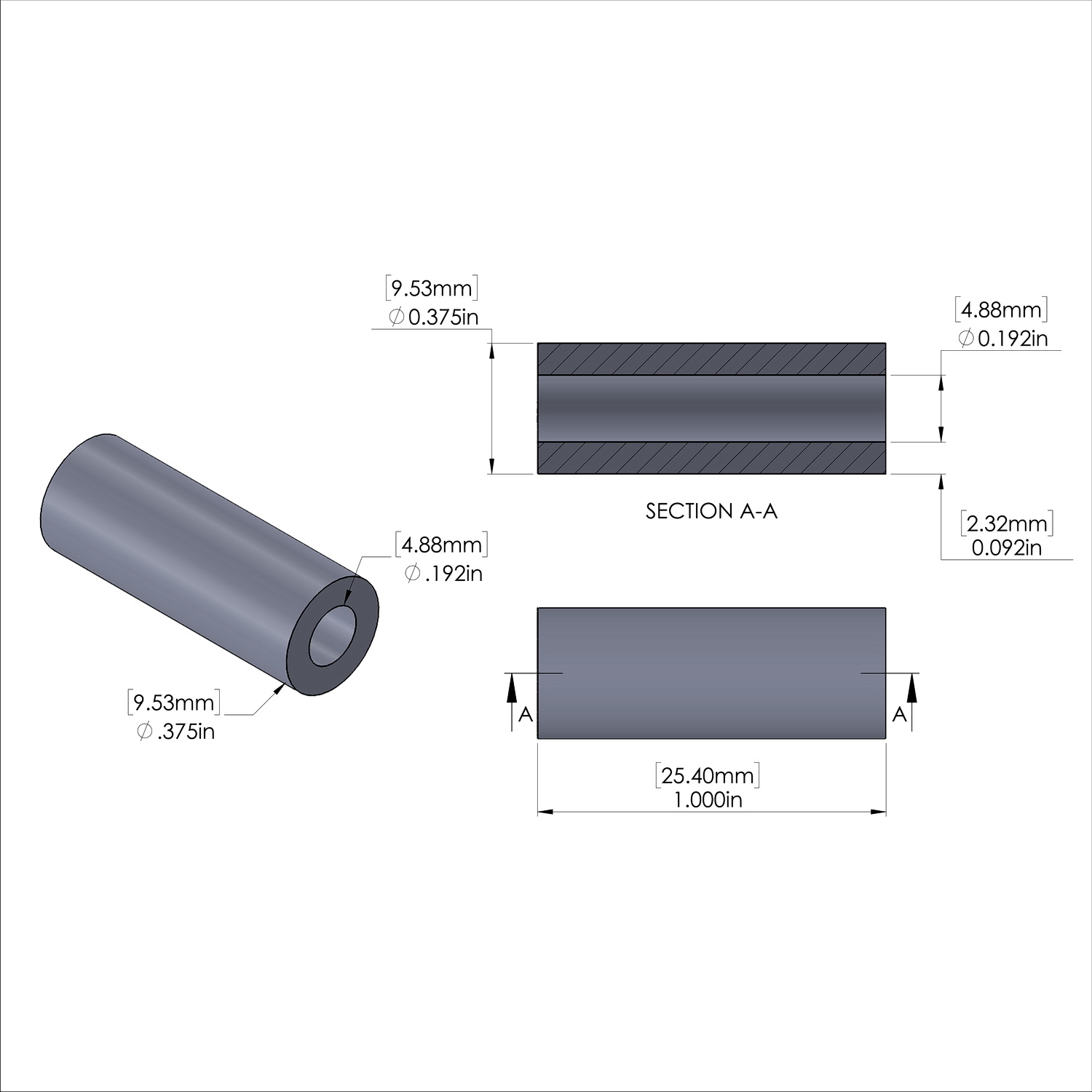

OD = 0.375'' (3/8'') 9.53mm   (Standard tolerance: +/-.005'', +/-.125mm)ID = 0.192'' 4.92mm   (Standard tolerance: +/-.003'', +/-.075mm)L = 1'' (1'') 25.4mm   (Standard tolerance: +/-.005'', +/-.125mm)Wall Thickness = 0.09'' 2.32mmWeight = 7.99 lbs/M 3.63 kg/K
Title:
Aluminum Spacer 3/8'' OD x .192'' ID x 1.000'' Long
SKU: SP38-10-64
Sku
SP38-10-64
Inside Diameter
0.192''
Outside Diameter
3/8''
Material
Aluminum
Material Grade
6061-T6
Length
1''
Outer Diameter
3/8'' (9.5mm)
Screw/Bolt Size #10 Screw
Outside Diameter Tolerance +/-.005'', +/-.125mm
Inside Diameter Tolerance +/-.003'', +/-.075mm
Length Standard Tolerance +/-.005'', +/-.125mm
