Aluminum Spacer 3/8'' OD x .192'' ID x 5/32'' Long

Aluminum Spacer 3/8'' OD x .192'' ID x 5/32'' Long
Title:
Aluminum Spacer 3/8'' OD x .192'' ID x 5/32'' Long
SKU: SP38-10-10
2-3 day lead time
Unit Price $0.61
Quantity Price Each (USD)
1-24
$0.61
25-249 $0.37
250-2499 $0.18
2500+ $0.06
Select Length:
Select Material:
Select Finish:
Title:
Aluminum Spacer 3/8'' OD x .192'' ID x 5/32'' Long
SKU: SP38-10-10
Aluminum Spacer 3/8'' OD x .192'' ID x 5/32'' Long
Description:

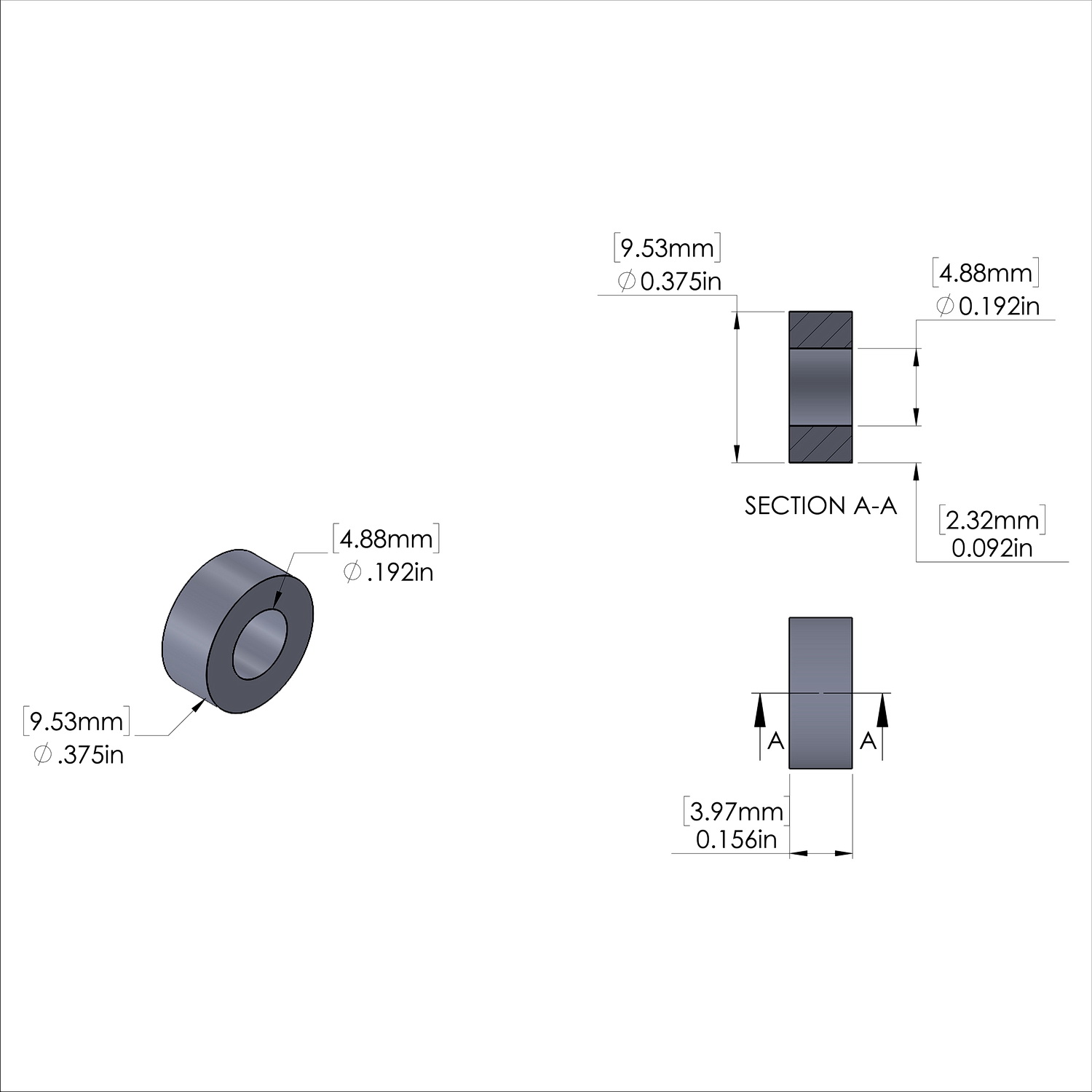

OD = 0.375'' (3/8'') 9.53mm   (Standard tolerance: +/-.005'', +/-.125mm)ID = 0.192'' 4.92mm   (Standard tolerance: +/-.003'', +/-.075mm)L = 0.156'' (5/32'') 3.962mm   (Standard tolerance: +/-.005'', +/-.125mm)Wall Thickness = 0.09'' 2.32mmWeight = 1.25 lbs/M 0.57 kg/K
Title:
Aluminum Spacer 3/8'' OD x .192'' ID x 5/32'' Long
SKU: SP38-10-10
Sku
SP38-10-10
Inside Diameter
0.192''
Outside Diameter
3/8''
Material
Aluminum
Material Grade
6061-T6
Length
5/32''
Outer Diameter
3/8'' (9.5mm)
Screw/Bolt Size #10 Screw
Outside Diameter Tolerance +/-.005'', +/-.125mm
Inside Diameter Tolerance +/-.003'', +/-.075mm
Length Standard Tolerance +/-.005'', +/-.125mm
