Title:
Aluminum Spacer 3/8'' OD x .225'' ID x 1/4'' Long
SKU:
SP38-.225-16
Description:

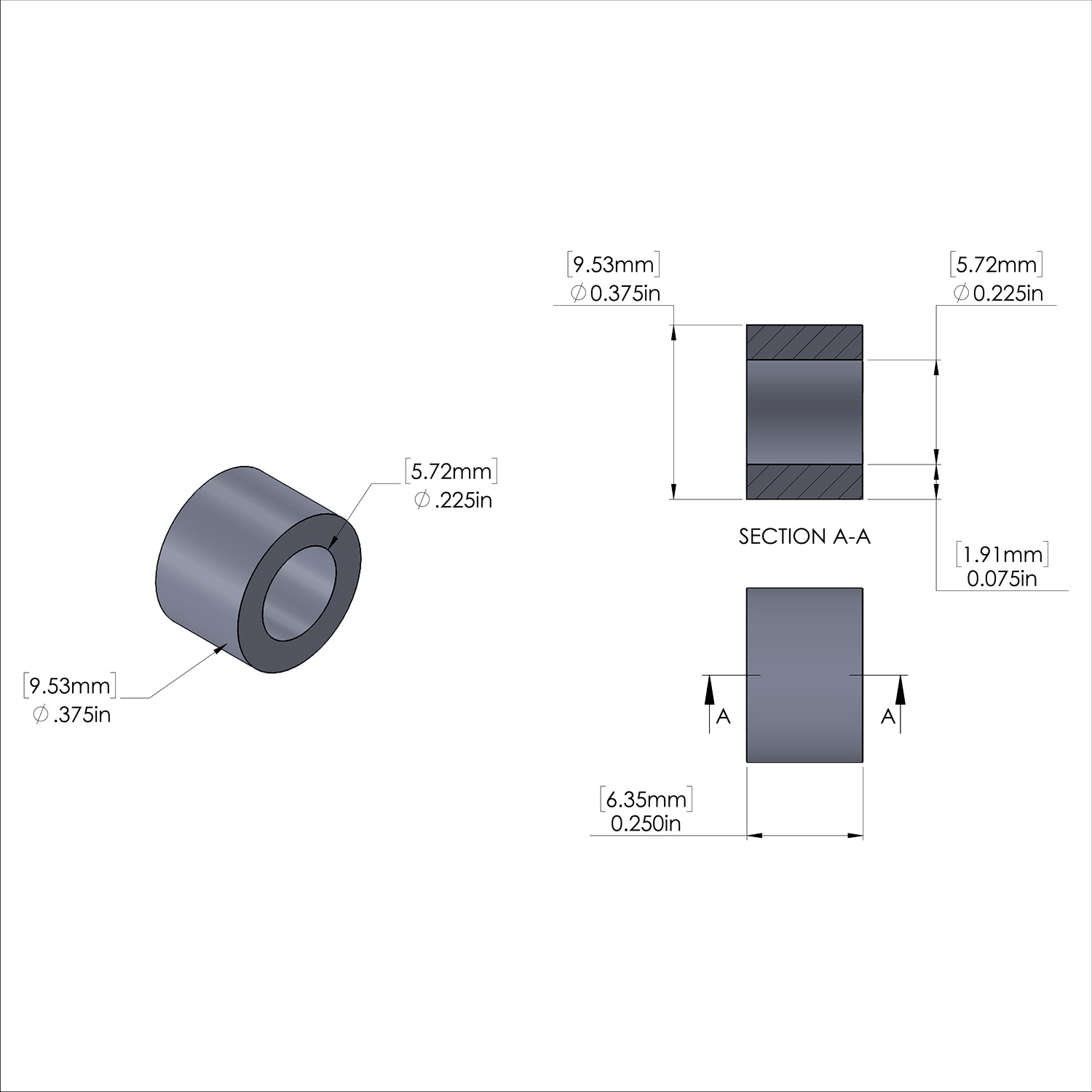

OD = 0.375'' (3/8'') 9.53mm (Standard tolerance: +/-.005'', +/-.125mm)ID = 0.225'' 5.72mm (Standard tolerance: +/-.003'', +/-.075mm)L = 0.25'' (1/4'') 6.35mm (Standard tolerance: +/-.005'', +/-.125mm)Wall Thickness = 0.07'' 1.98mmWeight = 1.76 lbs/M 0.80 kg/K
Title:
Aluminum Spacer 3/8'' OD x .225'' ID x 1/4'' Long
SKU:
SP38-.225-16
| Sku |
SP38-.225-16
|
| Inside Diameter |
0.225''
|
| Outside Diameter |
3/8''
|
| Material |
Aluminum
|
| Material Grade |
6061-T6
|
| Length |
1/4''
|
| Outer Diameter |
3/8'' (9.5mm)
|
| Screw/Bolt Size | #12 Screw |
| Outside Diameter Tolerance | +/-.005'', +/-.125mm |
| Inside Diameter Tolerance | +/-.003'', +/-.075mm |
| Length Standard Tolerance | +/-.005'', +/-.125mm |
