Aluminum Spacer 3/8'' OD x .257'' ID x 1-3/16'' Long

Aluminum Spacer 3/8'' OD x .257'' ID x 1-3/16'' Long
Title:
Aluminum Spacer 3/8'' OD x .257'' ID x 1-3/16'' Long
SKU: SP38-14-76
2-3 day lead time
Unit Price$1.54
Quantity Price Each (USD)
1-24
$1.54
25-249 $0.92
250-2499 $0.46
2500+ $0.15
Select Length:
Select Material:
Select Finish:
Title:
Aluminum Spacer 3/8'' OD x .257'' ID x 1-3/16'' Long
SKU: SP38-14-76
Aluminum Spacer 3/8'' OD x .257'' ID x 1-3/16'' Long
Description:

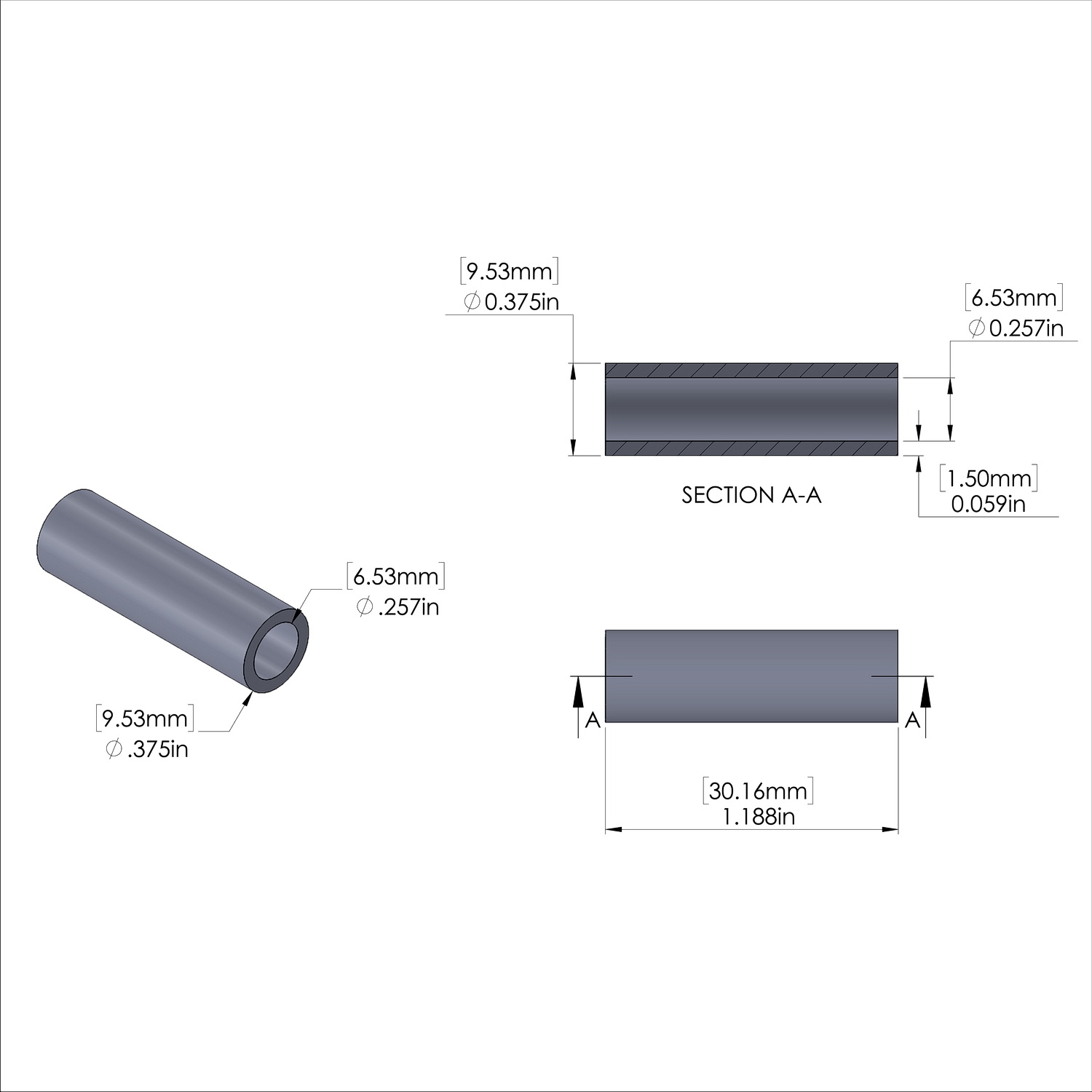

OD = 0.375'' (3/8'') 9.53mm   (Standard tolerance: +/-.005'', +/-.125mm)ID = 0.257'' 6.53mm   (Standard tolerance: +/-.003'', +/-.075mm)L = 1.188'' (1-3/16'') 30.163mm   (Standard tolerance: +/-.005'', +/-.125mm)Wall Thickness = 0.05'' 1.49mmWeight = 6.82 lbs/M 3.09 kg/K
Title:
Aluminum Spacer 3/8'' OD x .257'' ID x 1-3/16'' Long
SKU: SP38-14-76
Sku
SP38-14-76
Inside Diameter
0.257''
Outside Diameter
3/8''
Material
Aluminum
Material Grade
6061-T6
Length
1-3/16''
Outer Diameter
3/8'' (9.5mm)
Screw/Bolt Size 1/4" Bolt
Outside Diameter Tolerance +/-.005'', +/-.125mm
Inside Diameter Tolerance +/-.003'', +/-.075mm
Length Standard Tolerance +/-.005'', +/-.125mm
