Aluminum Spacer 3/8'' OD x .257'' ID x 3/16'' Long

Aluminum Spacer 3/8'' OD x .257'' ID x 3/16'' Long
Title:
Aluminum Spacer 3/8'' OD x .257'' ID x 3/16'' Long
SKU: SP38-14-12
2-3 day lead time
Unit Price$0.55
Quantity Price Each (USD)
1-24
$0.55
25-249 $0.33
250-2499 $0.17
2500+ $0.05
Select Length:
Select Material:
Select Finish:
Title:
Aluminum Spacer 3/8'' OD x .257'' ID x 3/16'' Long
SKU: SP38-14-12
Aluminum Spacer 3/8'' OD x .257'' ID x 3/16'' Long
Description:

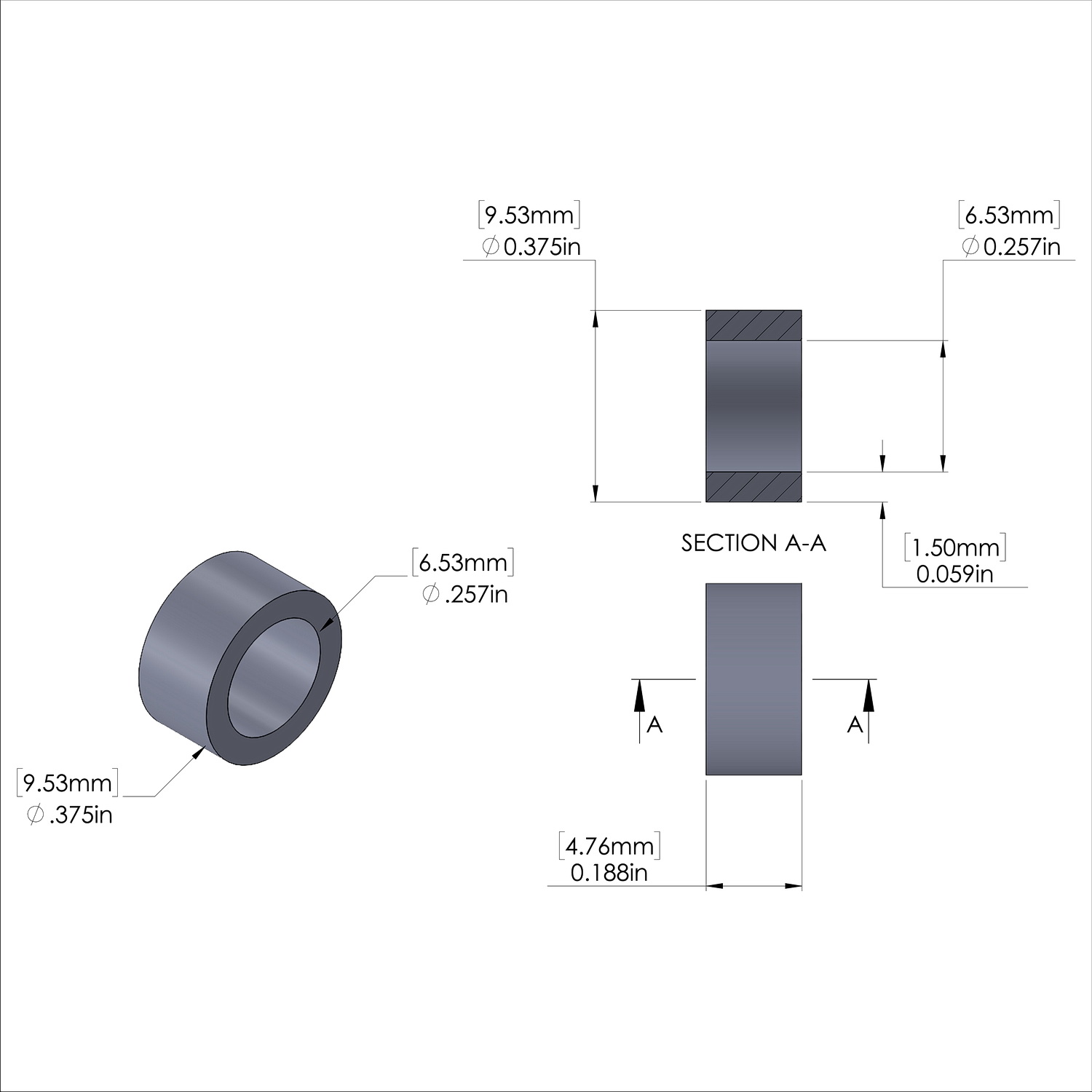

OD = 0.375'' (3/8'') 9.53mm   (Standard tolerance: +/-.005'', +/-.125mm)ID = 0.257'' 6.53mm   (Standard tolerance: +/-.003'', +/-.075mm)L = 0.188'' (3/16'') 4.763mm   (Standard tolerance: +/-.005'', +/-.125mm)Wall Thickness = 0.05'' 1.49mmWeight = 1.08 lbs/M 0.49 kg/K
Title:
Aluminum Spacer 3/8'' OD x .257'' ID x 3/16'' Long
SKU: SP38-14-12
Sku
SP38-14-12
Inside Diameter
0.257''
Outside Diameter
3/8''
Material
Aluminum
Material Grade
6061-T6
Length
3/16''
Outer Diameter
3/8'' (9.5mm)
Screw/Bolt Size 1/4" Bolt
Outside Diameter Tolerance +/-.005'', +/-.125mm
Inside Diameter Tolerance +/-.003'', +/-.075mm
Length Standard Tolerance +/-.005'', +/-.125mm
