Aluminum Spacer 3/8'' OD x .319'' ID x 5/16'' Long

Aluminum Spacer 3/8'' OD x .319'' ID x 5/16'' Long
Title:
Aluminum Spacer 3/8'' OD x .319'' ID x 5/16'' Long
SKU: SP38-16-20
2-3 day lead time
Unit Price$0.87
Quantity Price Each (USD)
1-24
$0.87
25-249 $0.52
250-2499 $0.26
2500+ $0.09
Select Length:
Select Material:
Select Finish:
Title:
Aluminum Spacer 3/8'' OD x .319'' ID x 5/16'' Long
SKU: SP38-16-20
Aluminum Spacer 3/8'' OD x .319'' ID x 5/16'' Long
Description:

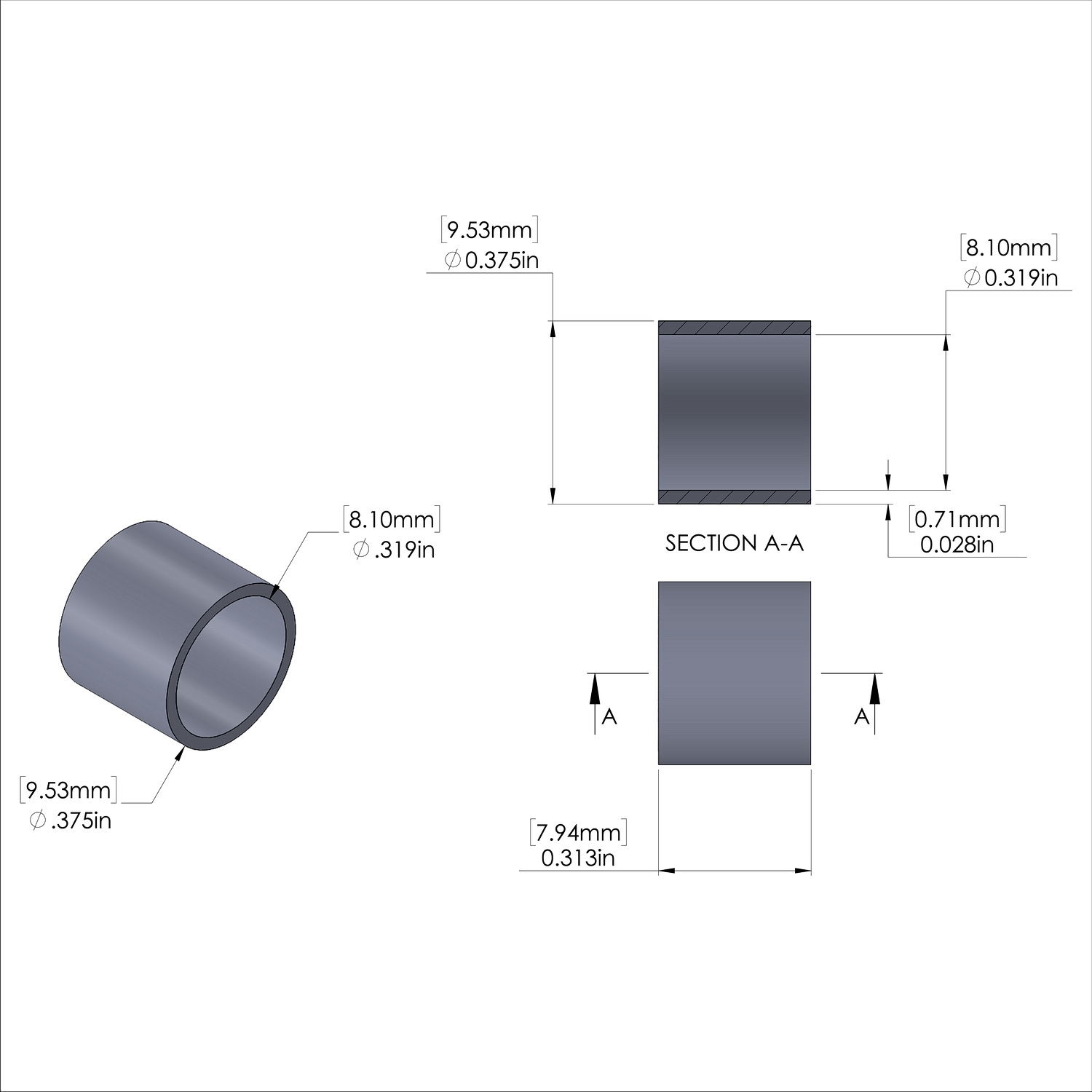

OD = 0.375'' (3/8'') 9.5mm   (Standard tolerance: +/-.005'', +/-.125mm)ID = 0.319'' 8.1mm   (Standard tolerance: +/-.003'', +/-.075mm)L = 0.313'' (5/16'') 7.938mm   (Standard tolerance: +/-.005'', +/-.125mm)Wall Thickness = 0.028'' .71mmWeight = 3.1 lbs/M 1.41 kg/K
Title:
Aluminum Spacer 3/8'' OD x .319'' ID x 5/16'' Long
SKU: SP38-16-20
Sku
SP38-16-20
Inside Diameter
0.319''
Outside Diameter
3/8''
Material
Aluminum
Material Grade
6061-T6
Length
5/16''
Outer Diameter
3/8'' (9.5mm)
Screw/Bolt Size 5/16" Bolt
Outside Diameter Tolerance +/-.005'', +/-.125mm
Inside Diameter Tolerance +/-.003'', +/-.075mm
Length Standard Tolerance +/-.005'', +/-.125mm
