Aluminum Spacer 5/16'' OD x .141'' ID x 11/64'' Long

Aluminum Spacer 5/16'' OD x .141'' ID x 11/64'' Long
Title:
Aluminum Spacer 5/16'' OD x .141'' ID x 11/64'' Long
SKU: SP31-6-11
2-3 day lead time
Unit Price$0.62
Quantity Price Each (USD)
1-24
$0.62
25-249 $0.37
250-2499 $0.19
2500+ $0.06
Select Length:
Select Material:
Select Finish:
Title:
Aluminum Spacer 5/16'' OD x .141'' ID x 11/64'' Long
SKU: SP31-6-11
Aluminum Spacer 5/16'' OD x .141'' ID x 11/64'' Long
Description:

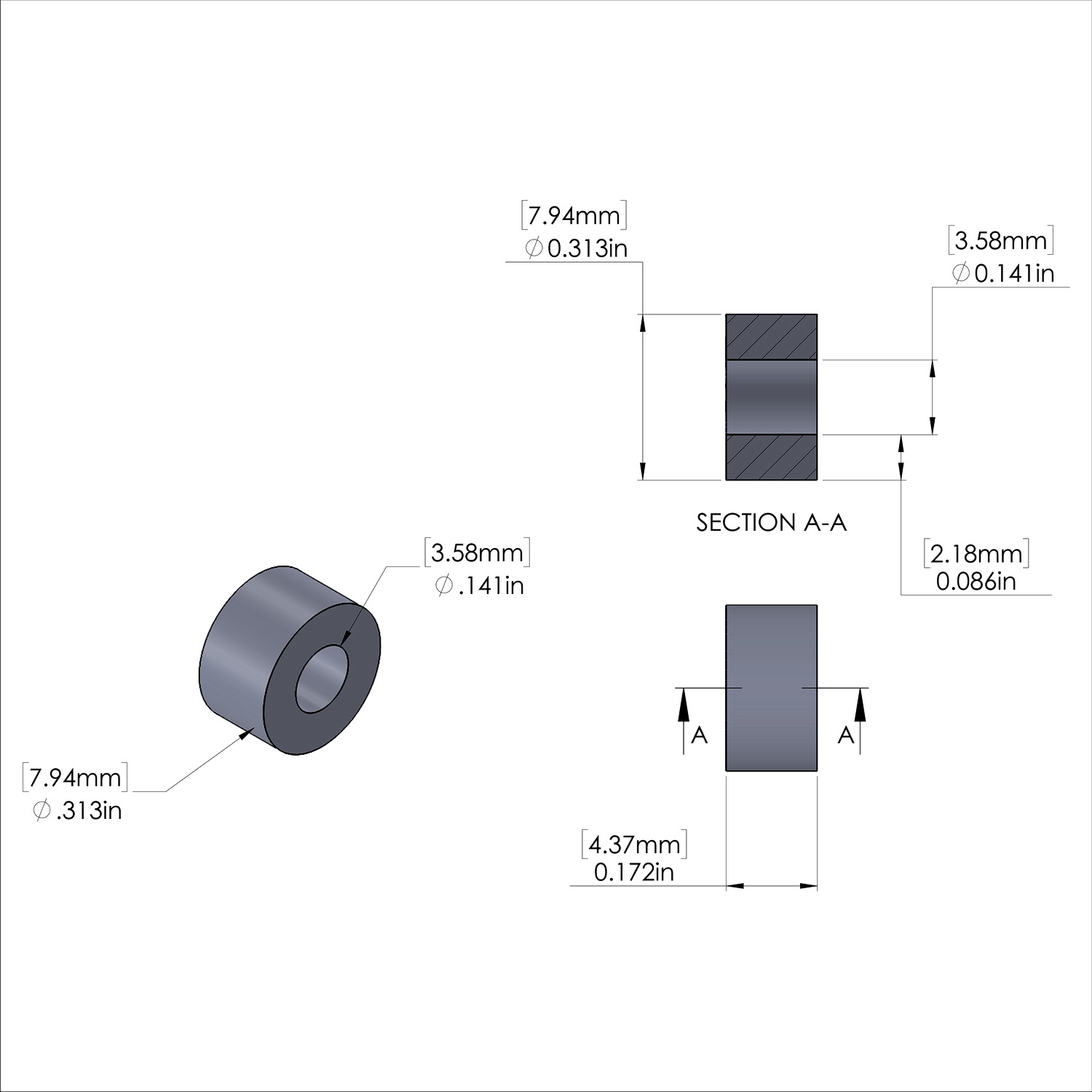

OD = 0.313'' (5/16'') 7.94mm   (Standard tolerance: +/-.005'', +/-.125mm)ID = 0.141'' 3.58mm   (Standard tolerance: +/-.003'', +/-.075mm)L = 0.172'' (11/64'') 4.369mm   (Standard tolerance: +/-.005'', +/-.125mm)Wall Thickness = 0.08'' 2.17mmWeight = 1.03 lbs/M 0.47 kg/K
Title:
Aluminum Spacer 5/16'' OD x .141'' ID x 11/64'' Long
SKU: SP31-6-11
Sku
SP31-6-11
Inside Diameter
0.141''
Outside Diameter
5/16''
Material
Aluminum
Material Grade
6061-T6
Length
11/64''
Outer Diameter
5/16'' (8mm)
Screw/Bolt Size #6 Screw
Outside Diameter Tolerance +/-.005'', +/-.125mm
Inside Diameter Tolerance +/-.003'', +/-.075mm
Length Standard Tolerance +/-.005'', +/-.125mm
