Aluminum Spacer 5/16'' OD x .141'' ID x 15/16'' Long

Aluminum Spacer 5/16'' OD x .141'' ID x 15/16'' Long
Title:
Aluminum Spacer 5/16'' OD x .141'' ID x 15/16'' Long
SKU: SP31-6-60
2-3 day lead time
Unit Price$1.13
Quantity Price Each (USD)
1-24
$1.13
25-249 $0.68
250-2499 $0.34
2500+ $0.11
Select Length:
Select Material:
Select Finish:
Title:
Aluminum Spacer 5/16'' OD x .141'' ID x 15/16'' Long
SKU: SP31-6-60
Aluminum Spacer 5/16'' OD x .141'' ID x 15/16'' Long
Description:

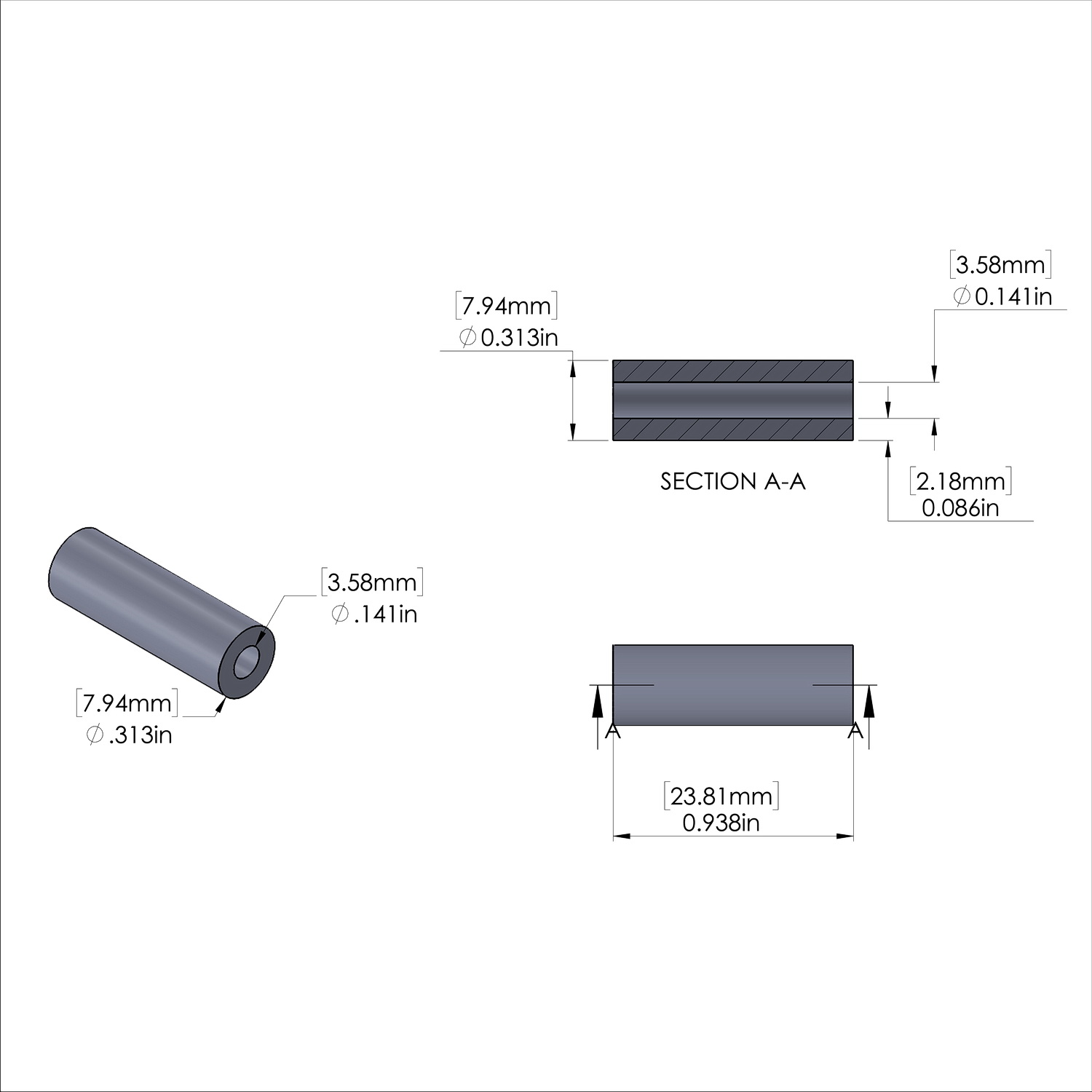

OD = 0.313'' (5/16'') 7.94mm   (Standard tolerance: +/-.005'', +/-.125mm)ID = 0.141'' 3.58mm   (Standard tolerance: +/-.003'', +/-.075mm)L = 0.938'' (15/16'') 23.813mm   (Standard tolerance: +/-.005'', +/-.125mm)Wall Thickness = 0.08'' 2.17mmWeight = 5.61 lbs/M 2.55 kg/K
Title:
Aluminum Spacer 5/16'' OD x .141'' ID x 15/16'' Long
SKU: SP31-6-60
Sku
SP31-6-60
Inside Diameter
0.141''
Outside Diameter
5/16''
Material
Aluminum
Material Grade
6061-T6
Length
15/16''
Outer Diameter
5/16'' (8mm)
Screw/Bolt Size #6 Screw
Outside Diameter Tolerance +/-.005'', +/-.125mm
Inside Diameter Tolerance +/-.003'', +/-.075mm
Length Standard Tolerance +/-.005'', +/-.125mm
