Aluminum Spacer 5/16'' OD x .141'' ID x 5/8'' Long

Aluminum Spacer 5/16'' OD x .141'' ID x 5/8'' Long, Plain Aluminum Fin

  1. Home
  2. Aluminum Spacer 5/16'' OD x .141'' ID x 5/8'' Long, Plain Aluminum Finish
Aluminum Spacer 5/16'' OD x .141'' ID x 5/8'' Long, Plain Aluminum Finish
Title:
Aluminum Spacer 5/16'' OD x .141'' ID x 5/8'' Long, Plain Aluminum Finish
SKU: SP31-6-40
2-3 day lead time
Unit Price$0.83
Quantity Price Each (USD)
1-24
$0.83
25-249 $0.58
250-2499 $0.50
2500+ $0.42
Select Length:
Select Material:
Select Finish:

Clear Anodized

Black Anodized

Plain Aluminum

Title:
Aluminum Spacer 5/16'' OD x .141'' ID x 5/8'' Long, Plain Aluminum Finish
SKU: SP31-6-40
Aluminum Spacer 5/16'' OD x .141'' ID x 5/8'' Long, Plain Aluminum Finish
Description:

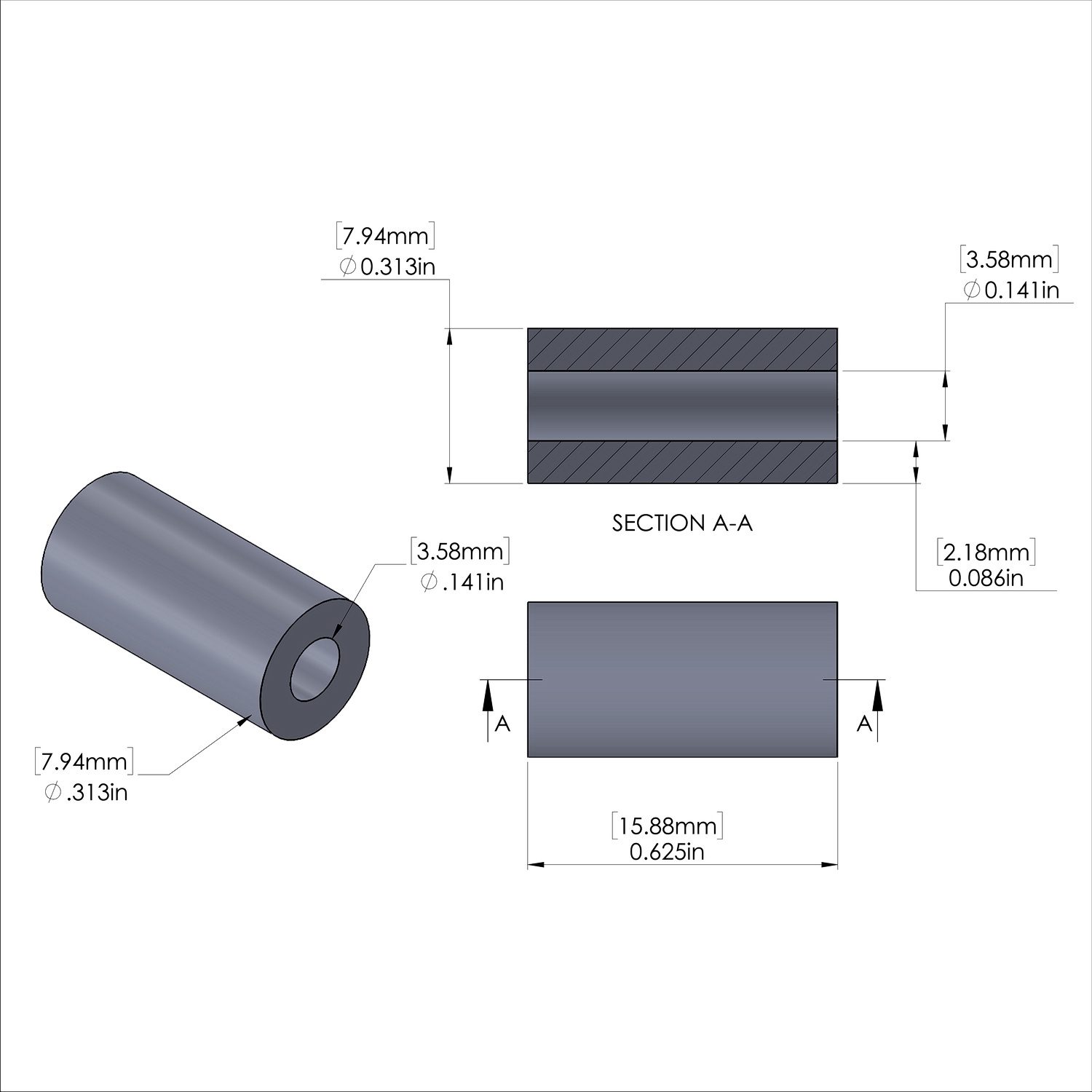

OD = 0.313'' (5/16'') 7.94mm   (Standard tolerance: +/-.005'', +/-.125mm)ID = 0.141'' 3.58mm   (Standard tolerance: +/-.003'', +/-.075mm)L = 0.625'' (5/8'') 15.875mm   (Standard tolerance: +/-.005'', +/-.125mm)Wall Thickness = 0.08'' 2.17mmWeight = 3.74 lbs/M 1.7 kg/K
Title:
Aluminum Spacer 5/16'' OD x .141'' ID x 5/8'' Long, Plain Aluminum Finish
SKU: SP31-6-40
Sku
SP31-6-40
Finish
Plain Aluminum
Material
Aluminum
Inside Diameter
0.141''
Outside Diameter
5/16''
Material Grade
6061-T6
Length
5/8''
Outer Diameter
5/16'' (8mm)
Screw/Bolt Size #6 Screw
Outside Diameter Tolerance +/-.005'', +/-.125mm
Inside Diameter Tolerance +/-.003'', +/-.075mm
Length Standard Tolerance +/-.005'', +/-.125mm
