Aluminum Spacer 5/16'' OD x .172'' ID x 1-1/8'' Long

Aluminum Spacer 5/16'' OD x .172'' ID x 1-1/8'' Long
Title:
Aluminum Spacer 5/16'' OD x .172'' ID x 1-1/8'' Long
SKU: SP31-8-72
2-3 day lead time
Unit Price $1.22
Quantity Price Each (USD)
1-24
$1.22
25-249 $0.73
250-2499 $0.37
2500+ $0.12
Select Length:
Select Material:
Select Finish:
Title:
Aluminum Spacer 5/16'' OD x .172'' ID x 1-1/8'' Long
SKU: SP31-8-72
Aluminum Spacer 5/16'' OD x .172'' ID x 1-1/8'' Long
Description:

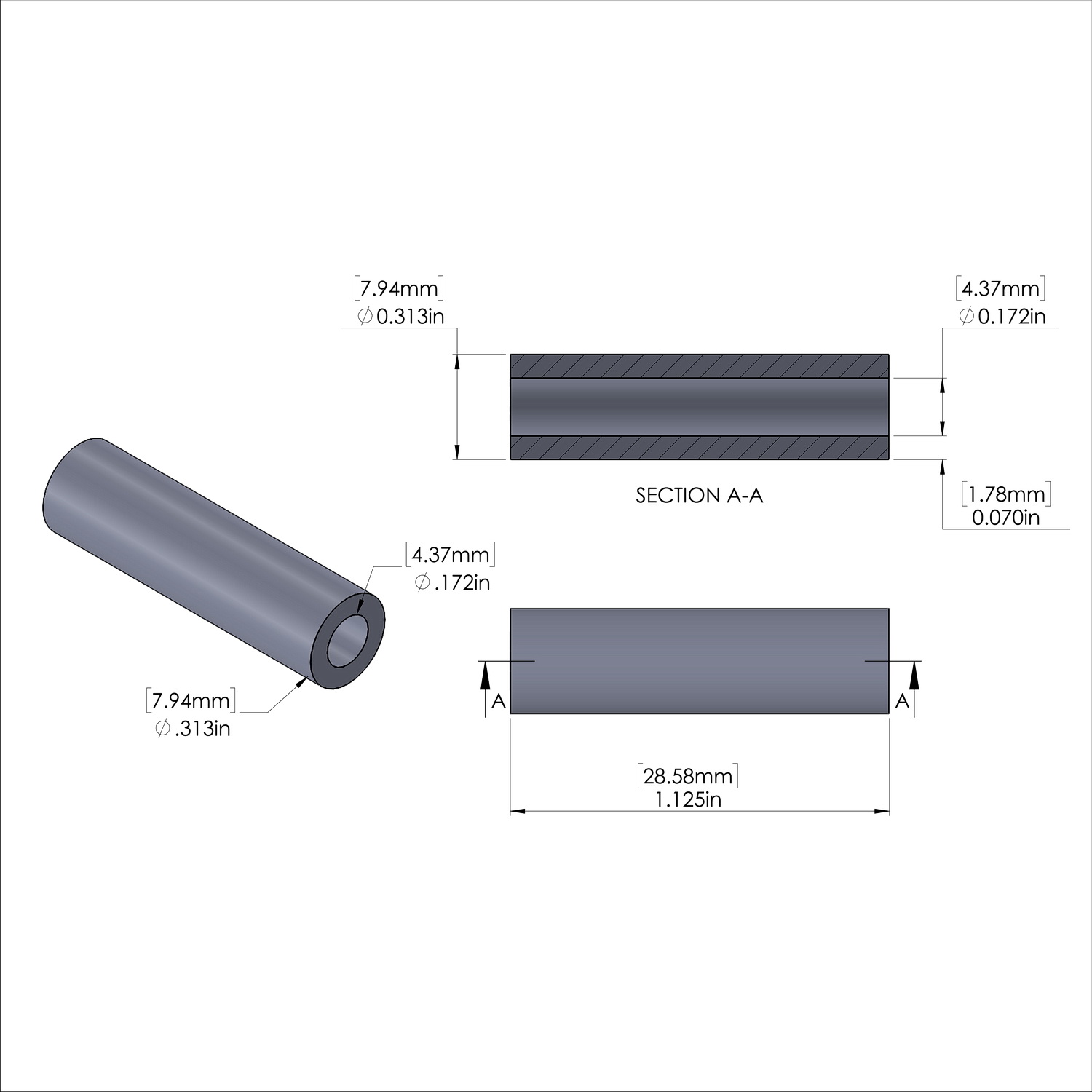

OD = 0.313'' (5/16'') 7.94mm   (Standard tolerance: +/-.005'', +/-.125mm)ID = 0.172'' 4.37mm   (Standard tolerance: +/-.003'', +/-.075mm)L = 1.125'' (1-1/8'') 28.575mm   (Standard tolerance: +/-.005'', +/-.125mm)Wall Thickness = 0.07'' 1.78mmWeight = 5.89 lbs/M 2.68 kg/K
Title:
Aluminum Spacer 5/16'' OD x .172'' ID x 1-1/8'' Long
SKU: SP31-8-72
Sku
SP31-8-72
Inside Diameter
0.172''
Outside Diameter
5/16''
Material
Aluminum
Material Grade
6061-T6
Length
1-1/8''
Outer Diameter
5/16'' (8mm)
Screw/Bolt Size #8 Screw
Outside Diameter Tolerance +/-.005'', +/-.125mm
Inside Diameter Tolerance +/-.003'', +/-.075mm
Length Standard Tolerance +/-.005'', +/-.125mm
