Aluminum Spacer 5/16'' OD x .172'' ID x 1/2'' Long

Aluminum Spacer 5/16'' OD x .172'' ID x 1/2'' Long
Title:
Aluminum Spacer 5/16'' OD x .172'' ID x 1/2'' Long
SKU: SP31-8-32
2-3 day lead time
Unit Price $0.63
Quantity Price Each (USD)
1-24
$0.63
25-249 $0.38
250-2499 $0.19
2500+ $0.06
Select Length:
Select Finish:
Title:
Aluminum Spacer 5/16'' OD x .172'' ID x 1/2'' Long
SKU: SP31-8-32
Aluminum Spacer 5/16'' OD x .172'' ID x 1/2'' Long
Description:

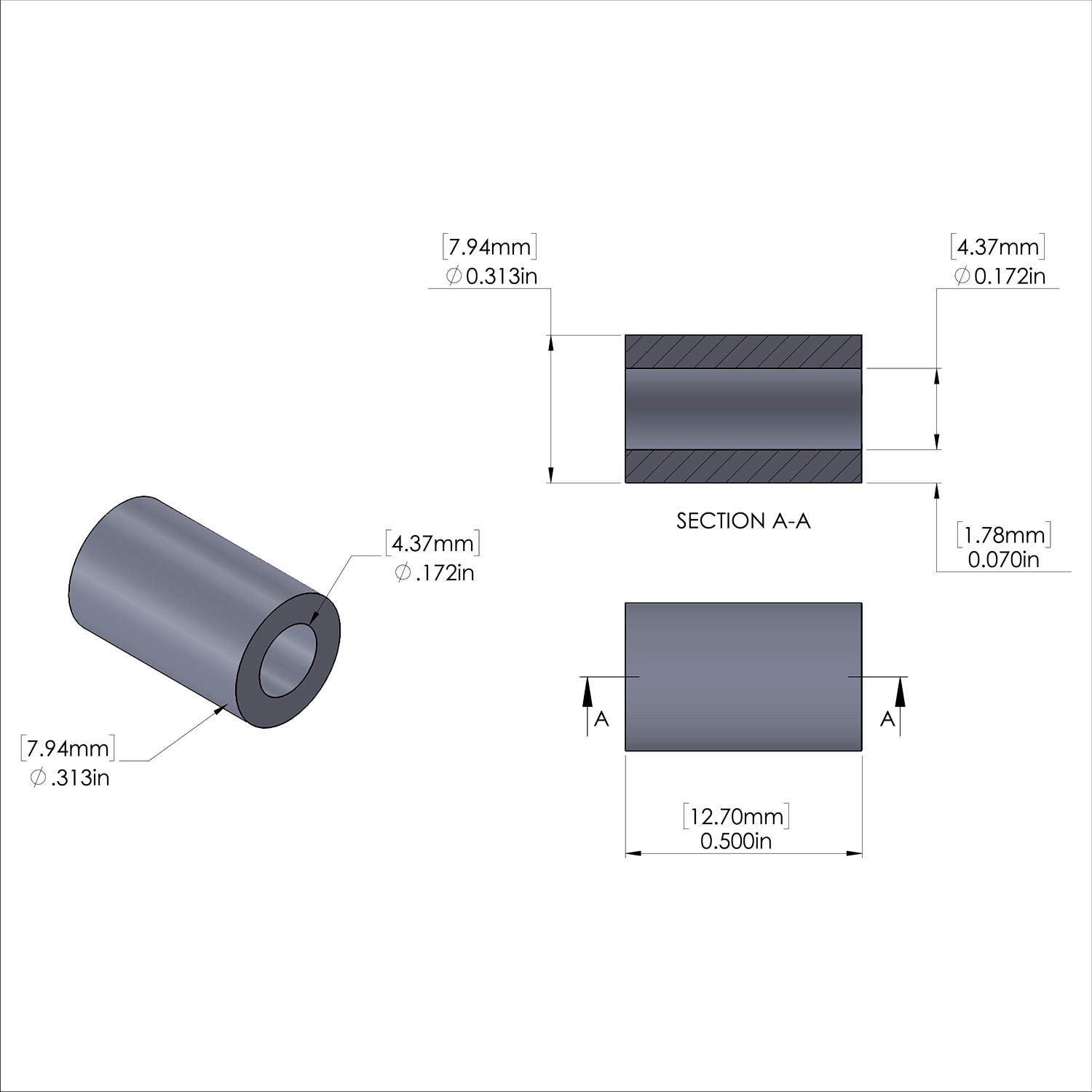

OD = 0.313'' (5/16'') 7.94mm   (Standard tolerance: +/-.005'', +/-.125mm)ID = 0.172'' 4.37mm   (Standard tolerance: +/-.003'', +/-.075mm)L = 0.5'' (1/2'') 12.7mm   (Standard tolerance: +/-.005'', +/-.125mm)Wall Thickness = 0.07'' 1.78mmWeight = 2.62 lbs/M 1.19 kg/K
Title:
Aluminum Spacer 5/16'' OD x .172'' ID x 1/2'' Long
SKU: SP31-8-32
Sku
SP31-8-32
Inside Diameter
0.172''
Outside Diameter
5/16''
Material
Aluminum
Material Grade
6061-T6
Length
1/2''
Outer Diameter
5/16'' (8mm)
Screw/Bolt Size #8 Screw
Outside Diameter Tolerance +/-.005'', +/-.125mm
Inside Diameter Tolerance +/-.003'', +/-.075mm
Length Standard Tolerance +/-.005'', +/-.125mm
