Aluminum Spacer 5/16'' OD x .172'' ID x 17/64'' Long

Aluminum Spacer 5/16'' OD x .172'' ID x 17/64'' Long
Title:
Aluminum Spacer 5/16'' OD x .172'' ID x 17/64'' Long
SKU: SP31-8-17
Unit Price$0.67
Quantity Price Each (USD)
1-24
$0.67
25-249 $0.40
250-2499 $0.20
2500+ $0.07
Select Length:
Select Material:
Select Finish:
Title:
Aluminum Spacer 5/16'' OD x .172'' ID x 17/64'' Long
SKU: SP31-8-17
Aluminum Spacer 5/16'' OD x .172'' ID x 17/64'' Long
Description:

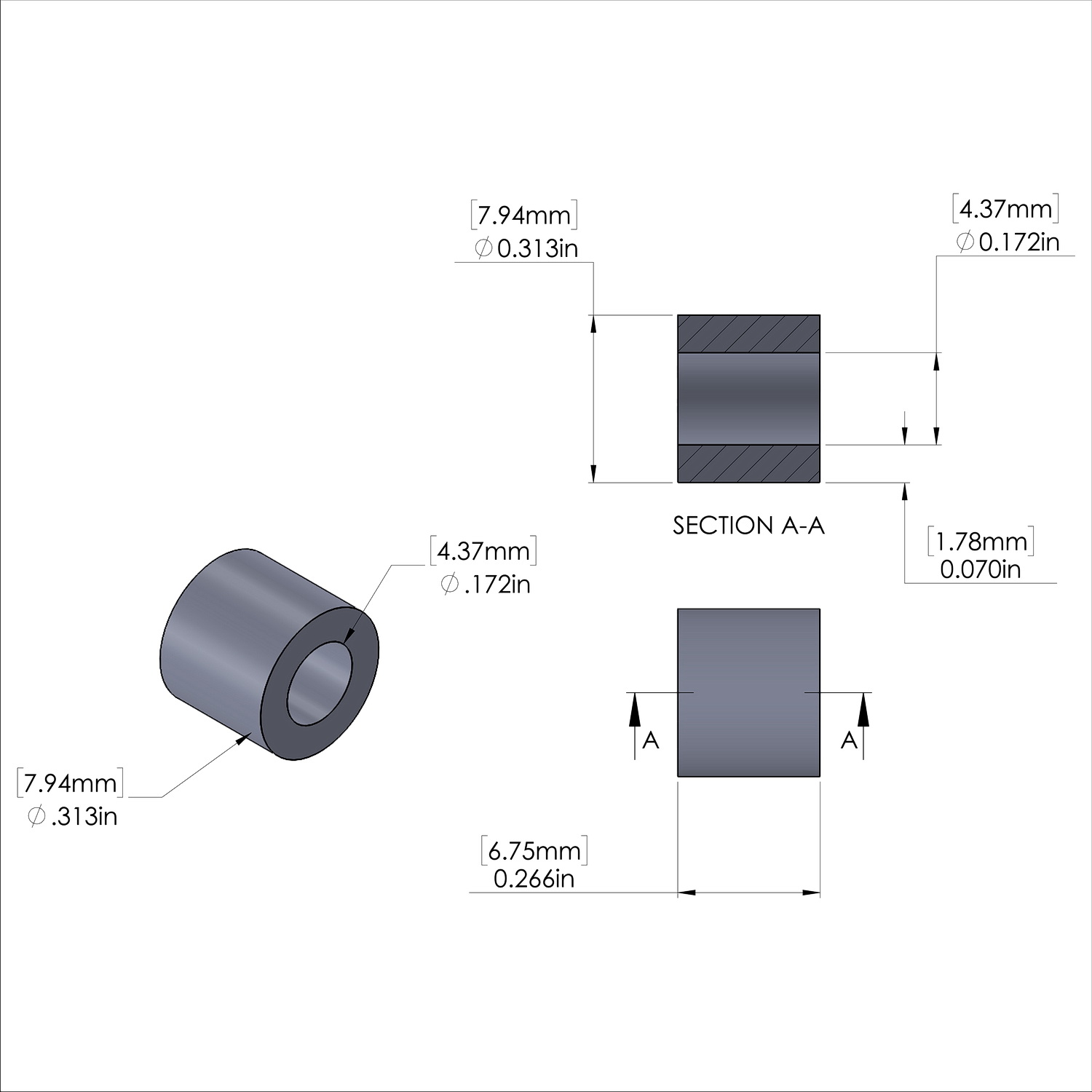

OD = 0.313'' (5/16'') 7.94mm   (Standard tolerance: +/-.005'', +/-.125mm)ID = 0.172'' 4.37mm   (Standard tolerance: +/-.003'', +/-.075mm)L = 0.266'' (17/64'') 6.746mm   (Standard tolerance: +/-.005'', +/-.125mm)Wall Thickness = 0.07'' 1.78mmWeight = 1.39 lbs/M 0.63 kg/K
Title:
Aluminum Spacer 5/16'' OD x .172'' ID x 17/64'' Long
SKU: SP31-8-17
Sku
SP31-8-17
Inside Diameter
0.172''
Outside Diameter
5/16''
Material
Aluminum
Material Grade
6061-T6
Length
17/64''
Outer Diameter
5/16'' (8mm)
Screw/Bolt Size #8 Screw
Outside Diameter Tolerance +/-.005'', +/-.125mm
Inside Diameter Tolerance +/-.003'', +/-.075mm
Length Standard Tolerance +/-.005'', +/-.125mm
