Aluminum Spacer 5/16'' OD x .172'' ID x 19/64'' Long

Aluminum Spacer 5/16'' OD x .172'' ID x 19/64'' Long
Title:
Aluminum Spacer 5/16'' OD x .172'' ID x 19/64'' Long
SKU: SP31-8-19
2-3 day lead time
Unit Price$0.69
Quantity Price Each (USD)
1-24
$0.69
25-249 $0.41
250-2499 $0.21
2500+ $0.07
Select Length:
Select Material:
Select Finish:
Title:
Aluminum Spacer 5/16'' OD x .172'' ID x 19/64'' Long
SKU: SP31-8-19
Aluminum Spacer 5/16'' OD x .172'' ID x 19/64'' Long
Description:

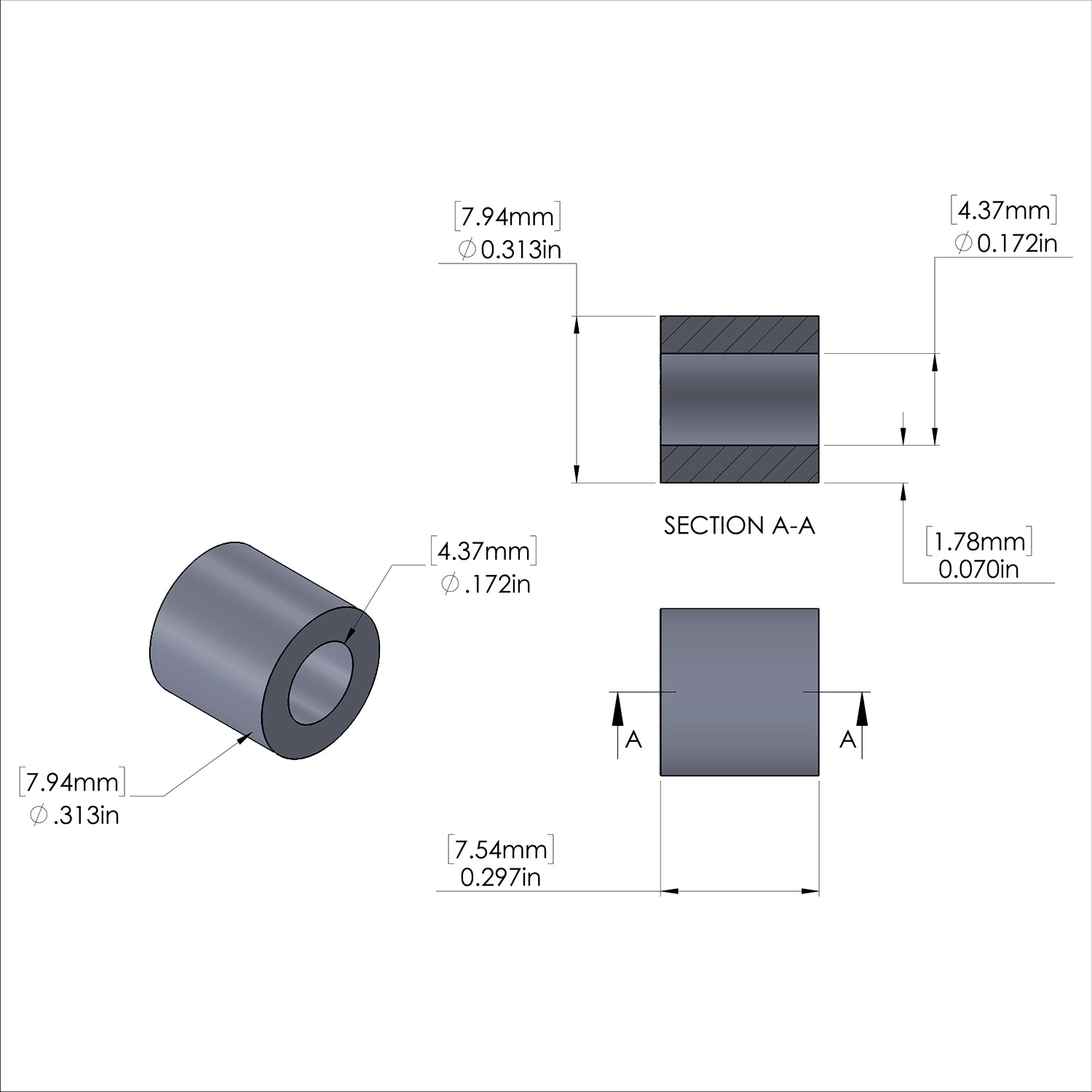

OD = 0.313'' (5/16'') 7.94mm   (Standard tolerance: +/-.005'', +/-.125mm)ID = 0.172'' 4.37mm   (Standard tolerance: +/-.003'', +/-.075mm)L = 0.297'' (19/64'') 7.544mm   (Standard tolerance: +/-.005'', +/-.125mm)Wall Thickness = 0.07'' 1.78mmWeight = 1.56 lbs/M 0.71 kg/K
Title:
Aluminum Spacer 5/16'' OD x .172'' ID x 19/64'' Long
SKU: SP31-8-19
Sku
SP31-8-19
Inside Diameter
0.172''
Outside Diameter
5/16''
Material
Aluminum
Material Grade
6061-T6
Length
19/64''
Outer Diameter
5/16'' (8mm)
Screw/Bolt Size #8 Screw
Outside Diameter Tolerance +/-.005'', +/-.125mm
Inside Diameter Tolerance +/-.003'', +/-.075mm
Length Standard Tolerance +/-.005'', +/-.125mm
