Aluminum Spacer 5/16'' OD x .172'' ID x 7/16'' Long

Aluminum Spacer 5/16'' OD x .172'' ID x 7/16'' Long, Plain Aluminum Fi

  1. Home
  2. Aluminum Spacer 5/16'' OD x .172'' ID x 7/16'' Long, Plain Aluminum Finish
Aluminum Spacer 5/16'' OD x .172'' ID x 7/16'' Long, Plain Aluminum Finish
Title:
Aluminum Spacer 5/16'' OD x .172'' ID x 7/16'' Long, Plain Aluminum Finish
SKU: SP31-8-28
2-3 day lead time
Unit Price$0.69
Quantity Price Each (USD)
1-24
$0.69
25-249 $0.48
250-2499 $0.41
2500+ $0.35
Select Length:
Select Material:
Select Finish:

Clear Anodized

Black Anodized

Plain Aluminum

Title:
Aluminum Spacer 5/16'' OD x .172'' ID x 7/16'' Long, Plain Aluminum Finish
SKU: SP31-8-28
Aluminum Spacer 5/16'' OD x .172'' ID x 7/16'' Long, Plain Aluminum Finish
Description:

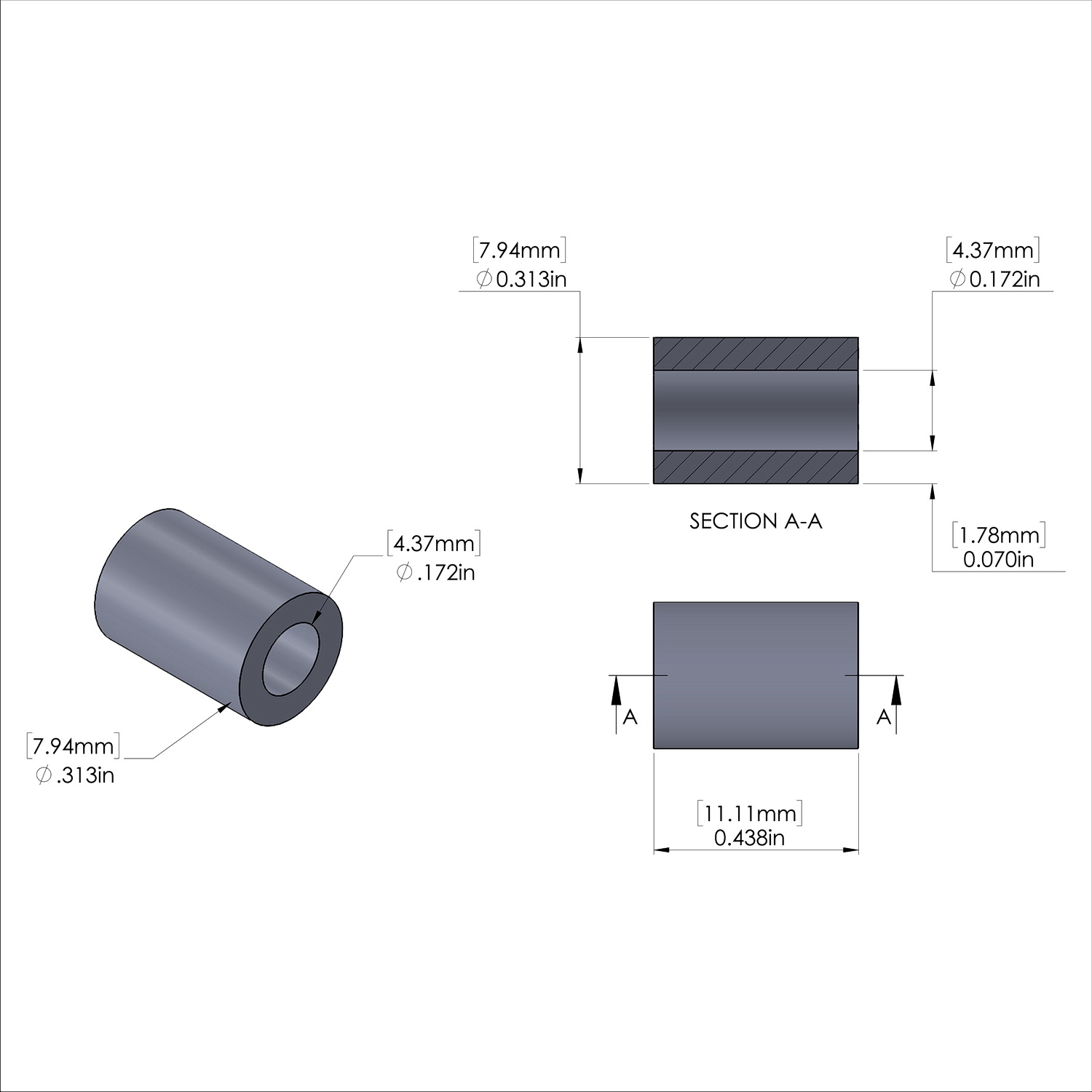

OD = 0.313'' (5/16'') 7.94mm   (Standard tolerance: +/-.005'', +/-.125mm)ID = 0.172'' 4.37mm   (Standard tolerance: +/-.003'', +/-.075mm)L = 0.438'' (7/16'') 11.113mm   (Standard tolerance: +/-.005'', +/-.125mm)Wall Thickness = 0.07'' 1.78mmWeight = 2.29 lbs/M 1.04 kg/K
Title:
Aluminum Spacer 5/16'' OD x .172'' ID x 7/16'' Long, Plain Aluminum Finish
SKU: SP31-8-28
Sku
SP31-8-28
Finish
Plain Aluminum
Material
Aluminum
Inside Diameter
0.172''
Outside Diameter
5/16''
Material Grade
6061-T6
Length
7/16''
Outer Diameter
5/16'' (8mm)
Screw/Bolt Size #8 Screw
Outside Diameter Tolerance +/-.005'', +/-.125mm
Inside Diameter Tolerance +/-.003'', +/-.075mm
Length Standard Tolerance +/-.005'', +/-.125mm
