Aluminum Spacer 5/16'' OD x .172'' ID x 9/32'' Long

Aluminum Spacer 5/16'' OD x .172'' ID x 9/32'' Long
Title:
Aluminum Spacer 5/16'' OD x .172'' ID x 9/32'' Long
SKU: SP31-8-18
2-3 day lead time
Unit Price$0.60
Quantity Price Each (USD)
1-24
$0.60
25-249 $0.36
250-2499 $0.18
2500+ $0.06
Select Length:
Select Material:
Select Finish:
Title:
Aluminum Spacer 5/16'' OD x .172'' ID x 9/32'' Long
SKU: SP31-8-18
Aluminum Spacer 5/16'' OD x .172'' ID x 9/32'' Long
Description:

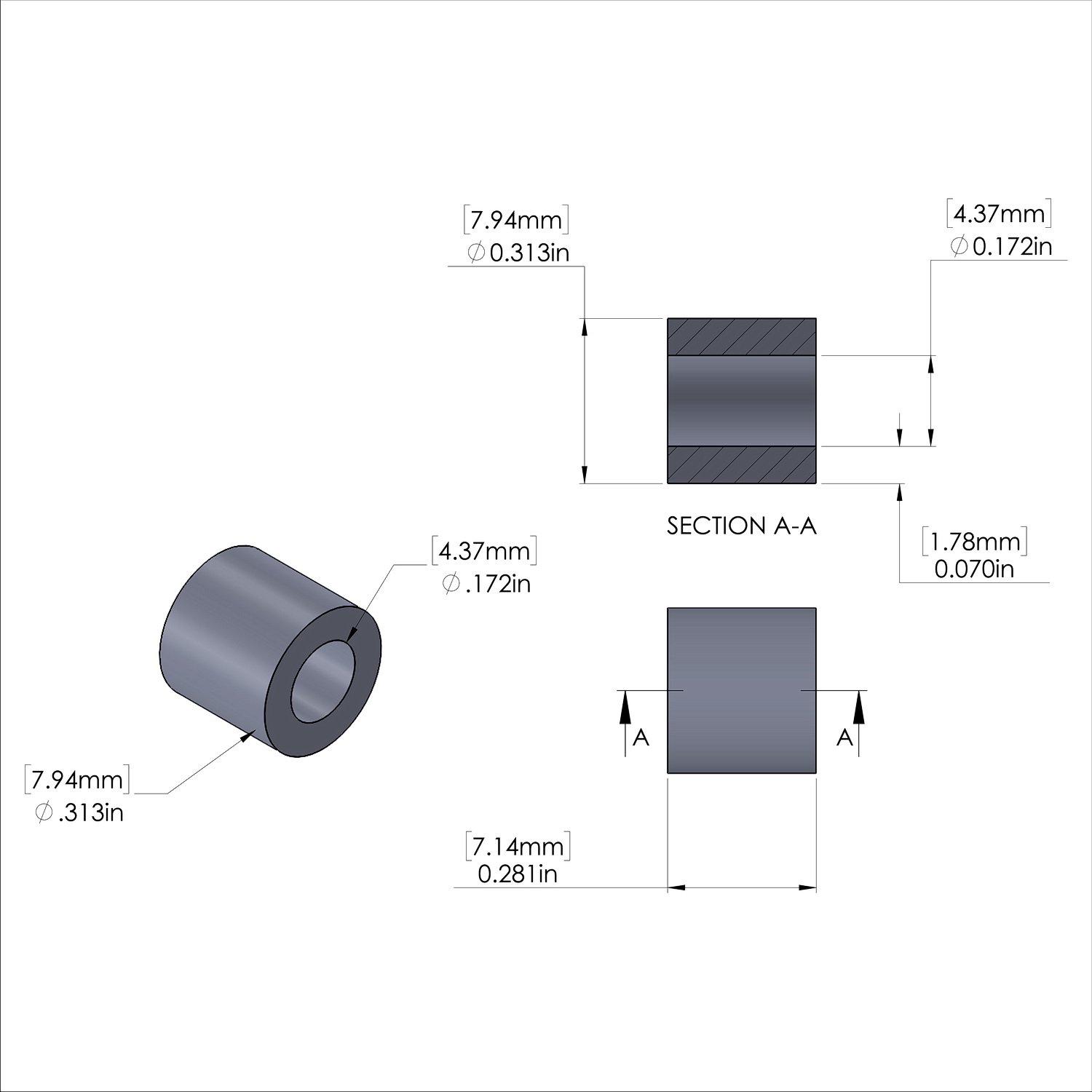

OD = 0.313'' (5/16'') 7.94mm   (Standard tolerance: +/-.005'', +/-.125mm)ID = 0.172'' 4.37mm   (Standard tolerance: +/-.003'', +/-.075mm)L = 0.281'' (9/32'') 7.137mm   (Standard tolerance: +/-.005'', +/-.125mm)Wall Thickness = 0.07'' 1.78mmWeight = 1.47 lbs/M 0.67 kg/K
Title:
Aluminum Spacer 5/16'' OD x .172'' ID x 9/32'' Long
SKU: SP31-8-18
Sku
SP31-8-18
Inside Diameter
0.172''
Outside Diameter
5/16''
Material
Aluminum
Material Grade
6061-T6
Length
9/32''
Outer Diameter
5/16'' (8mm)
Screw/Bolt Size #8 Screw
Outside Diameter Tolerance +/-.005'', +/-.125mm
Inside Diameter Tolerance +/-.003'', +/-.075mm
Length Standard Tolerance +/-.005'', +/-.125mm
