Aluminum Spacer 5/16'' OD x .192'' ID x 1-1.031'' Long

Aluminum Spacer 5/16'' OD x .192'' ID x 1-1.031'' Long, Plain Aluminum

  1. Home
  2. Aluminum Spacer 5/16'' OD x .192'' ID x 1-1.031'' Long, Plain Aluminum Finish
Aluminum Spacer 5/16'' OD x .192'' ID x 1-1.031'' Long, Plain Aluminum Finish
Title:
Aluminum Spacer 5/16'' OD x .192'' ID x 1-1.031'' Long, Plain Aluminum Finish
SKU: SP31-10-66
2-3 day lead time
Unit Price$1.10
Quantity Price Each (USD)
1-24
$1.10
25-249 $0.77
250-2499 $0.66
2500+ $0.55
Select Length:
Select Material:
Select Finish:

Plain Aluminum

Title:
Aluminum Spacer 5/16'' OD x .192'' ID x 1-1.031'' Long, Plain Aluminum Finish
SKU: SP31-10-66
Aluminum Spacer 5/16'' OD x .192'' ID x 1-1.031'' Long, Plain Aluminum Finish
Description:

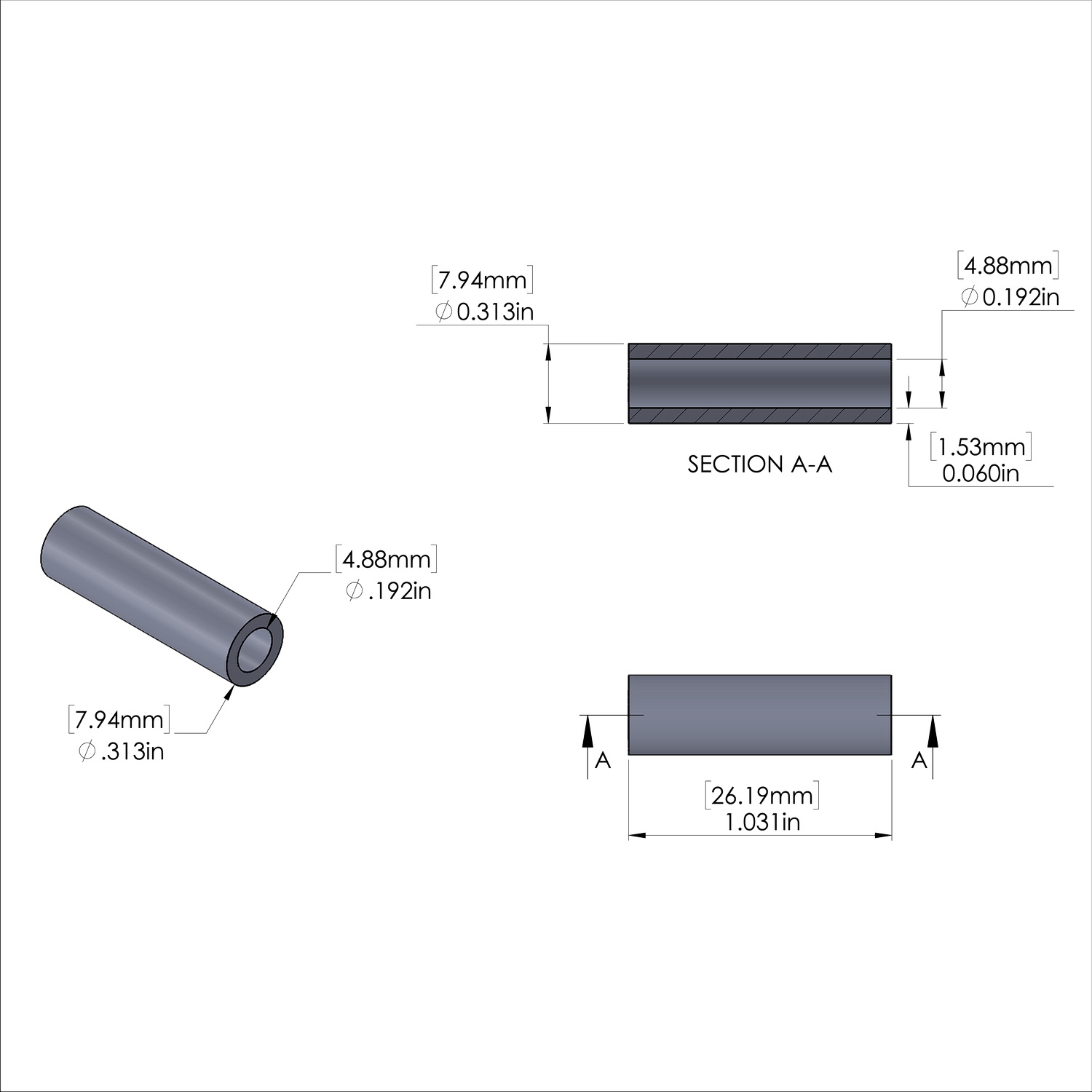

OD = 0.313'' (5/16'') 7.94mm   (Standard tolerance: +/-.005'', +/-.125mm)ID = 0.192'' 4.92mm   (Standard tolerance: +/-.003'', +/-.075mm)L = 1.031'' (1-1/32'') 26.187mm   (Standard tolerance: +/-.005'', +/-.125mm)Wall Thickness = 0.06'' 1.53mmWeight = 4.82 lbs/M 2.19 kg/K
Title:
Aluminum Spacer 5/16'' OD x .192'' ID x 1-1.031'' Long, Plain Aluminum Finish
SKU: SP31-10-66
Sku
SP31-10-66
Finish
Plain Aluminum
Material
Aluminum
Inside Diameter
0.192''
Outside Diameter
5/16''
Material Grade
6061-T6
Length
1-1.031''
Outer Diameter
5/16'' (8mm)
Screw/Bolt Size #10 Screw
Outside Diameter Tolerance +/-.005'', +/-.125mm
Inside Diameter Tolerance +/-.003'', +/-.075mm
Length Standard Tolerance +/-.005'', +/-.125mm
