Aluminum Spacer 5/16'' OD x .192'' ID x 1-1/16'' Long

Aluminum Spacer 5/16'' OD x .192'' ID x 1-1/16'' Long
Title:
Aluminum Spacer 5/16'' OD x .192'' ID x 1-1/16'' Long
SKU: SP31-10-68
2-3 day lead time
Unit Price$1.26
Quantity Price Each (USD)
1-24
$1.26
25-249 $0.76
250-2499 $0.38
2500+ $0.13
Select Length:
Select Material:
Select Finish:
Title:
Aluminum Spacer 5/16'' OD x .192'' ID x 1-1/16'' Long
SKU: SP31-10-68
Aluminum Spacer 5/16'' OD x .192'' ID x 1-1/16'' Long
Description:

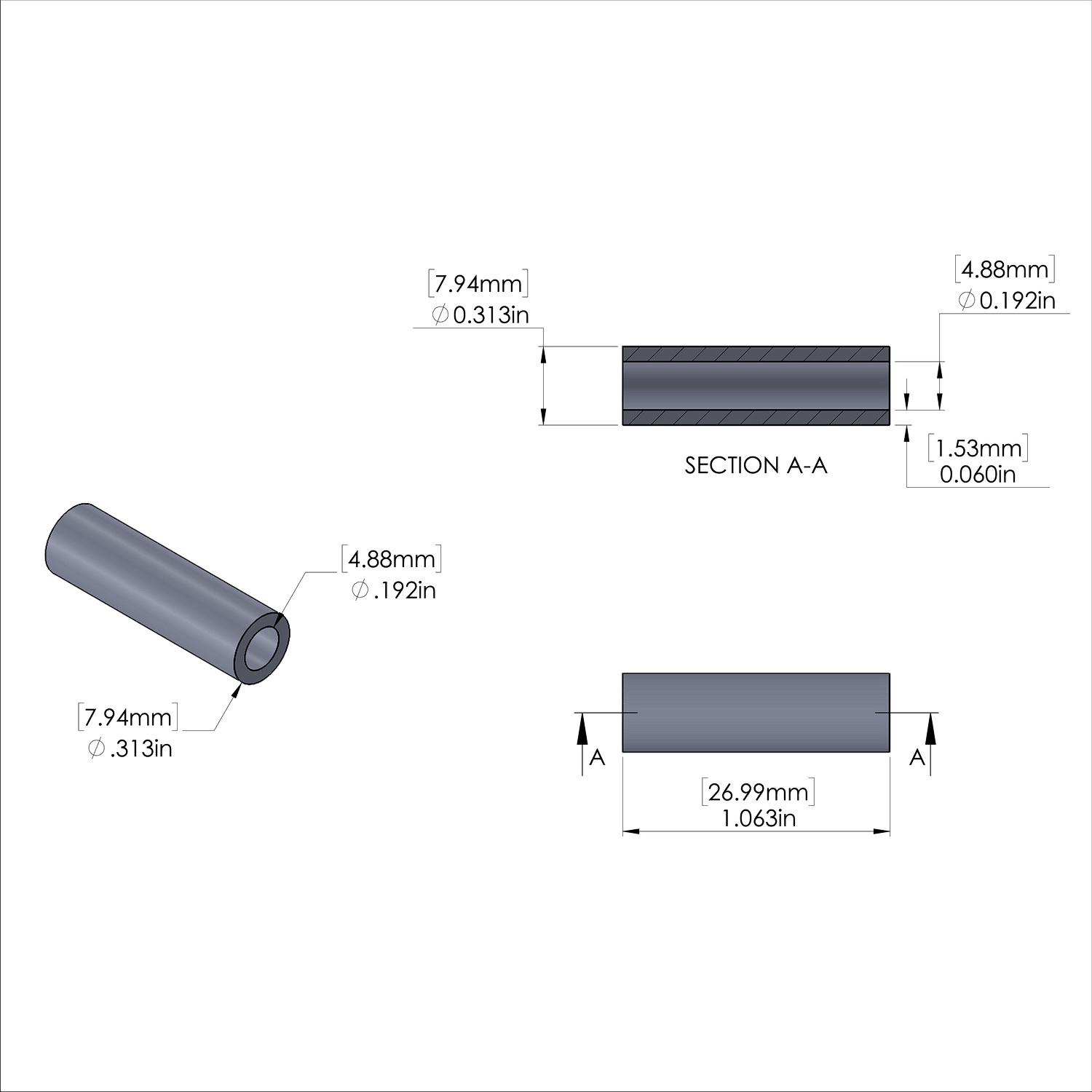

OD = 0.313'' (5/16'') 7.94mm   (Standard tolerance: +/-.005'', +/-.125mm)ID = 0.192'' 4.92mm   (Standard tolerance: +/-.003'', +/-.075mm)L = 1.063'' (1-1/16'') 26.988mm   (Standard tolerance: +/-.005'', +/-.125mm)Wall Thickness = 0.06'' 1.53mmWeight = 4.97 lbs/M 2.26 kg/K
Title:
Aluminum Spacer 5/16'' OD x .192'' ID x 1-1/16'' Long
SKU: SP31-10-68
Sku
SP31-10-68
Inside Diameter
0.192''
Outside Diameter
5/16''
Material
Aluminum
Material Grade
6061-T6
Length
1-1/16''
Outer Diameter
5/16'' (8mm)
Screw/Bolt Size #10 Screw
Outside Diameter Tolerance +/-.005'', +/-.125mm
Inside Diameter Tolerance +/-.003'', +/-.075mm
Length Standard Tolerance +/-.005'', +/-.125mm
