Aluminum Spacer 5/16'' OD x .192'' ID x 1-3/16'' Long

Aluminum Spacer 5/16'' OD x .192'' ID x 1-3/16'' Long, Plain Aluminum

  1. Home
  2. Aluminum Spacer 5/16'' OD x .192'' ID x 1-3/16'' Long, Plain Aluminum Finish
Aluminum Spacer 5/16'' OD x .192'' ID x 1-3/16'' Long, Plain Aluminum Finish
Title:
Aluminum Spacer 5/16'' OD x .192'' ID x 1-3/16'' Long, Plain Aluminum Finish
SKU: SP31-10-76
2-3 day lead time
Unit Price$1.58
Quantity Price Each (USD)
1-24
$1.58
25-249 $1.11
250-2499 $0.95
2500+ $0.79
Select Length:
Select Material:
Select Finish:

Black Anodized

Plain Aluminum

Title:
Aluminum Spacer 5/16'' OD x .192'' ID x 1-3/16'' Long, Plain Aluminum Finish
SKU: SP31-10-76
Aluminum Spacer 5/16'' OD x .192'' ID x 1-3/16'' Long, Plain Aluminum Finish
Description:

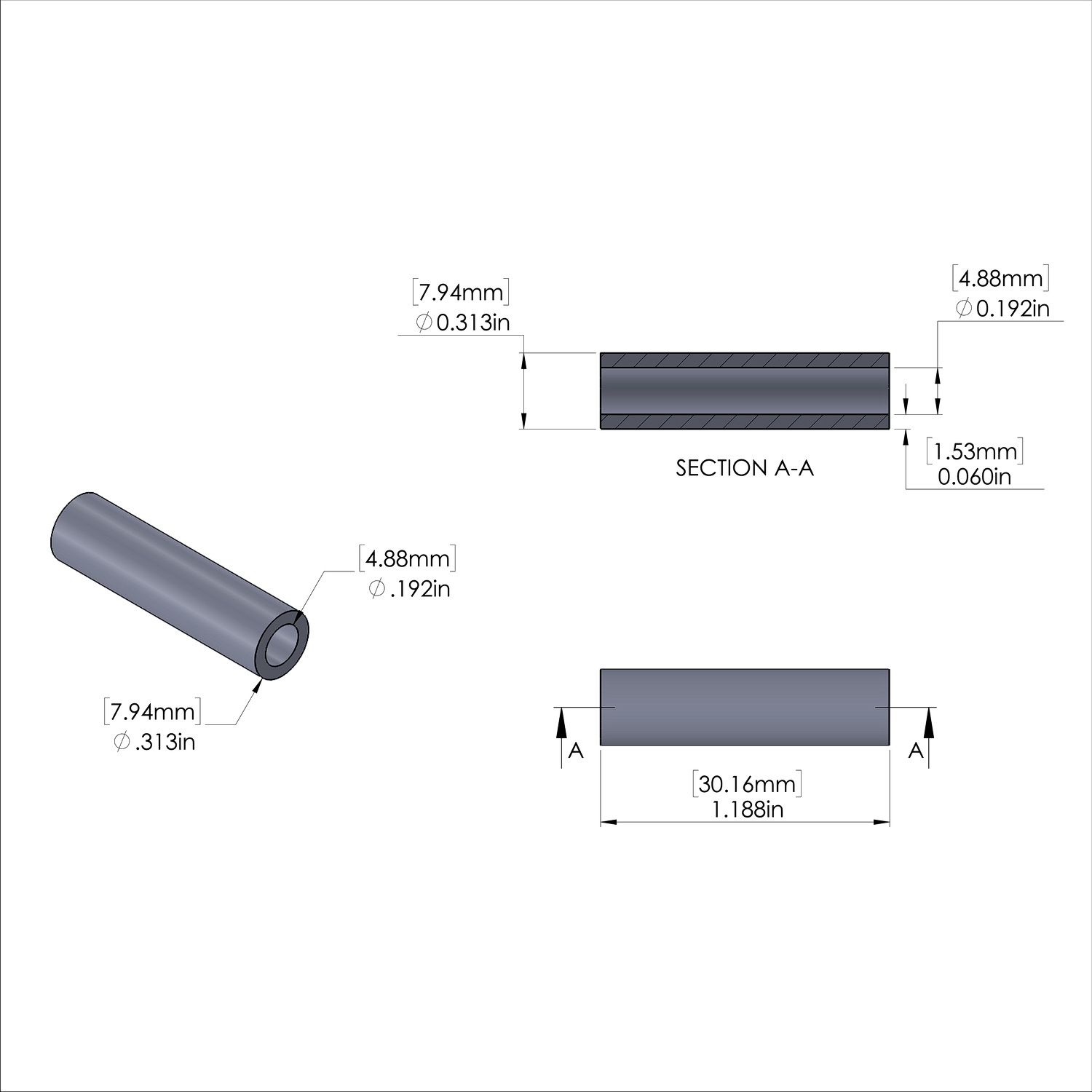

OD = 0.313'' (5/16'') 7.94mm   (Standard tolerance: +/-.005'', +/-.125mm)ID = 0.192'' 4.92mm   (Standard tolerance: +/-.003'', +/-.075mm)L = 1.188'' (1-3/16'') 30.163mm   (Standard tolerance: +/-.005'', +/-.125mm)Wall Thickness = 0.06'' 1.53mmWeight = 5.56 lbs/M 2.52 kg/K
Title:
Aluminum Spacer 5/16'' OD x .192'' ID x 1-3/16'' Long, Plain Aluminum Finish
SKU: SP31-10-76
Sku
SP31-10-76
Finish
Plain Aluminum
Material
Aluminum
Inside Diameter
0.192''
Outside Diameter
5/16''
Material Grade
6061-T6
Length
1-3/16''
Outer Diameter
5/16'' (8mm)
Screw/Bolt Size #10 Screw
Outside Diameter Tolerance +/-.005'', +/-.125mm
Inside Diameter Tolerance +/-.003'', +/-.075mm
Length Standard Tolerance +/-.005'', +/-.125mm
