Aluminum Spacer 5/16'' OD x .192'' ID x 11/32'' Long

Aluminum Spacer 5/16'' OD x .192'' ID x 11/32'' Long
Title:
Aluminum Spacer 5/16'' OD x .192'' ID x 11/32'' Long
SKU: SP31-10-22
2-3 day lead time
Unit Price$0.64
Quantity Price Each (USD)
1-24
$0.64
25-249 $0.38
250-2499 $0.19
2500+ $0.06
Select Length:
Select Material:
Select Finish:
Title:
Aluminum Spacer 5/16'' OD x .192'' ID x 11/32'' Long
SKU: SP31-10-22
Aluminum Spacer 5/16'' OD x .192'' ID x 11/32'' Long
Description:

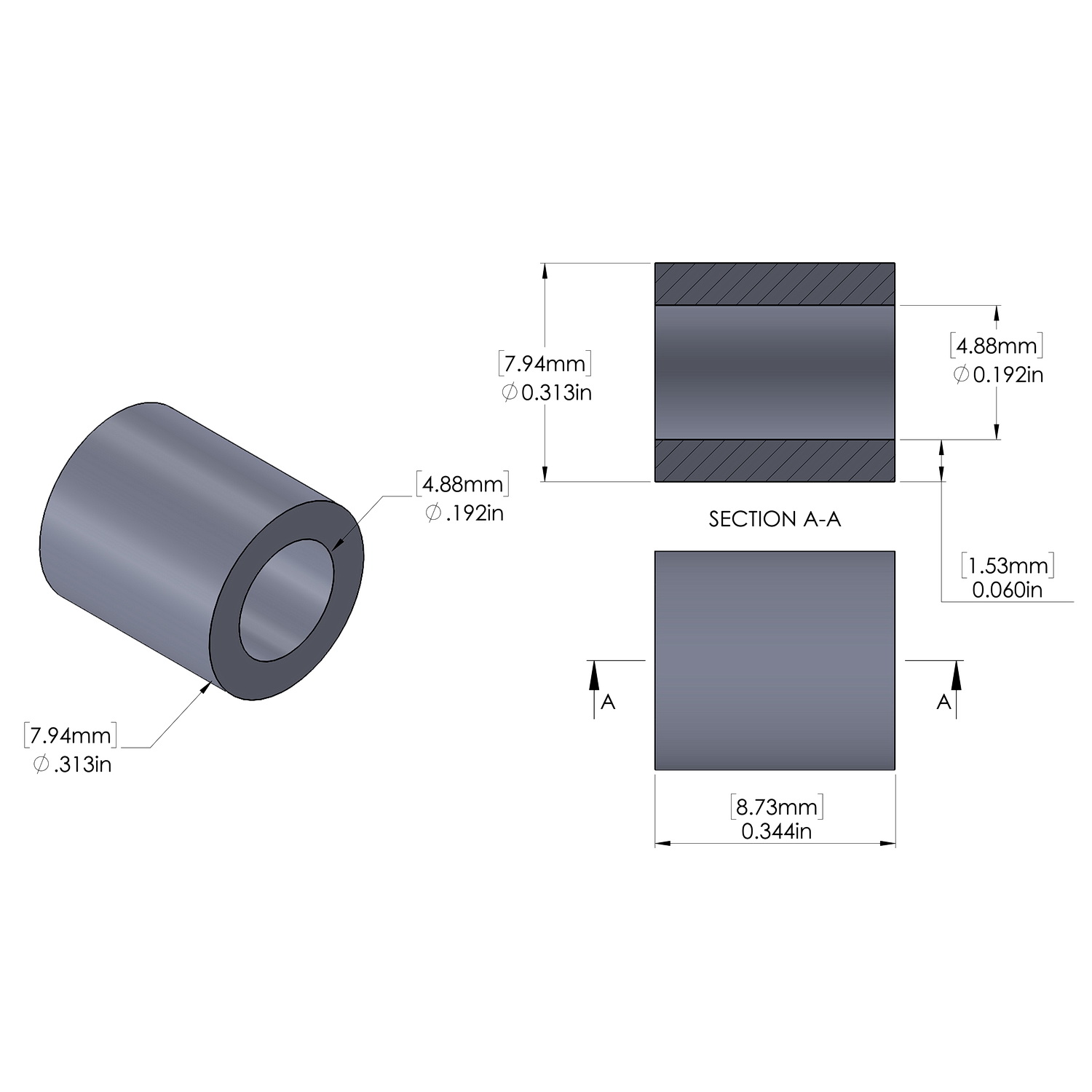

OD = 0.313'' (5/16'') 7.94mm   (Standard tolerance: +/-.005'', +/-.125mm)ID = 0.192'' 4.92mm   (Standard tolerance: +/-.003'', +/-.075mm)L = 0.344'' (11/32'') 8.738mm   (Standard tolerance: +/-.005'', +/-.125mm)Wall Thickness = 0.06'' 1.53mmWeight = 1.61 lbs/M 0.73 kg/K
Title:
Aluminum Spacer 5/16'' OD x .192'' ID x 11/32'' Long
SKU: SP31-10-22
Sku
SP31-10-22
Inside Diameter
0.192''
Outside Diameter
5/16''
Material
Aluminum
Material Grade
6061-T6
Length
11/32''
Outer Diameter
5/16'' (8mm)
Screw/Bolt Size #10 Screw
Outside Diameter Tolerance +/-.005'', +/-.125mm
Inside Diameter Tolerance +/-.003'', +/-.075mm
Length Standard Tolerance +/-.005'', +/-.125mm
