Aluminum Spacer 5/16'' OD x .192'' ID x 3/4'' Long

Aluminum Spacer 5/16'' OD x .192'' ID x 3/4'' Long
Title:
Aluminum Spacer 5/16'' OD x .192'' ID x 3/4'' Long
SKU: SP31-10-48
2-3 day lead time
Unit Price$0.75
Quantity Price Each (USD)
1-24
$0.75
25-249 $0.45
250-2499 $0.23
2500+ $0.07
Select Length:
Select Material:
Select Finish:
Title:
Aluminum Spacer 5/16'' OD x .192'' ID x 3/4'' Long
SKU: SP31-10-48
Aluminum Spacer 5/16'' OD x .192'' ID x 3/4'' Long

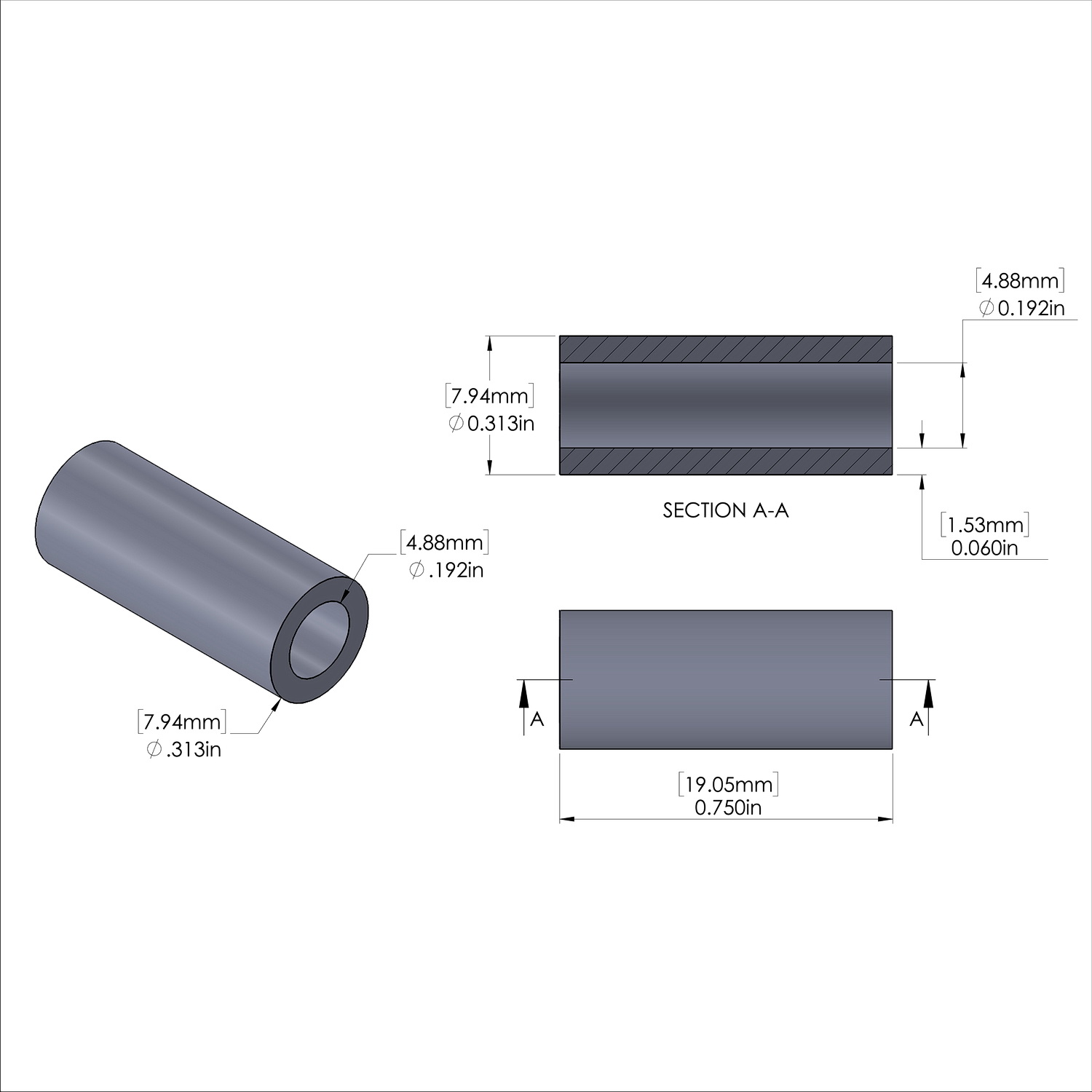

Description:
OD = 0.313'' (5/16'') 7.94mm   (Standard tolerance: +/-.005'', +/-.125mm)ID = 0.192'' 4.92mm   (Standard tolerance: +/-.003'', +/-.075mm)L = 0.75'' (3/4'') 19.05mm   (Standard tolerance: +/-.005'', +/-.125mm)Wall Thickness = 0.06'' 1.53mmWeight = 3.51 lbs/M 1.59 kg/K
Title:
Aluminum Spacer 5/16'' OD x .192'' ID x 3/4'' Long
SKU: SP31-10-48
Sku
SP31-10-48
Inside Diameter
0.192''
Outside Diameter
5/16''
Material
Aluminum
Material Grade
6061-T6
Length
3/4''
Outer Diameter
5/16'' (8mm)
Screw/Bolt Size #10 Screw
Outside Diameter Tolerance +/-.005'', +/-.125mm
Inside Diameter Tolerance +/-.003'', +/-.075mm
Length Standard Tolerance +/-.005'', +/-.125mm
