Aluminum Spacer 5/16'' OD x .192'' ID x 7/16'' Long
Title:
Aluminum Spacer 5/16'' OD x .192'' ID x 7/16'' Long
SKU: SP31-10-28
2-3 day lead time
Unit Price$0.66
Quantity Price Each (USD)
1-24
$0.66
25-249 $0.40
250-2499 $0.20
2500+ $0.07
Select Length:
Select Material:
Select Finish:

Black Anodized

Plain Aluminum

Title:
Aluminum Spacer 5/16'' OD x .192'' ID x 7/16'' Long
SKU: SP31-10-28
Aluminum Spacer 5/16'' OD x .192'' ID x 7/16'' Long
Description:

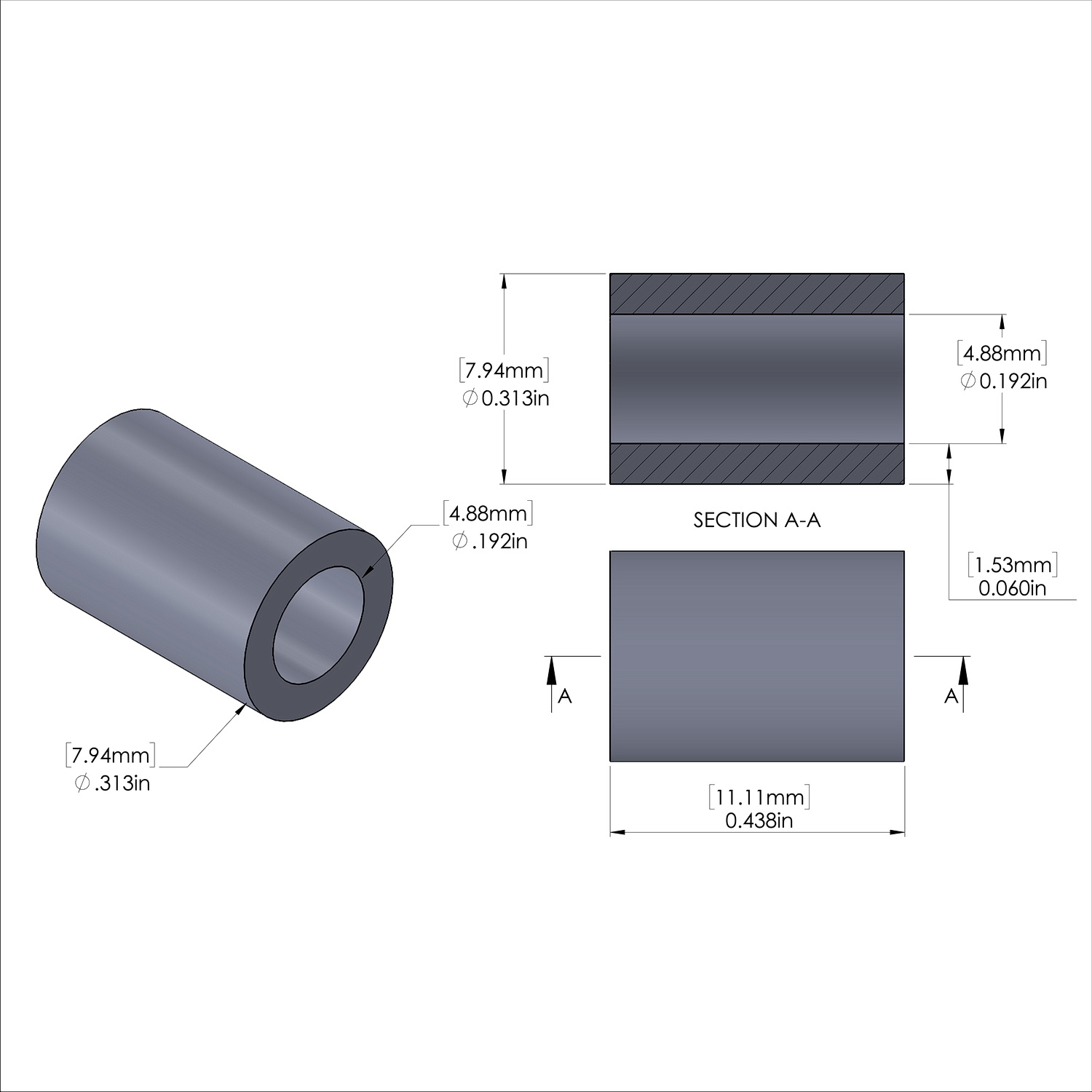

OD = 0.313'' (5/16'') 7.94mm   (Standard tolerance: +/-.005'', +/-.125mm)ID = 0.192'' 4.92mm   (Standard tolerance: +/-.003'', +/-.075mm)L = 0.438'' (7/16'') 11.113mm   (Standard tolerance: +/-.005'', +/-.125mm)Wall Thickness = 0.06'' 1.53mmWeight = 2.05 lbs/M 0.93 kg/K
Title:
Aluminum Spacer 5/16'' OD x .192'' ID x 7/16'' Long
SKU: SP31-10-28
Sku
SP31-10-28
Material
Aluminum
Inside Diameter
0.192''
Outside Diameter
5/16''
Material Grade
6061-T6
Outer Diameter
5/16'' (8mm)
Screw/Bolt Size #10 Screw
Length 7/16''
Outside Diameter Tolerance +/-.005'', +/-.125mm
Inside Diameter Tolerance +/-.003'', +/-.075mm
Length Standard Tolerance +/-.005'', +/-.125mm
