Aluminum Spacer 5/16'' OD x .192'' ID x 9mm Long

Aluminum Spacer 5/16'' OD x .192'' ID x 9mm Long
Title:
Aluminum Spacer 5/16'' OD x .192'' ID x 9mm Long
SKU: SP31-10-9M
2-3 day lead time
Unit Price$0.82
Quantity Price Each (USD)
1-24
$0.82
25-249 $0.49
250-2499 $0.25
2500+ $0.08
Select Length:
Select Finish:
Title:
Aluminum Spacer 5/16'' OD x .192'' ID x 9mm Long
SKU: SP31-10-9M
Aluminum Spacer 5/16'' OD x .192'' ID x 9mm Long
Description:

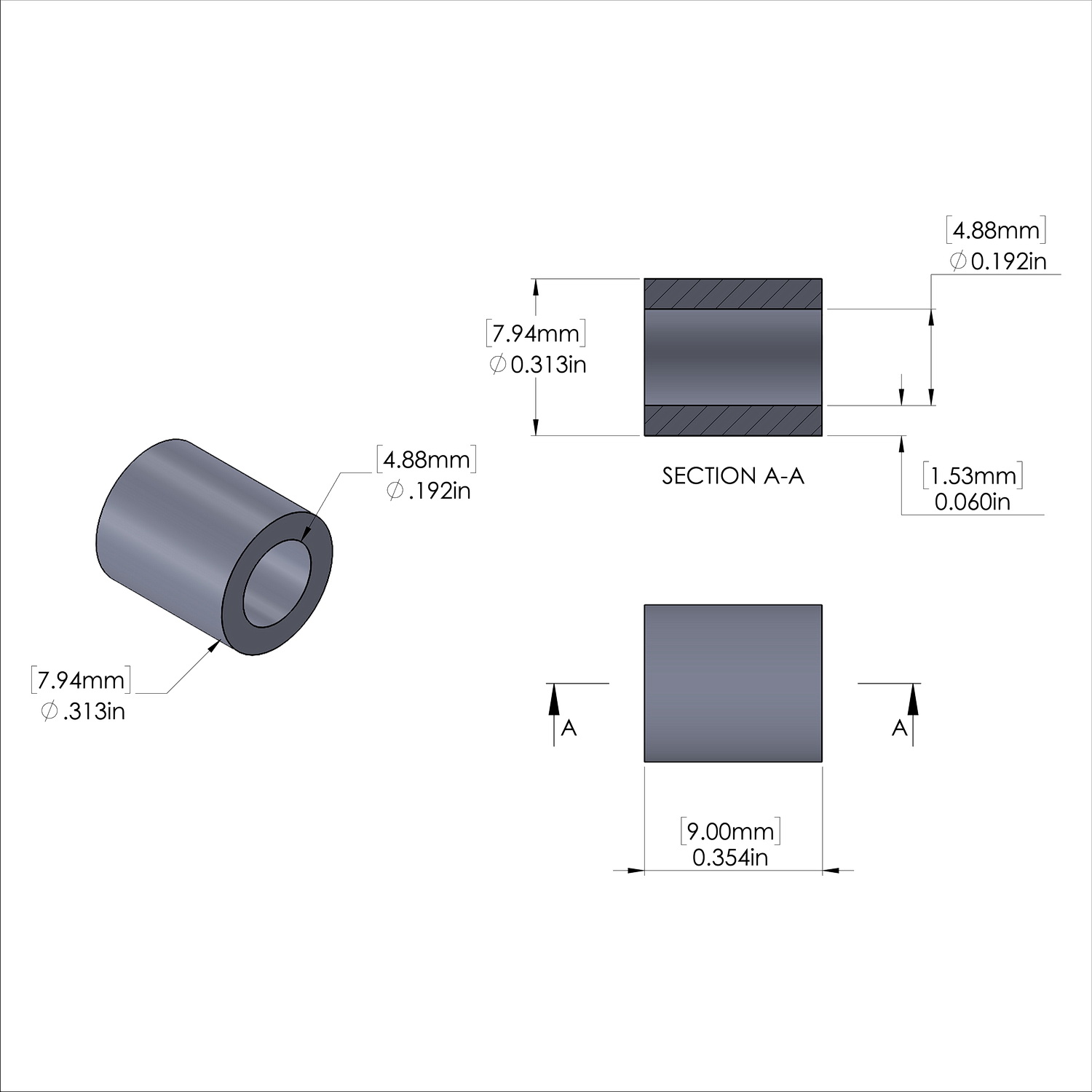

OD = 0.313'' (5/16'') 7.94mm   (Standard tolerance: +/-.005'', +/-.125mm)ID = 0.192'' 4.92mm   (Standard tolerance: +/-.003'', +/-.075mm)L =  9.0mm   (Standard tolerance: +/-.005'', +/-.125mm)Wall Thickness = 0.06'' 1.53mmWeight = 1.69 lbs/M 0.77 kg/K
Title:
Aluminum Spacer 5/16'' OD x .192'' ID x 9mm Long
SKU: SP31-10-9M
Sku
SP31-10-9M
Inside Diameter
0.192''
Outside Diameter
5/16''
Material
Aluminum
Material Grade
6061-T6
Outer Diameter
5/16'' (8mm)
Screw/Bolt Size #10 Screw
Outside Diameter Tolerance +/-.005'', +/-.125mm
Inside Diameter Tolerance +/-.003'', +/-.075mm
Length Standard Tolerance +/-.005'', +/-.125mm
